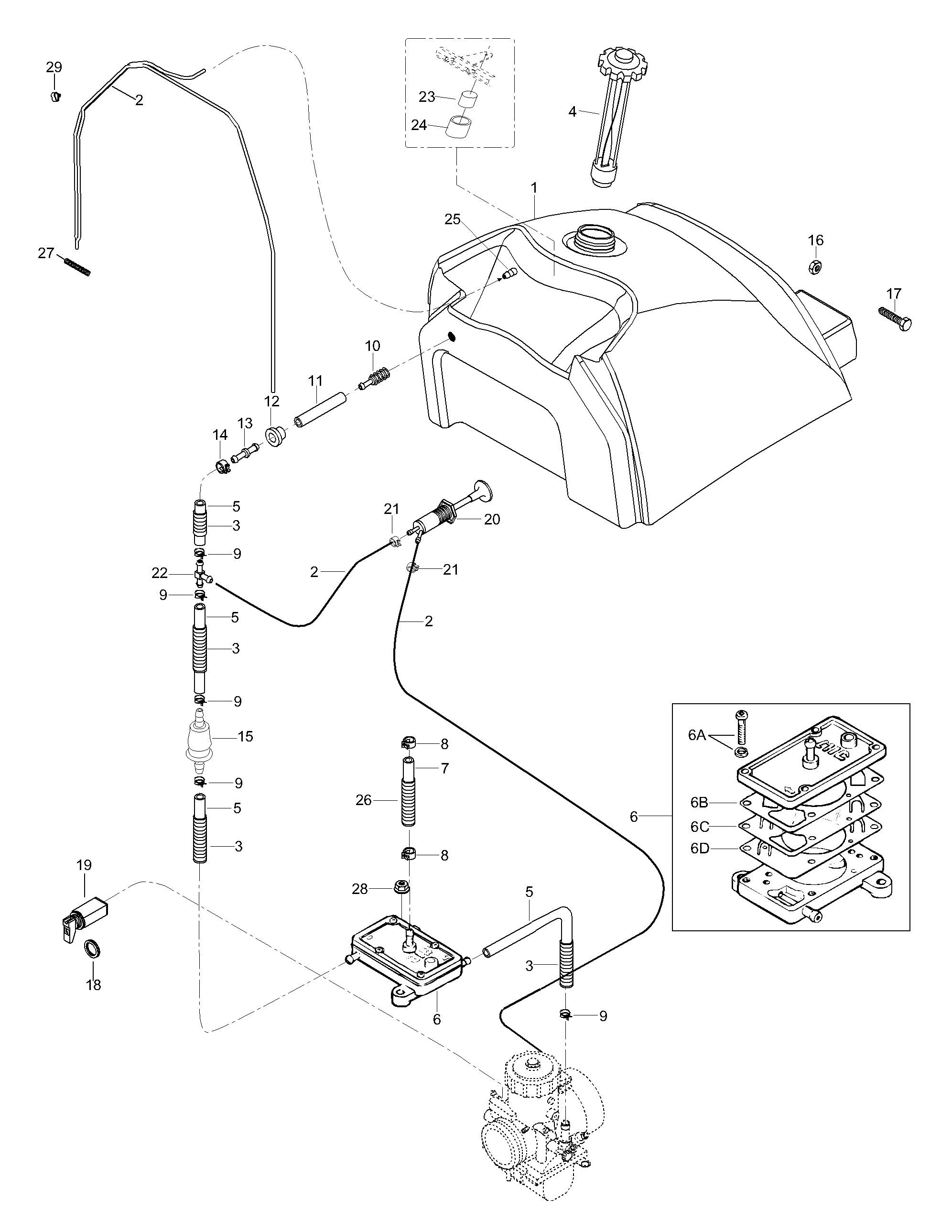

02- Fuel Tank для BRP Lynx Forest - 2004
-
№АртикулНазвание
-
15145048 Fuel tankFuel tank
-
239035 Primer hose 5/3Primer hose 5/3
-
328012 TubeTube
-
4572161200 CapCap
-
539004 Fuel line 8/5Fuel line 8/5
-
6403800800 Fuel pumpFuel pump
-
6a420841460 Screw + washerScrew + washer
-
6b190003 Gasket set. Includes items 6B thru 6DGasket set. Includes items 6B thru 6D
-
6b420831935 GasketGasket
-
6c420861137 Pump diaphgramPump diaphgram
-
6D420861135 Pumpcase gasketPumpcase gasket
-
739001 Fuel line 8/5Fuel line 8/5
-
8414420700 ClampClamp
-
927086 ClampClamp
-
10414865700 Fuel filterFuel filter
-
1139030 Fuel line 8/5Fuel line 8/5
-
12570045500 GrommetGrommet
-
13414518500 Nipple for fuellineNipple for fuelline
-
14414554800 Spring clipSpring clip
-
15414363600 Fuel filterFuel filter
-
1633200 Nut M6Nut M6
-
1740826 Screw M6 x 90Screw M6 x 90
-
18414977200 NutNut
-
19524046 Choke cableChoke cable
-
20415060500 PrimerPrimer
-
21543230 Spring clipSpring clip
-
2221067 T-pieceT-piece
-
235446811 SupportSupport
-
24605450311 Rubber damperRubber damper
-
2519051 Nipple for fuellineNipple for fuelline
-
2628015 TubeTube
-
2725006 SpringSpring
-
2833010 Nut elastic M6Nut elastic M6
-
29513032923 Clamp tubeClamp tube
