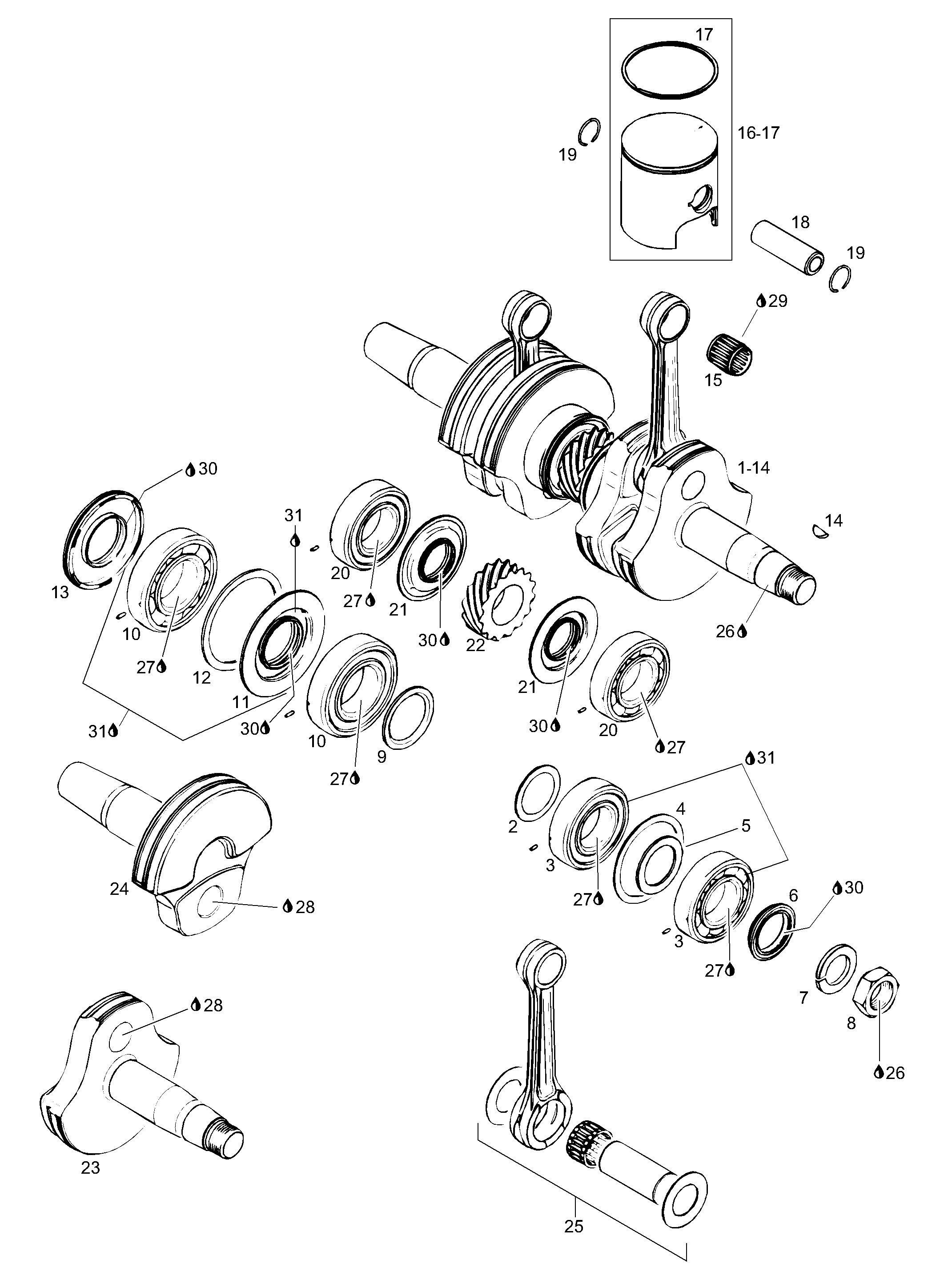

01- Crankshaft Assy для BRP Lynx Racing - 2004
-
№АртикулНазвание
-
1420888257 Crankshaft assy. Includes items 1 thru 14Crankshaft assy. Includes items 1 thru 14
-
2420827445 Distance ringDistance ring
-
3420832590 Ball bearing assyBall bearing assy
-
4420827050 Retaining diskRetaining disk
-
5420427684 Adjusting washerAdjusting washer
-
6420931790 Oil sealOil seal
-
7420945759 Lock washerLock washer
-
8420842230 Nut M22Nut M22
-
9420827760 Distance ringDistance ring
-
10420832575 Bearing 6207 assyBearing 6207 assy
-
11420931455 Oil sealOil seal
-
12420927710 Retaining diskRetaining disk
-
13420831950 Oil sealOil seal
-
14420246015 Woodruff-keyWoodruff-key
-
15420832439 Needle cageNeedle cage
-
16420888333 Piston 64.88 mm. Includes items 16 thru 17Piston 64.88 mm. Includes items 16 thru 17
-
17420815145 Semi trapez ringSemi trapez ring
-
18420916136 Piston pinPiston pin
-
19420945735 CirclipCirclip
-
20420832590 Bearing 6206 assyBearing 6206 assy
-
21420931940 Oil sealOil seal
-
22420834350 Central gear 15TCentral gear 15T
-
23420818694 Crankshaft MAG. sideCrankshaft MAG. side
-
24420818664 Crankshaft P.T.O.-sideCrankshaft P.T.O.-side
-
25420888258 Rod repair kit MAG.-sideRod repair kit MAG.-side
-
25420888259 Rod repair kit PTO.-sideRod repair kit PTO.-side
-
26420899785 Loctite 221, violet, 10ccLoctite 221, violet, 10cc
-
27420297434 Loctite anti seizeLoctite anti seize
-
28420897340 Loctite 14486, 250mlLoctite 14486, 250ml
-
29413707000 Molykote IIIMolykote III
-
30420899271 Klueber petamoKlueber petamo
-
31293550021 Isoflex grease, 50gIsoflex grease, 50g
