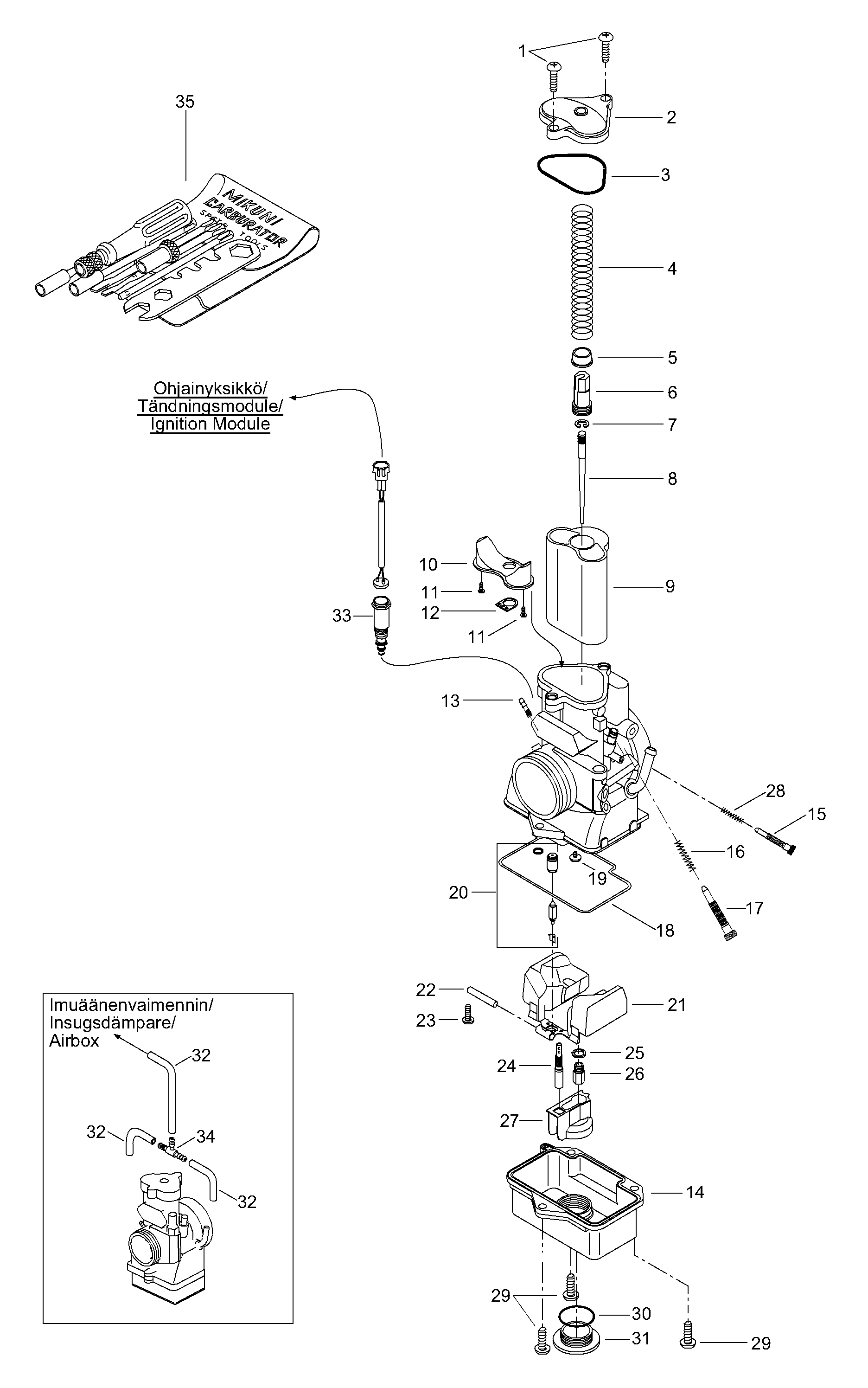

02- Carburetor для BRP Lynx Racing - 2004
-
№АртикулНазвание
-
1404138700 ScrewScrew
-
2404161857 CoverCover
-
4404161864 SpringSpring
-
5404161863 RingRing
-
6404161856 Guide holderGuide holder
-
7404152200 E-ringE-ring
-
8404161999 Jet needle 6FNY04-51-3Jet needle 6FNY04-51-3
-
9404161867 Piston valve 4.0Piston valve 4.0
-
10404161974 VenturyVentury
-
11404161852 ScrewScrew
-
12404161865 PackingPacking
-
13404153400 NippleNipple
-
15404161866 AdjusterAdjuster
-
16404161849 SpringSpring
-
17404161850 AdjusterAdjuster
-
18404161993 RingRing
-
19404161861 ScrewScrew
-
20404161868 Needle valve 1,5VNeedle valve 1,5V
-
21404161859 FloatFloat
-
22404161860 Float arm pinFloat arm pin
-
23404138600 ScrewScrew
-
24404161870 Pilot jet 25Pilot jet 25
-
25404161862 WasherWasher
-
26404101300 Main jet 320, MAGMain jet 320, MAG
-
26404101400 Main jet 330, PTO.Main jet 330, PTO.
-
27404161855 HolderHolder
-
28404132400 SpringSpring
-
29404161848 ScrewScrew
-
30404107300 RingRing
-
31404107400 Plug ScrewPlug Screw
-
32404161888 Vent tubeVent tube
-
33404161998 SolenoidSolenoid
-
34270500347 T-fittingT-fitting
-
35404112000 Tool kitTool kit
