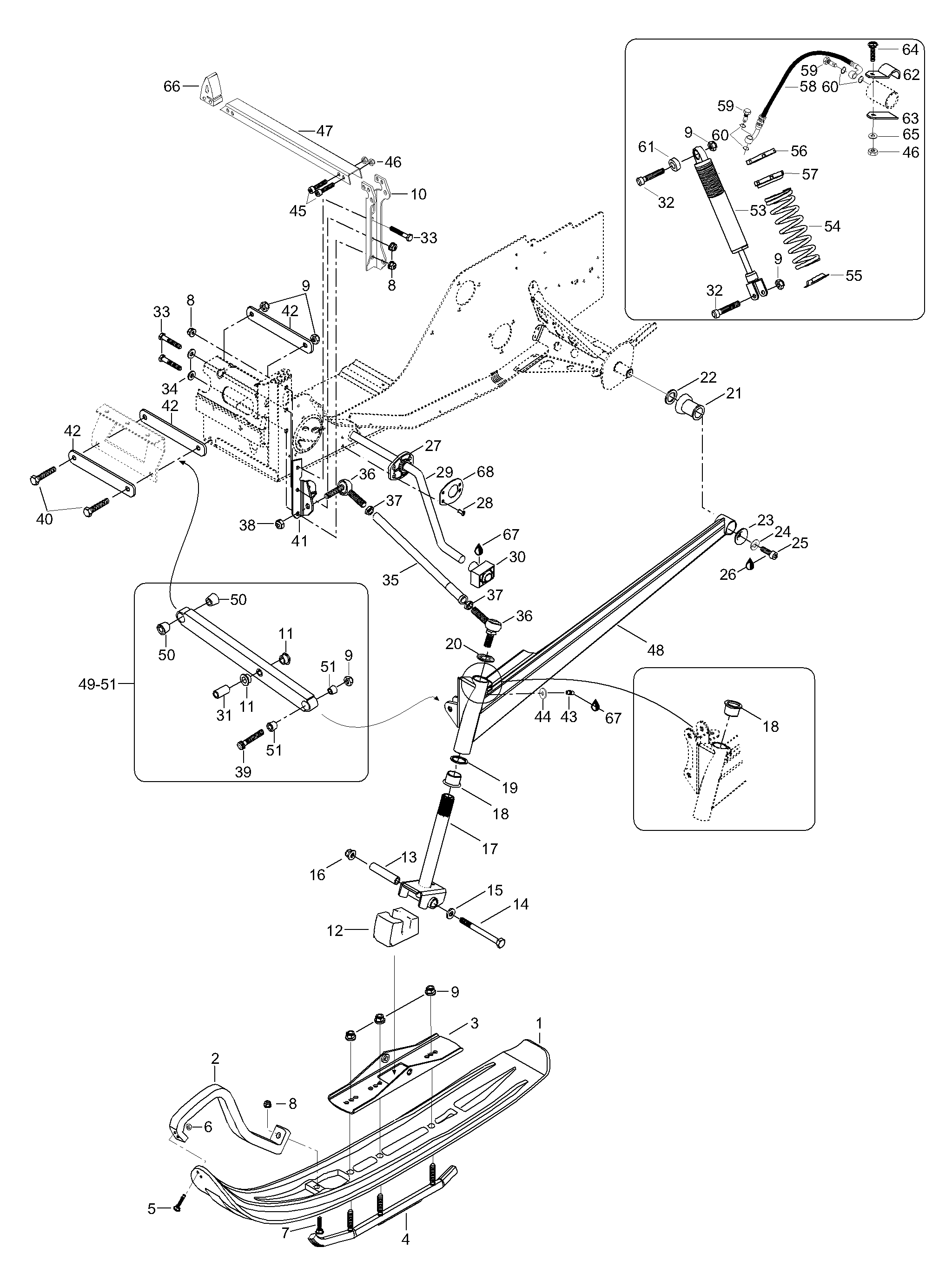

08- Front Suspension для BRP Lynx Racing - 2004
-
№АртикулНазвание
-
128002 Ski linerSki liner
-
228003 Plastic handle, redPlastic handle, red
-
3605349374 BridgeBridge
-
4605349376 RunnerRunner
-
540393 Allen screw M6 x 30Allen screw M6 x 30
-
633200 Elastic flanged nut M6Elastic flanged nut M6
-
740137 Allen screw M8 x 40Allen screw M8 x 40
-
833201 Elastic flanged nut M8Elastic flanged nut M8
-
933012 Nut elastic M10Nut elastic M10
-
105245488 Shock bracketShock bracket
-
105246395 Shock bracketShock bracket
-
1131088 BearingBearing
-
12506151233 Stopper-skiStopper-ski
-
13506133300 SpacerSpacer
-
1440814 Screw M10x110Screw M10x110
-
1520105 Washer, hardenedWasher, hardened
-
1633074 Elastic flange nut M10Elastic flange nut M10
-
17605248927 Ski legSki leg
-
18505070003 BushingBushing
-
19505070004 WasherWasher
-
2020074 Lock washerLock washer
-
21570062200 DamperDamper
-
22503146700 WasherWasher
-
23506079600 CupCup
-
2420014 Spring washerSpring washer
-
2540289 Allen screw M8 x 25Allen screw M8 x 25
-
26293800060 Loctite 243, 10mlLoctite 243, 10ml
-
27505070191 SleeveSleeve
-
2836087 RivetRivet
-
295246797 Sway barSway bar
-
30505070117 Block-joint ballBlock-joint ball
-
315441433 BushingBushing
-
3240852 Allen screw M10 x 55Allen screw M10 x 55
-
3340038 Screw M8 x 55Screw M8 x 55
-
3420104 Washer, hardenedWasher, hardened
-
355346122 Upper armUpper arm
-
3631092 Ball jointBall joint
-
3733048 Jam nut M12Jam nut M12
-
3833087 Jam nut elastic M12Jam nut elastic M12
-
3940858 Allen screw M10 x 50Allen screw M10 x 50
-
4040814 Screw M10 x 110Screw M10 x 110
-
41605349409 R.H. Upper arm bracketR.H. Upper arm bracket
-
41605349406 L.H. Upper arm bracketL.H. Upper arm bracket
-
425346112 Support plateSupport plate
-
4334011 Grease fittingGrease fitting
-
4420007 WasherWasher
-
4540345 Allen screw M6 x 40Allen screw M6 x 40
-
4633010 Nut elastic M6Nut elastic M6
-
475348108 BracketBracket
-
48605248964 R.H. Swing arm, Viper reR.H. Swing arm, Viper re
-
48605248963 L.H. Swing arm, Viper reL.H. Swing arm, Viper re
-
49605249116 Lower arm, Viper red. Includes items 49 thru 51Lower arm, Viper red. Includes items 49 thru 51
-
505447769 Inner sleeveInner sleeve
-
515447770 Outer sleeveOuter sleeve
-
52605350371 Shock assy. Includes items 52 thru 60Shock assy. Includes items 52 thru 60
-
5323188 ShockShock
-
5425050 SpringSpring
-
55230076 Guide springGuide spring
-
56230053 Adjusting ringAdjusting ring
-
57230054 Guide springGuide spring
-
58230062 HoseHose
-
59415093810 ScrewScrew
-
60415038700 O-ringO-ring
-
61230055 Rubber bushingRubber bushing
-
625446702 BracketBracket
-
635448228 BracketBracket
-
6440846 Lock screw M6 x 16Lock screw M6 x 16
-
6520009 WasherWasher
-
665348087 Rubber damperRubber damper
-
67413711500 Synthetic greaseSynthetic grease
-
68505070542 PlatePlate
