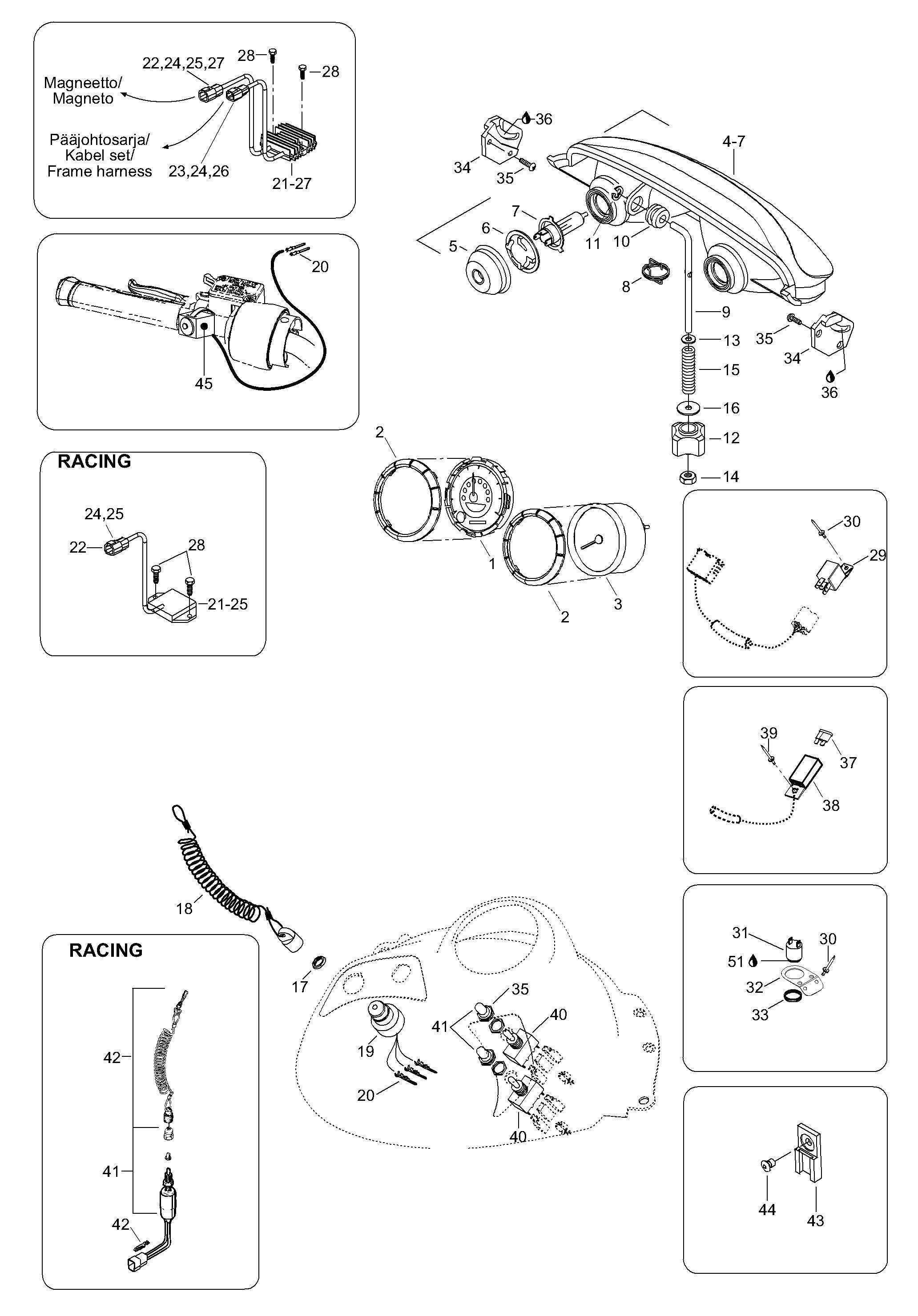

10- Electric для BRP Lynx Racing - 2004
-
№АртикулНазвание
-
1515176001 SpeedometerSpeedometer
-
2515175651 Ring gaugeRing gauge
-
3515176072 TachometerTachometer
-
4515175909 Halogen headlamp assy. Includes items 4 thru 7Halogen headlamp assy. Includes items 4 thru 7
-
5410607100 CoverCover
-
6410608300 Bulb holderBulb holder
-
7410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
85447238 SpringSpring
-
9517295800 Adjuster rodAdjuster rod
-
10415100800 GrommetGrommet
-
11732610072 Nut pushNut push
-
12515175548 HandleHandle
-
1320038 WasherWasher
-
1433010 Nut elastic M6Nut elastic M6
-
15415100600 SpringSpring
-
1620003 WasherWasher
-
2042603 Male terminalMale terminal
-
21515175655 Regulator Assy. Includes items 21 thru 25Regulator Assy. Includes items 21 thru 25
-
22278001477 Female terminal hous.Female terminal hous.
-
24515175568 Male terminalMale terminal
-
25278001478 Wedge (4)Wedge (4)
-
2840322 Screw M6 x 16Screw M6 x 16
-
34517289400 L.H. headlamp supportL.H. headlamp support
-
34517289300 R.H. headlamp supportR.H. headlamp support
-
3540177 Headlamp screwHeadlamp screw
-
36413707500 Grease tube LMZ 400 gGrease tube LMZ 400 g
-
40410107300 SwitchSwitch
-
41515175281 Rubber cover for switchRubber cover for switch
-
41544957 Emergency switch assy. Includes items 41 thru 42Emergency switch assy. Includes items 41 thru 42
-
424299163 Switch cap assySwitch cap assy
-
43270000141 ClipClip
-
4436005 RivetRivet
-
45605350897 Start-knobStart-knob
