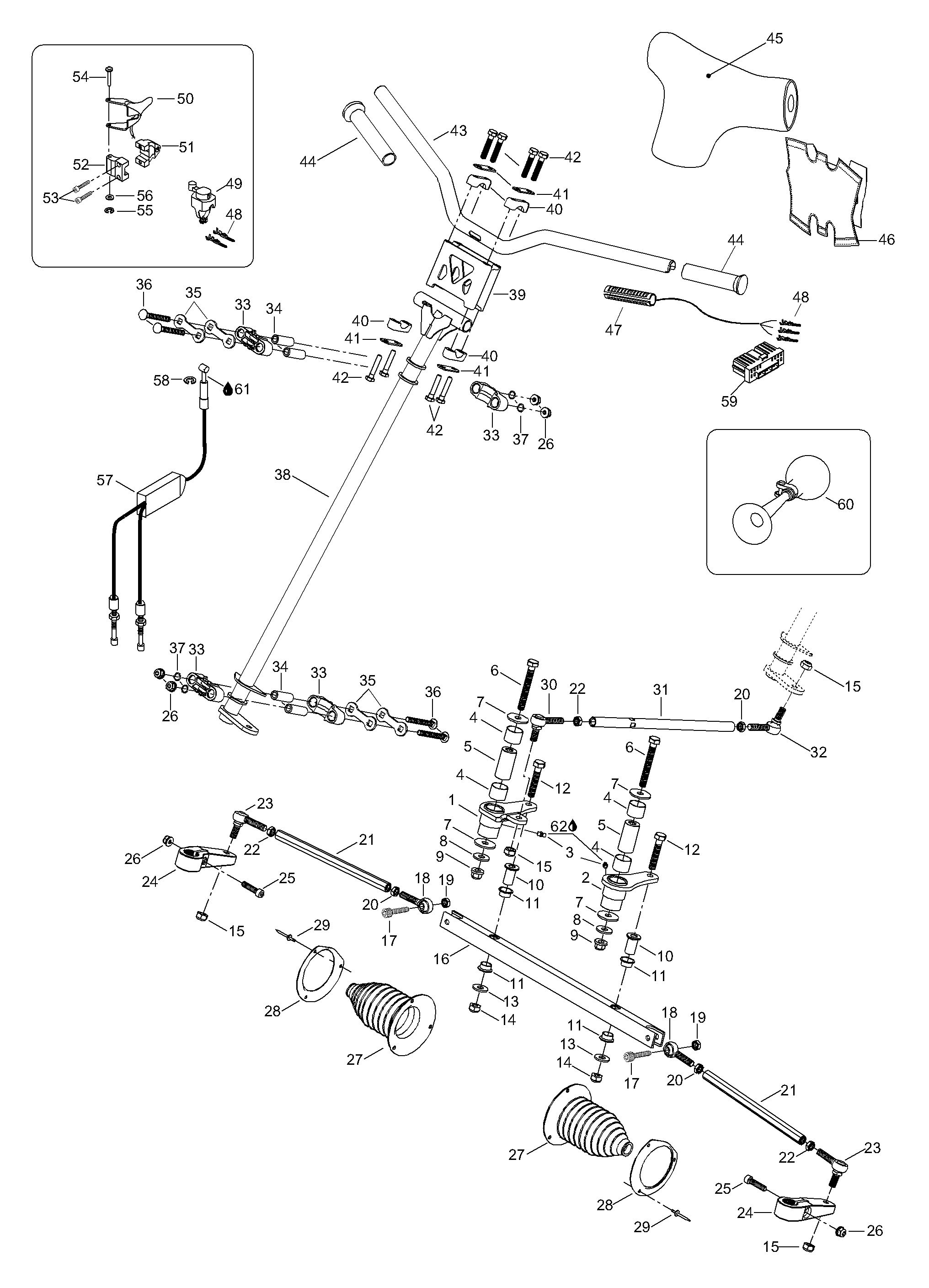

07- Steering для BRP Lynx Racing - 2004
-
№АртикулНазвание
-
1506151506 R.H. swivel armR.H. swivel arm
-
2506151623 L.H. swivel armL.H. swivel arm
-
334011 Grease FittingGrease Fitting
-
4506149900 Swivel bushingSwivel bushing
-
5506150100 Swivel-pivotSwivel-pivot
-
640229 Screw M10 x 80Screw M10 x 80
-
720080 WasherWasher
-
820101 Washer, hardenedWasher, hardened
-
933074 Elastic flanged nut M10Elastic flanged nut M10
-
10506147300 CushionCushion
-
11506150200 Swivel-bushingSwivel-bushing
-
1240018 Screw M10 x 55Screw M10 x 55
-
1320028 WasherWasher
-
1433012 Nut elastic M10Nut elastic M10
-
1533023 Nut elastic M10Nut elastic M10
-
16605348756 Bar-swivelBar-swivel
-
1740395 Allen screw M8 x 35Allen screw M8 x 35
-
18506151496 Joint ball L.H.Joint ball L.H.
-
1933011 Nut elastic M8Nut elastic M8
-
20732610011 L.H. jam nut M10L.H. jam nut M10
-
215346200 Tie RodTie Rod
-
22732610010 R.H. jam nut M10R.H. jam nut M10
-
23506151491 Joint ballJoint ball
-
24506145800 R.H. steering armR.H. steering arm
-
24506145900 L.H. steering armL.H. steering arm
-
2540843 Allen screw M8 x 35Allen screw M8 x 35
-
2633201 Elastic flanged nut M8Elastic flanged nut M8
-
27570070500 Tie-rod capTie-rod cap
-
285347006 Retainer ringRetainer ring
-
2936009 RivetRivet
-
30506151492 Joint ball, R.H.Joint ball, R.H.
-
31506151375 Inside tie-rodInside tie-rod
-
32506151495 Joint ball L.H.Joint ball L.H.
-
33506150400 Half housingHalf housing
-
34506150500 Housing bushingHousing bushing
-
35506150600 Stopper plateStopper plate
-
36207787044 Carriage bolt M8 x 70Carriage bolt M8 x 70
-
37506151140 O-ringO-ring
-
38506151488 Main tubeMain tube
-
39506151413 ExtensionExtension
-
40506151622 Steering supportSteering support
-
41506151196 ReinforcementReinforcement
-
42250000074 Screw M8 x 55Screw M8 x 55
-
43605249130 Handle barHandle bar
-
445340464 GripGrip
-
45506151509 PaddingPadding
-
46605249239 CoverCover
-
47515175657 HeaterHeater
-
4842603 Male terminalMale terminal
-
49515175685 Switch killSwitch kill
-
50512059152 Handle assyHandle assy
-
51512059537 Throttle housing, lowerThrottle housing, lower
-
52512059538 Throttle housing, upperThrottle housing, upper
-
5340220 Allen screw M5 x 25Allen screw M5 x 25
-
54414438700 PinPin
-
55414439000 CirclipCirclip
-
56414438900 WasherWasher
-
57512058901 Throttle cableThrottle cable
-
5831038 CirclipCirclip
-
6021003 HornHorn
-
61293550004 Dielectric greaseDielectric grease
-
62413711500 Synthetic greaseSynthetic grease
