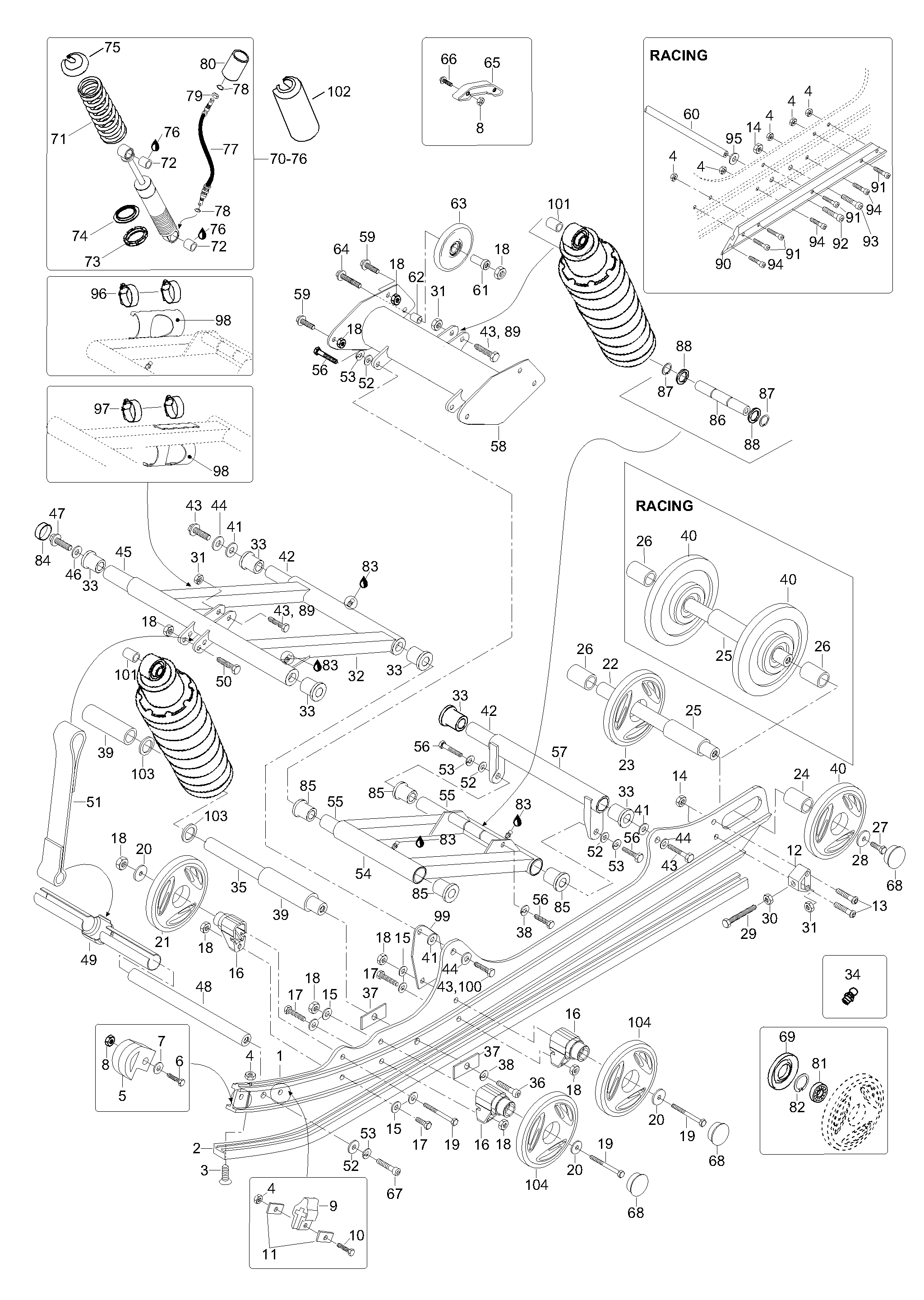

08- Rear Suspension для BRP Lynx Racing - 2004
-
№АртикулНазвание
-
1605249289 RunnerRunner
-
2605349299 Runner shoeRunner shoe
-
340059 Allen screw M6 x 60Allen screw M6 x 60
-
433010 Nut elastic M6Nut elastic M6
-
5605348954 Runner protectorRunner protector
-
640031 Screw M6 x 25Screw M6 x 25
-
720003 WasherWasher
-
833200 Elastic flanged nut M8Elastic flanged nut M8
-
95442328 Rubber StopperRubber Stopper
-
1040032 Screw M6 x 30Screw M6 x 30
-
11548470 WasherWasher
-
125341633 TensionerTensioner
-
1340392 Allen screw M8 x 45Allen screw M8 x 45
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
1520104 Washer, hardenedWasher, hardened
-
16605450182 SupportSupport
-
1740037 Screw M8 x 25Screw M8 x 25
-
1833011 Nut elastic M8Nut elastic M8
-
1940089 Screw M8 x 75Screw M8 x 75
-
20503183100 Washer, hardenedWasher, hardened
-
21503190229 Wheel 135/blackWheel 135/black
-
225341511 Rear shaftRear shaft
-
245441512 SpacerSpacer
-
255448027 SleeveSleeve
-
265444099 SpacerSpacer
-
2740050 Screw M10 x 35Screw M10 x 35
-
28503183300 Washer, hardenedWasher, hardened
-
2940239 Screw M10 x 100Screw M10 x 100
-
3033004 Nut M10Nut M10
-
3133012 Nut elastic M10Nut elastic M10
-
325145588 Welded front armWelded front arm
-
3331083 CushionCushion
-
3434011 Crease nippleCrease nipple
-
35605350691 Shaft, shockShaft, shock
-
3640371 Allen screw M12 x 55Allen screw M12 x 55
-
37605449294 Support plateSupport plate
-
3820068 Lock washerLock washer
-
3820074 Lock washerLock washer
-
39605349896 SpacerSpacer
-
40503190232 Idler Wheel 180/blackIdler Wheel 180/black
-
4120116 WasherWasher
-
425346900 ShaftShaft
-
4340016 Screw M10 x 45Screw M10 x 45
-
44512056700 Lock washerLock washer
-
455346135 ShaftShaft
-
4620090 Lock washerLock washer
-
4740243 Screw M12 x 60Screw M12 x 60
-
485343471 ShaftShaft
-
49605349381 Retainer, stopper strapRetainer, stopper strap
-
5040008 Screw M8 x 45Screw M8 x 45
-
51605449385 Belt, frontBelt, front
-
5220105 Washer, hardenedWasher, hardened
-
5320047 Spring washerSpring washer
-
54605349313 Rear Arm WeldRear Arm Weld
-
555346865 ShaftShaft
-
5640014 Screw M10 x 40Screw M10 x 40
-
575345535 Rear armRear arm
-
58605249273 Upper armUpper arm
-
5940058 Locking screw M8 x 20Locking screw M8 x 20
-
60605449400 Support shaftSupport shaft
-
615446700 SleeveSleeve
-
625446701 SleeveSleeve
-
6346027 Idler Wheel blackIdler Wheel black
-
6440376 Locking screw M8 x 80Locking screw M8 x 80
-
655343191 Slide partSlide part
-
6640064 Screw M6 x 40Screw M6 x 40
-
6740134 Allen screw M10 x 45Allen screw M10 x 45
-
68570063600 CapCap
-
69572089000 Labyrinth sealLabyrinth seal
-
70605350313 Shock assy, rear arm. Includes items 70 thru 76Shock assy, rear arm. Includes items 70 thru 76
-
7023184 Shock, front armShock, front arm
-
7023185 Shock, rear armShock, rear arm
-
70605350312 Shock assy, front arm. Includes items 70 thru 76Shock assy, front arm. Includes items 70 thru 76
-
7125062 Spring, etuvipuSpring, etuvipu
-
7125056 Spring, rear armSpring, rear arm
-
7231094 Slide bearingSlide bearing
-
73230048 CamCam
-
74230049 Spring guideSpring guide
-
755346750 Spring stopperSpring stopper
-
76320006 Loctite 641Loctite 641
-
80230114 Reservoir (RC-models)Reservoir (RC-models)
-
81405404500 Ball bearingBall bearing
-
82371901700 CirclipCirclip
-
83413711500 Synthetic greaseSynthetic grease
-
845448025 CapCap
-
8531068 Slide bearingSlide bearing
-
86605449317 ShaftShaft
-
8731007 CirclipCirclip
-
8831091 ShimShim
-
8940265 Screw M10 x 45Screw M10 x 45
-
90605349168 Runner reinforcementRunner reinforcement
-
9140276 Allen screw M6 x 25Allen screw M6 x 25
-
9240135 Allen screw M8 x 30Allen screw M8 x 30
-
9340289 Allen screw M8 x 25Allen screw M8 x 25
-
9440052 Allen screw M6 x 20Allen screw M6 x 20
-
9520004 WasherWasher
-
96605351401 Clamp (RC-models)Clamp (RC-models)
-
97605351502 Clamp (RC-models)Clamp (RC-models)
-
98605350689 Bracket (RC-models)Bracket (RC-models)
-
99605450694 Support plateSupport plate
-
10040265 Screw M10 x 45Screw M10 x 45
-
1015446652 SleeveSleeve
-
1025346754 ProtectorProtector
-
10331013 ShimShim
-
104503190229 Wheel 135/blackWheel 135/black
