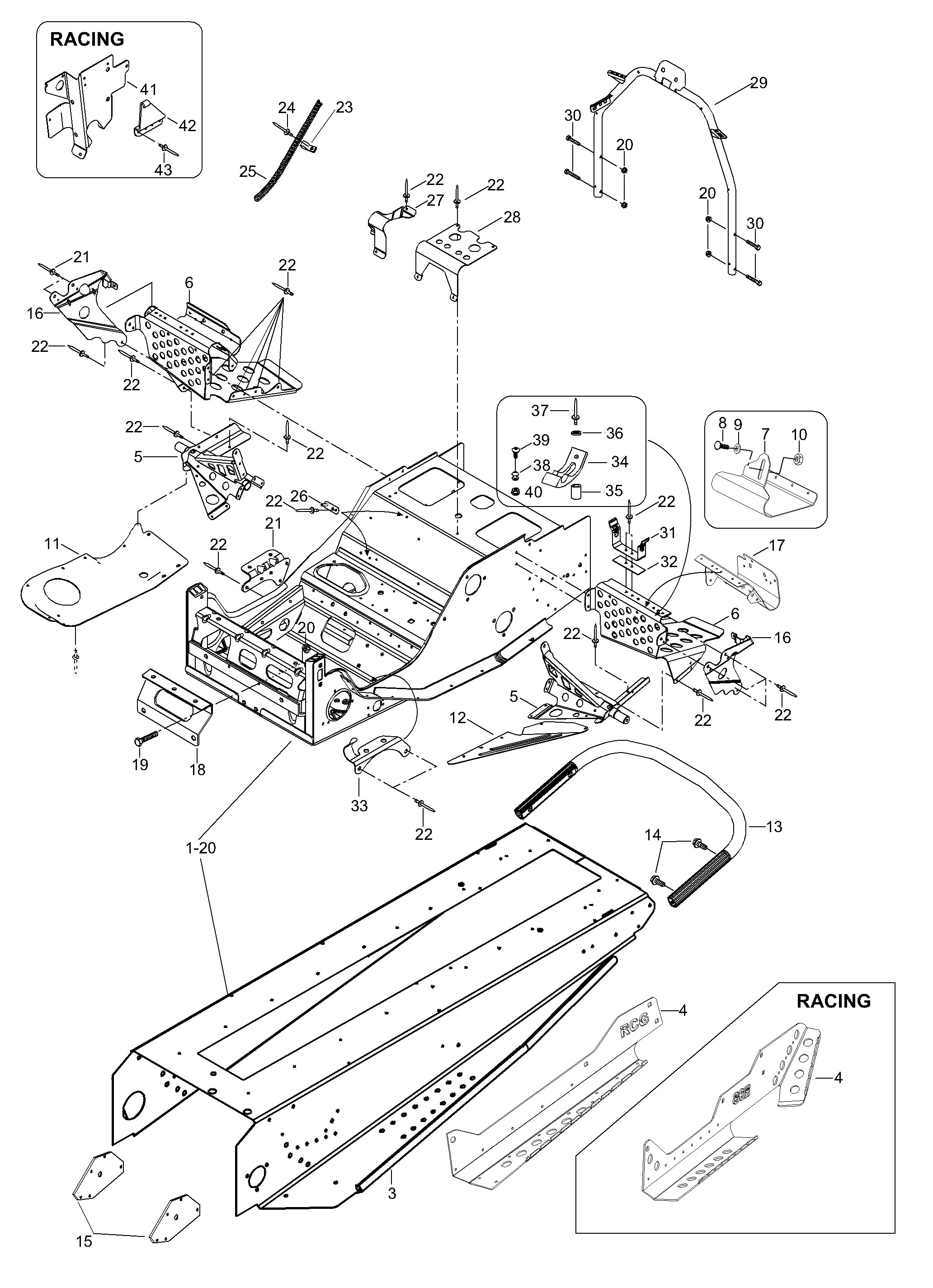

09- Frame для BRP Lynx Racing - 2004
-
№АртикулНазвание
-
1605150493 Frame assy, Alum.. Includes items 1 thru 26Frame assy, Alum.. Includes items 1 thru 26
-
3605349547 R.H. Support (unpainted)R.H. Support (unpainted)
-
3605349548 L.H. Support (unpainted)L.H. Support (unpainted)
-
4605249290 R.H. holed corner plateR.H. holed corner plate
-
4605249291 L.H. holed corner plateL.H. holed corner plate
-
5605248447 R.H. supportR.H. support
-
5605248448 L.H. supportL.H. support
-
6605250377 R.H. front footrestR.H. front footrest
-
6605250378 L.H. front footrestL.H. front footrest
-
75248038 R.H. toe holdR.H. toe hold
-
75248039 L.H. toe holdL.H. toe hold
-
840058 Locking screw M8 x 20Locking screw M8 x 20
-
920005 WasherWasher
-
1033201 Elastic flanged nut M8Elastic flanged nut M8
-
11518319760 R.H. bottom pan plateR.H. bottom pan plate
-
12605349267 L.H. reinf. plateL.H. reinf. plate
-
13605349543 Rear bumper, brightRear bumper, bright
-
1440336 Screw M8 x 20Screw M8 x 20
-
15605449345 SupportSupport
-
16605250669 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
16605250670 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
175147869 R.H. toe holdR.H. toe hold
-
175147870 L.H. toe holdL.H. toe hold
-
185346111 Front support (unpaintedFront support (unpainted
-
1940029 Screw M6 x 16Screw M6 x 16
-
2033200 Nut M6Nut M6
-
21518322635 Muffler supportMuffler support
-
2236489 RivetRivet
-
2327092 ClipClip
-
2436036 RivetRivet
-
25518321569 Rope guideRope guide
-
26518319728 Double bracketDouble bracket
-
27518322699 Hose supportHose support
-
28518310400 Air intake supportAir intake support
-
295247856 Handle steering supp.Handle steering supp.
-
3040002 Screw M6 x 40Screw M6 x 40
-
31518202100 Pulley Guard bracketPulley Guard bracket
-
32518207500 ReinforcementReinforcement
-
33515175254 Cable supportCable support
-
34531955 LatchLatch
-
35543417 SleeveSleeve
-
36543392 WasherWasher
-
3736072 RivetRivet
-
38605449087 Counter rollCounter roll
-
3940168 Screw M4 x 25Screw M4 x 25
-
4033008 Nut M4Nut M4
-
41518322927 SupportSupport
-
42518322928 Bracket, coilBracket, coil
-
4336083 RivetRivet
