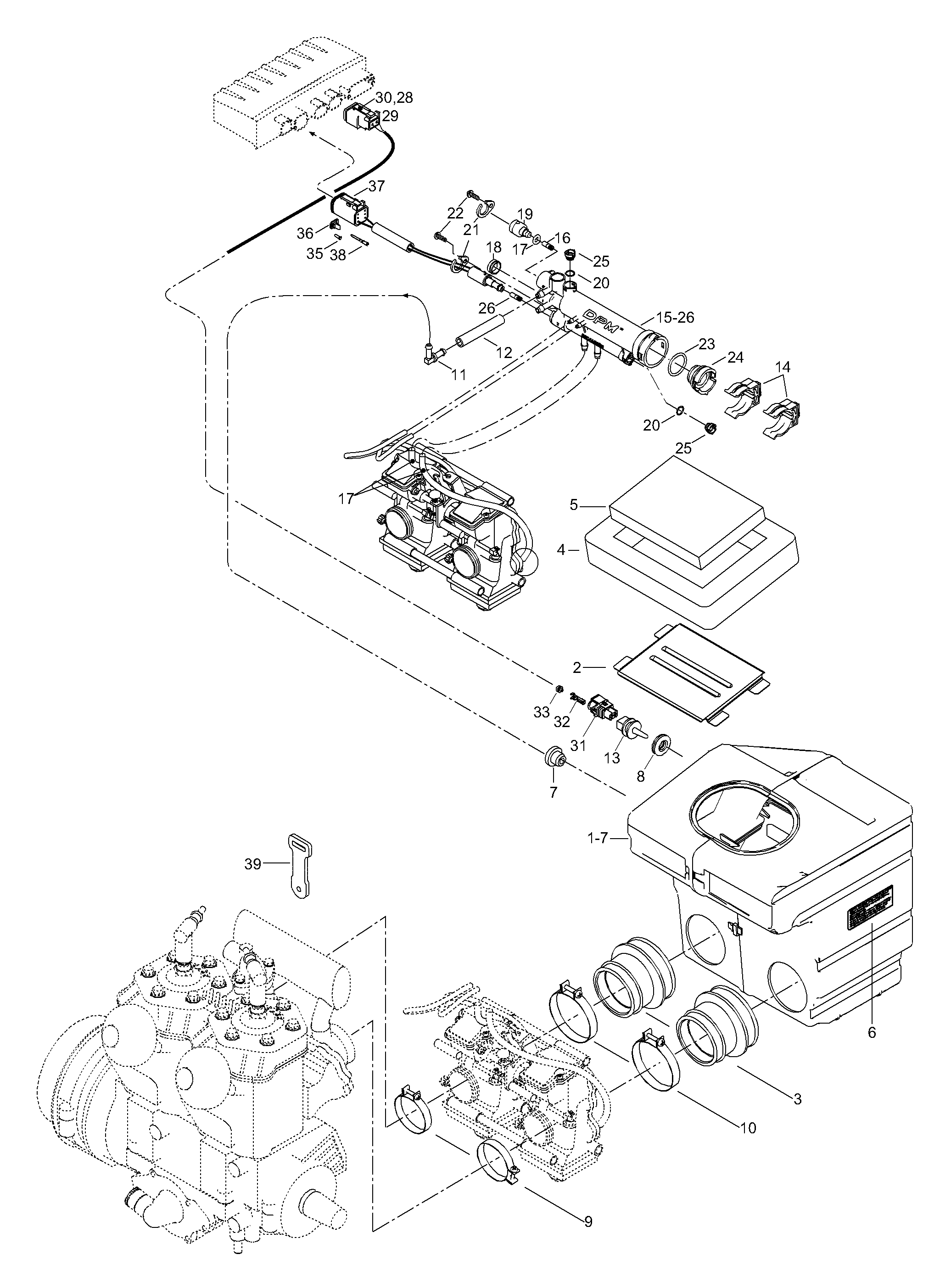

01- Air Silencer 600 для BRP Lynx Ranger 600 - 2004
-
№АртикулНазвание
-
1508000391 Air intake assy. Includes items 1 thru 7Air intake assy. Includes items 1 thru 7
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8570065500 GrommetGrommet
-
9512059835 ClampClamp
-
1027046 ClampClamp
-
11414580600 ConnectorConnector
-
1239004 HoseHose
-
13270600000 Air temperature sensorAir temperature sensor
-
14512058919 SupportSupport
-
15512059496 Pressure manifold assy. Includes items 15 thru 26Pressure manifold assy. Includes items 15 thru 26
-
16404161824 Starter jetStarter jet
-
17512059558 O-ringO-ring
-
18512058982 CapCap
-
19512059557 CapCap
-
20512058925 O-ringO-ring
-
21415061600 Solenoid lockSolenoid lock
-
22241140060 Screw K40 x 10Screw K40 x 10
-
23512058950 O-ringO-ring
-
24512058949 CapCap
-
25512058921 CapCap
-
26404161825 Starter jetStarter jet
-
27515175703 Wire harness. Includes items 27 thru 33Wire harness. Includes items 27 thru 33
-
28515175706 Female lockFemale lock
-
29515175670 Female connector housingFemale connector housing
-
30278000632 Female terminalFemale terminal
-
31515175588 Connector housingConnector housing
-
32278000998 Female terminalFemale terminal
-
33278000999 SealSeal
-
34515175693 Harness assy. Includes items 34 thru 38Harness assy. Includes items 34 thru 38
-
35293000052 CapCap
-
36515175678 WedgeWedge
-
37515175673 Connector housingConnector housing
-
38278000632 Female terminalFemale terminal
-
39512059372 LatchLatch
