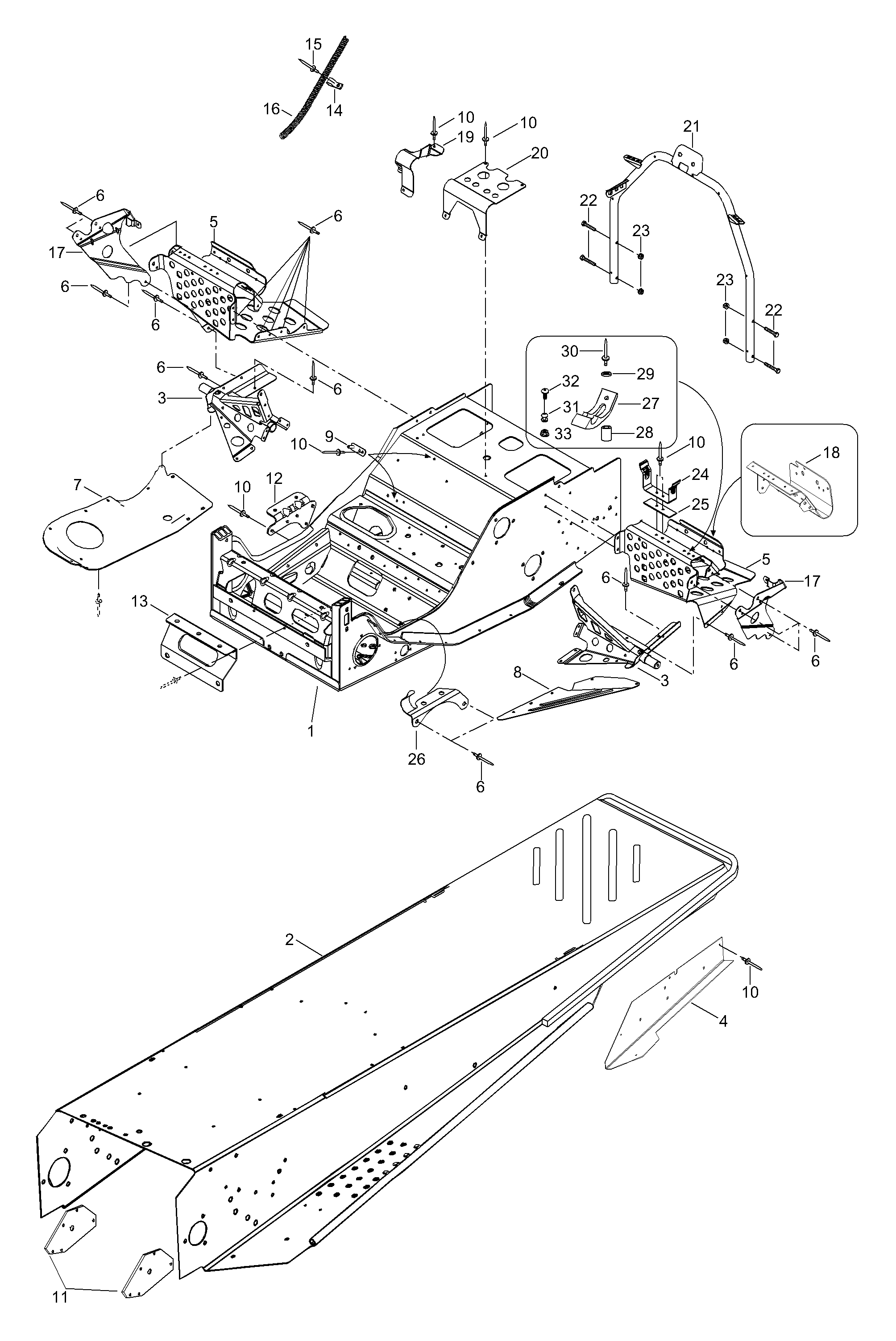

09- Frame для BRP Lynx Ranger 600 - 2004
-
№АртикулНазвание
-
1605150420 Frame assy. Includes items 1 thru 18Frame assy. Includes items 1 thru 18
-
35246775 R.H. supportR.H. support
-
35246776 L.H. supportL.H. support
-
4605350425 R.H. bracketR.H. bracket
-
4605350424 L.H. bracketL.H. bracket
-
5605250239 R.H. front footrestR.H. front footrest
-
5605250240 L.H. front footrestL.H. front footrest
-
636083 RivetRivet
-
7518319760 R.H. bottom pan plateR.H. bottom pan plate
-
8605349267 L.H. reinf. plateL.H. reinf. plate
-
9518319728 Double bracketDouble bracket
-
1036489 RivetRivet
-
115348321 SupportSupport
-
12518322635 Muffler supportMuffler support
-
135346111 Support plateSupport plate
-
1427092 ClipClip
-
1536036 RivetRivet
-
16518321569 Rope guideRope guide
-
175146912 R.H. end plateR.H. end plate
-
175146913 L.H. end plateL.H. end plate
-
185146917 R.H. toe holdR.H. toe hold
-
185146918 L.H. toe holdL.H. toe hold
-
19518322699 Hose supportHose support
-
20518310400 Air intake supportAir intake support
-
215247856 Handle steering supp.Handle steering supp.
-
2240002 Screw M6 x 40Screw M6 x 40
-
2333200 Nut M6Nut M6
-
24518202100 Pulley guard bracketPulley guard bracket
-
25518207500 ReinforcementReinforcement
-
26515175254 Cable supportCable support
-
27531955 LatchLatch
-
28543417 SleeveSleeve
-
29543392 WasherWasher
-
3036072 RivetRivet
-
31605449087 Counter rollCounter roll
-
3240168 Screw M4 x 25Screw M4 x 25
-
3333008 Nut M4Nut M4
