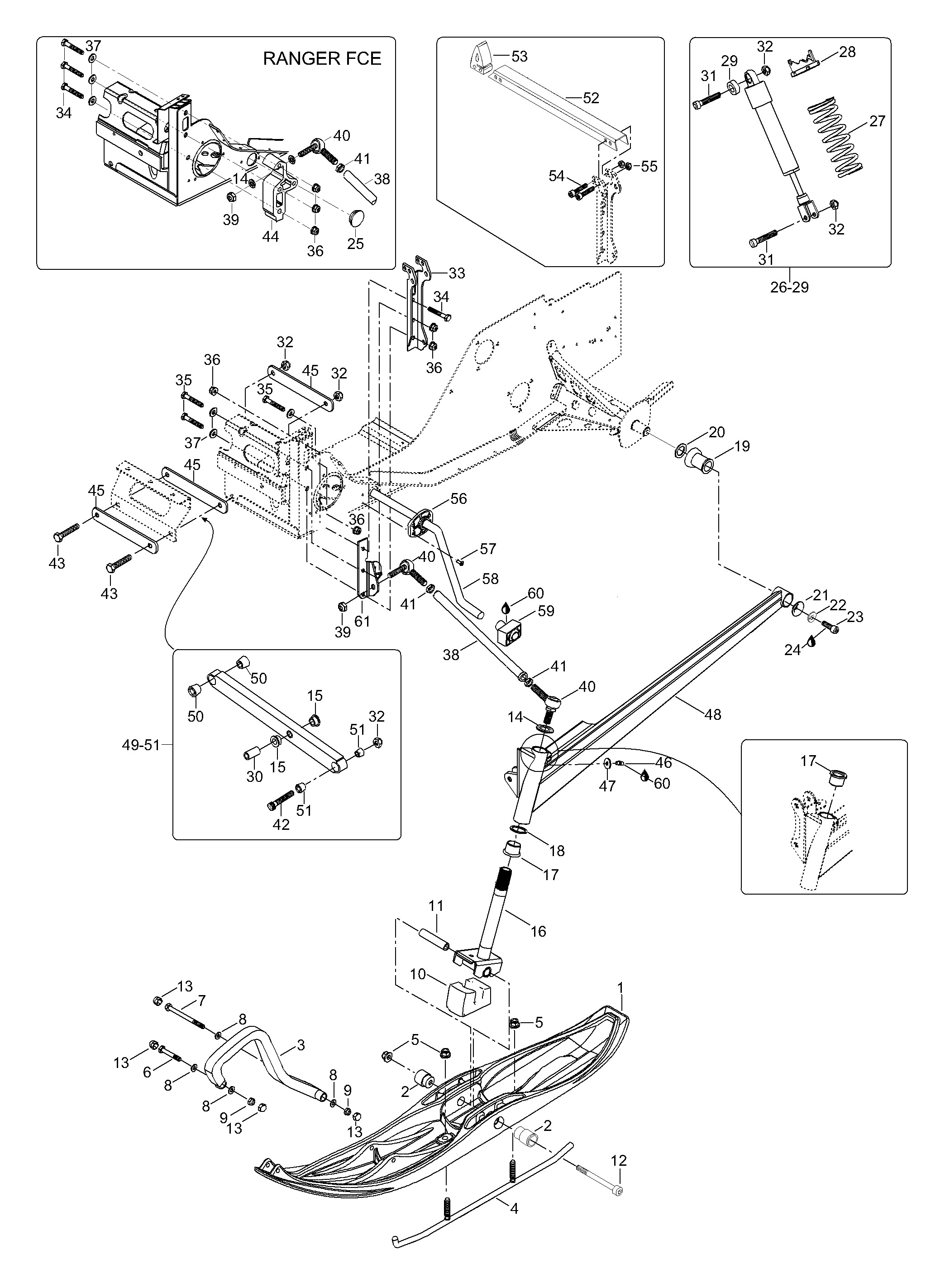

08- Front Suspension для BRP Lynx Ranger 600 - 2004
-
№АртикулНазвание
-
1605148440 Plastic ski. Includes items 1 thru 2Plastic ski. Includes items 1 thru 2
-
2605348392 SleeveSleeve
-
3505070963 Plastic handlePlastic handle
-
4605349310 Runner carbideRunner carbide
-
533074 Elastic flange nut M10Elastic flange nut M10
-
640009 Screw M8 x 50Screw M8 x 50
-
740264 Screw M8 x 90Screw M8 x 90
-
820004 WasherWasher
-
933011 Nut elastic M8Nut elastic M8
-
10605348458 Stopper-skiStopper-ski
-
11506133300 SpacerSpacer
-
1240225 Allen screw M10 x140Allen screw M10 x140
-
1328056 CapCap
-
1420074 Lock washerLock washer
-
1531088 BearingBearing
-
16605248927 Ski legSki leg
-
17505070003 BushingBushing
-
18505070004 WasherWasher
-
19570062200 DamperDamper
-
20503146700 WasherWasher
-
21506079600 CupCup
-
2220014 Spring washerSpring washer
-
2340289 Allen screw M8 x 25Allen screw M8 x 25
-
24293800060 Loctite 243, 10mlLoctite 243, 10ml
-
2623147 Shock assy. Includes items 26 thru 29Shock assy. Includes items 26 thru 29
-
28503183700 CamCam
-
29230055 Rubber bushingRubber bushing
-
305441433 BushingBushing
-
3140837 Allen screw M10 x 55Allen screw M10 x 55
-
3233012 Nut elastic M10Nut elastic M10
-
335245488 L.H. Shock bracketL.H. Shock bracket
-
335246395 R.H. Shock bracketR.H. Shock bracket
-
3440010 Screw M8 x 55Screw M8 x 55
-
3633201 Elastic flanged nut M8Elastic flanged nut M8
-
3720104 Washer, hardenedWasher, hardened
-
385346122 Upper armUpper arm
-
3933087 Jam nut elastic M12Jam nut elastic M12
-
4031092 Ball jointBall joint
-
4133048 Jam nut M12Jam nut M12
-
4240136 Allen screw M10 x 50Allen screw M10 x 50
-
4340814 Screw M10 x 110Screw M10 x 110
-
455346112 Support plateSupport plate
-
4634011 Grease fittingGrease fitting
-
48605248969 L.H. Swing arm, Full moonL.H. Swing arm, Full moon
-
48605248970 R.H. Swing arm, Full moonR.H. Swing arm, Full moon
-
49605248971 Lower arm, Full moon. Includes items 49 thru 51Lower arm, Full moon. Includes items 49 thru 51
-
505447769 Inner sleeveInner sleeve
-
515447770 Outer sleeveOuter sleeve
-
525348107 BracketBracket
-
535348087 RubberRubber
-
5440345 Allen screw M6 x 40Allen screw M6 x 40
-
5533010 Nut elastic M6Nut elastic M6
-
56505070191 SleeveSleeve
-
5736009 RivetRivet
-
585246797 Sway barSway bar
-
59505070117 Block-joint ballBlock-joint ball
-
60413711500 Synthetic greaseSynthetic grease
-
615348064 R.H. Upper arm bracketR.H. Upper arm bracket
-
615348063 L.H. Upper arm bracketL.H. Upper arm bracket
