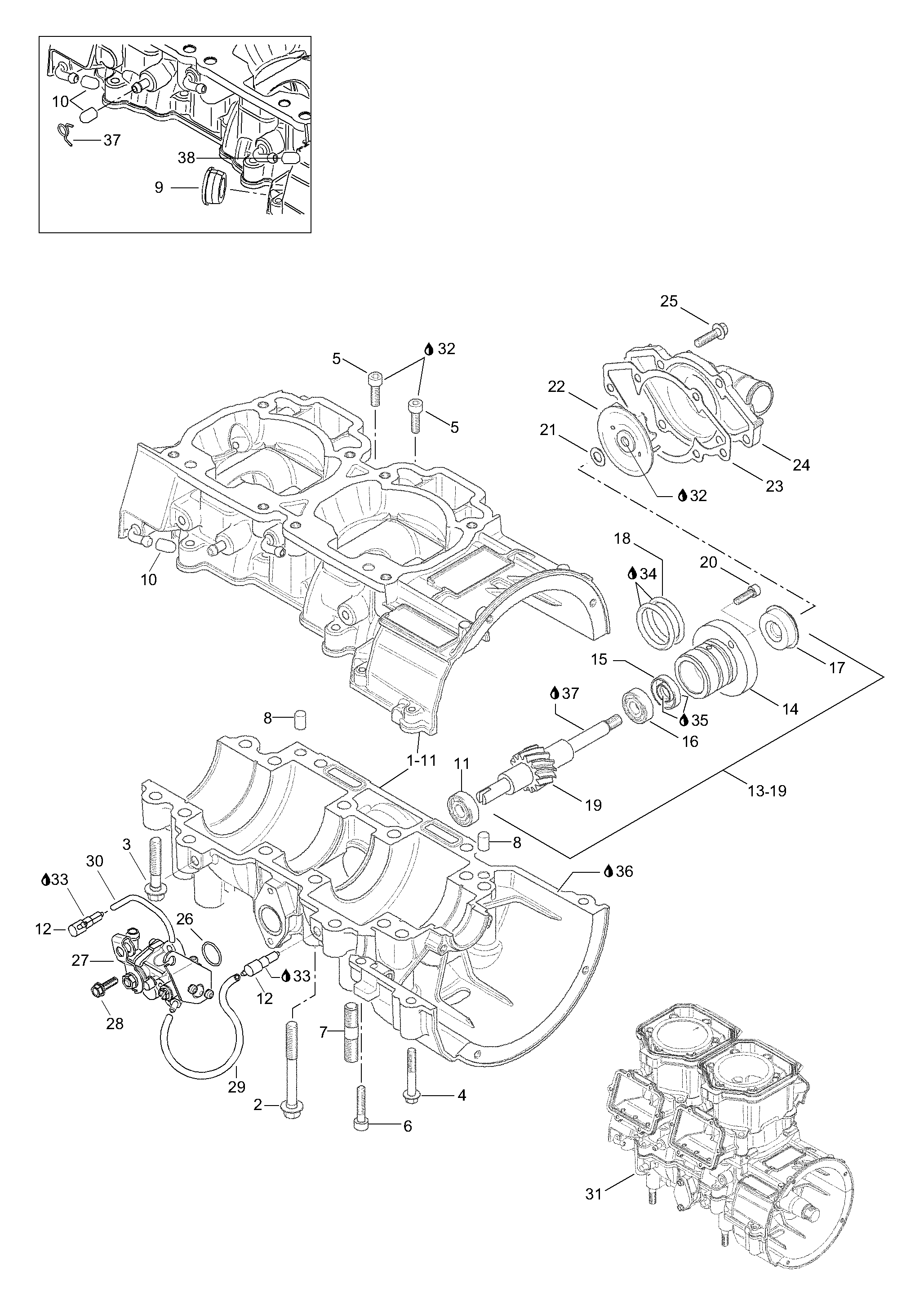

05- Crankcase для BRP Lynx Ranger 600 - 2004
-
№АртикулНазвание
-
1420888769 Crankcase assy. Includes items 1 thru 11Crankcase assy. Includes items 1 thru 11
-
2420640836 Screw M8 x 75Screw M8 x 75
-
3420640431 Screw M8 x 45Screw M8 x 45
-
4420640311 Screw M6 x 45Screw M6 x 45
-
5420840401 Allen screw M6 x 22Allen screw M6 x 22
-
6420840880 Allen screw M6 x 30Allen screw M6 x 30
-
7420641834 Stud M10 x 29Stud M10 x 29
-
8420632010 PinPin
-
9420860965 Cable grommetCable grommet
-
10420960770 Closure capClosure cap
-
11420232100 Ball bearingBall bearing
-
12420956510 Checkvalve assyCheckvalve assy
-
13420837421 Waterpump/oilpump shaft. Includes items 13 thru 19Waterpump/oilpump shaft. Includes items 13 thru 19
-
15420230195 Oil sealOil seal
-
16420232100 Ball bearingBall bearing
-
17420650370 Rotary sealRotary seal
-
18420950890 O-ringO-ring
-
20420840511 Allen screw M5 x 16Allen screw M5 x 16
-
21420227945 Thrust washerThrust washer
-
22420222505 ImpellerImpeller
-
23420931810 GasketGasket
-
24420922630 Pump housingPump housing
-
25420240031 Screw M6 x 25Screw M6 x 25
-
26420230400 O-ringO-ring
-
27420888780 Oil pump assyOil pump assy
-
28420941925 Screw M5 x 16Screw M5 x 16
-
29420660421 Oil line 70 mmOil line 70 mm
-
30420660423 Oil line 115 mm, PTOOil line 115 mm, PTO
-
31300059308 Short block engineShort block engine
-
32293800060 Loctite 243, 10mlLoctite 243, 10ml
-
33413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
34413707000 Molykote 111Molykote 111
-
35420899271 Klueber petamo, 250gr.Klueber petamo, 250gr.
-
36420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
37420938190 ClampClamp
-
38420960777 Protection capProtection cap
