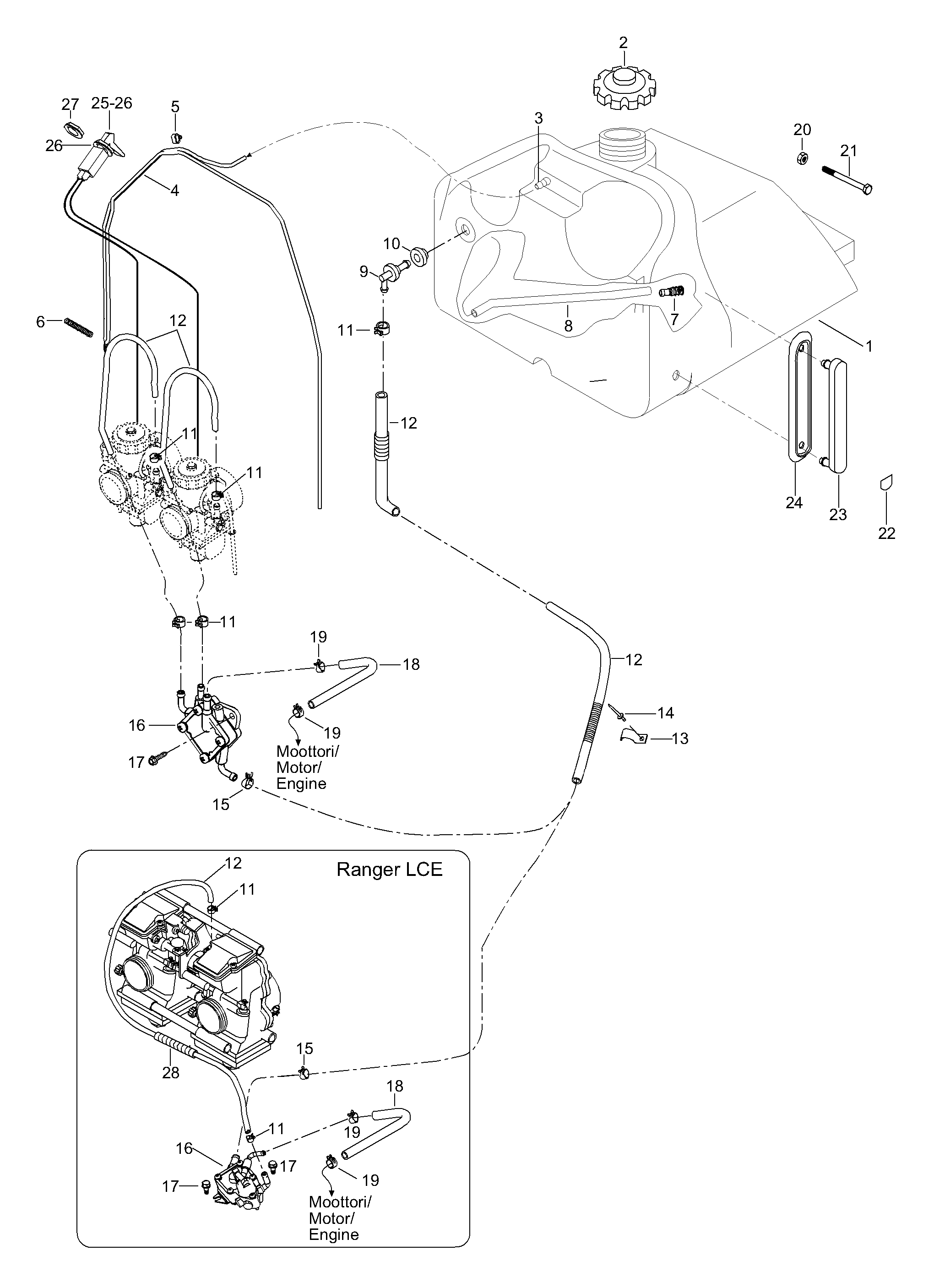

02- Fuel Tank для BRP Lynx Ranger 600 - 2004
-
№АртикулНазвание
-
1605149003 Fuel tankFuel tank
-
2580259400 Cap assemblyCap assembly
-
319051 FittingFitting
-
439035 Airhose 5/3Airhose 5/3
-
5513032923 Tube clampTube clamp
-
6414818200 SpringSpring
-
7414872100 Fuel filterFuel filter
-
839048 Fuel line 12.5/7.5Fuel line 12.5/7.5
-
95341709 Angle adapterAngle adapter
-
1028037 RubberRubber
-
11414655700 ClampClamp
-
12513033022 HoseHose
-
13415018200 ClipClip
-
1436036 RivetRivet
-
15513032979 ClampClamp
-
16403901806 Fuel pumpFuel pump
-
1740331 Self tapp. screw M6 x 16Self tapp. screw M6 x 16
-
1839001 Fuel line 11/6Fuel line 11/6
-
19414420700 Spring clipSpring clip
-
2033200 Elastig flanged nut M6Elastig flanged nut M6
-
2140826 Screw M6 x 90Screw M6 x 90
-
22549200 Fuel labelFuel label
-
23572015900 Fuel gaugeFuel gauge
-
24570018000 Housing gaugeHousing gauge
-
25512059110 Choke cable. Includes items 25 thru 26Choke cable. Includes items 25 thru 26
-
26394103300 Lock washerLock washer
-
27512059094 Plastic nutPlastic nut
-
2828015 TubingTubing
