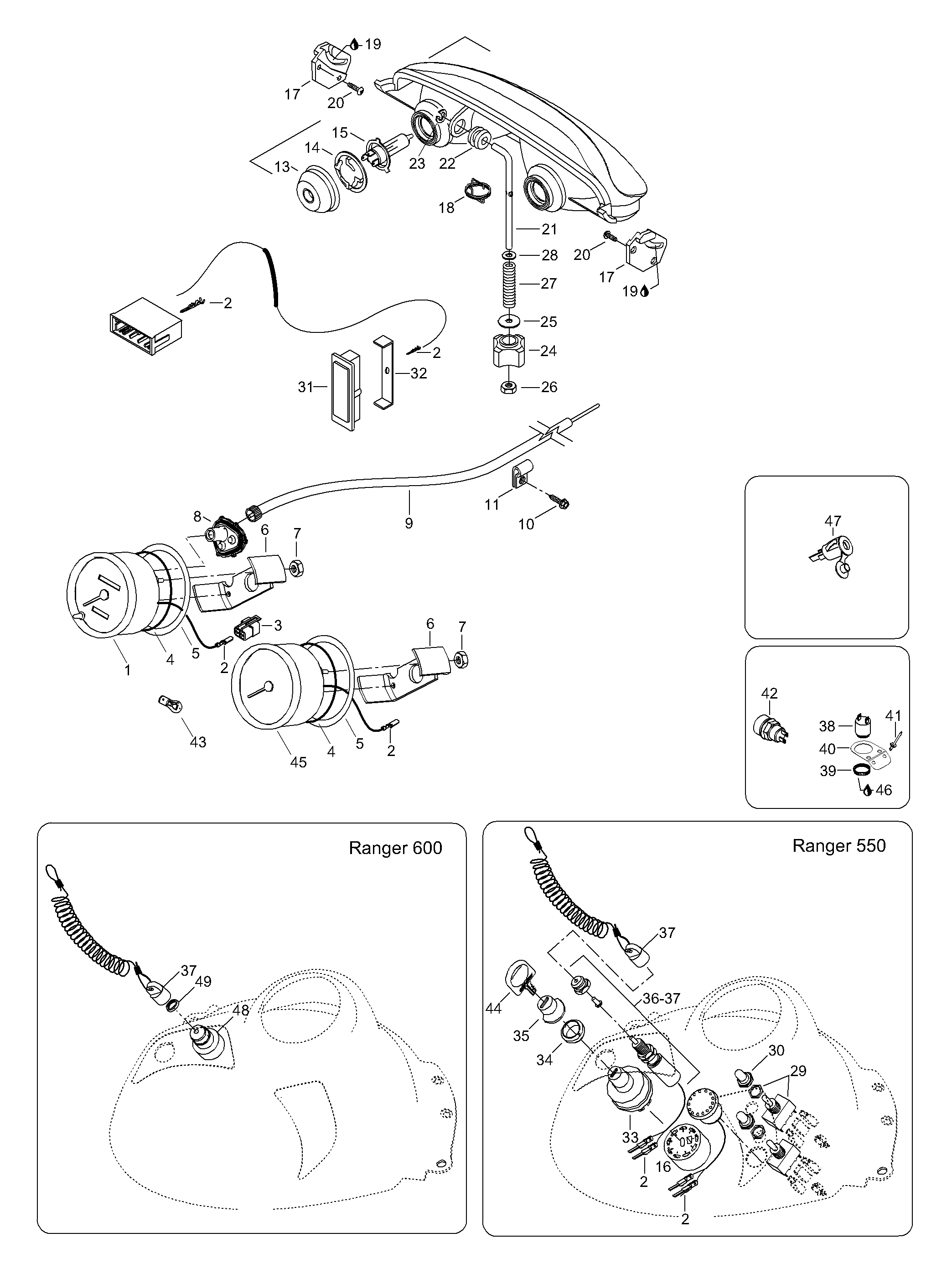

10- Electric для BRP Lynx Ranger 600 - 2004
-
№АртикулНазвание
-
1515175335 Speedometer whiteSpeedometer white
-
242603 Male terminalMale terminal
-
342268 Connector housingConnector housing
-
4414807100 O-ringO-ring
-
5517258500 WasherWasher
-
6414806500 HolderHolder
-
733062 Nut M6Nut M6
-
8515175400 Drive angleDrive angle
-
9415101500 Speedometer cableSpeedometer cable
-
1040870 ScrewScrew
-
1127025 ClampClamp
-
12515175909 Halogen headlamp assy. Includes items 12 thru 17Halogen headlamp assy. Includes items 12 thru 17
-
13410607100 CoverCover
-
14410608300 Bulb holderBulb holder
-
15410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
16572150700 Ignition blockIgnition block
-
17517289300 R.H. headlamp supportR.H. headlamp support
-
17517289400 L.H. headlamp supportL.H. headlamp support
-
185447238 SpringSpring
-
19413707500 Grease tube LMZ 400 gGrease tube LMZ 400 g
-
2040177 Headlamp screwHeadlamp screw
-
21517295800 Adjuster rodAdjuster rod
-
22415100800 GrommetGrommet
-
23732610072 Nut pushNut push
-
24515175548 HandleHandle
-
2520038 WasherWasher
-
2633010 Nut elastic M6Nut elastic M6
-
27415100600 SpringSpring
-
2820003 WasherWasher
-
315348028 Signal lamp assySignal lamp assy
-
325442157 Fit plateFit plate
-
3342019 Ignition switchIgnition switch
-
34410112100 NutNut
-
35570013700 Boot switchBoot switch
-
37515166900 Cap assy, D.E.S.S.Cap assy, D.E.S.S.
-
38415060900 DC-hornDC-horn
-
39414805101 Ring nutRing nut
-
405447941 BracketBracket
-
4136005 RivetRivet
-
43410504200 Instrumentation bulbInstrumentation bulb
-
45515175341 TachometerTachometer
-
46293800005 Loctite 271 (10 ml)Loctite 271 (10 ml)
-
4742026 Flush Mounted SocketFlush Mounted Socket
-
48515175145 D.E.S.S. switchD.E.S.S. switch
-
49278000508 NutNut
