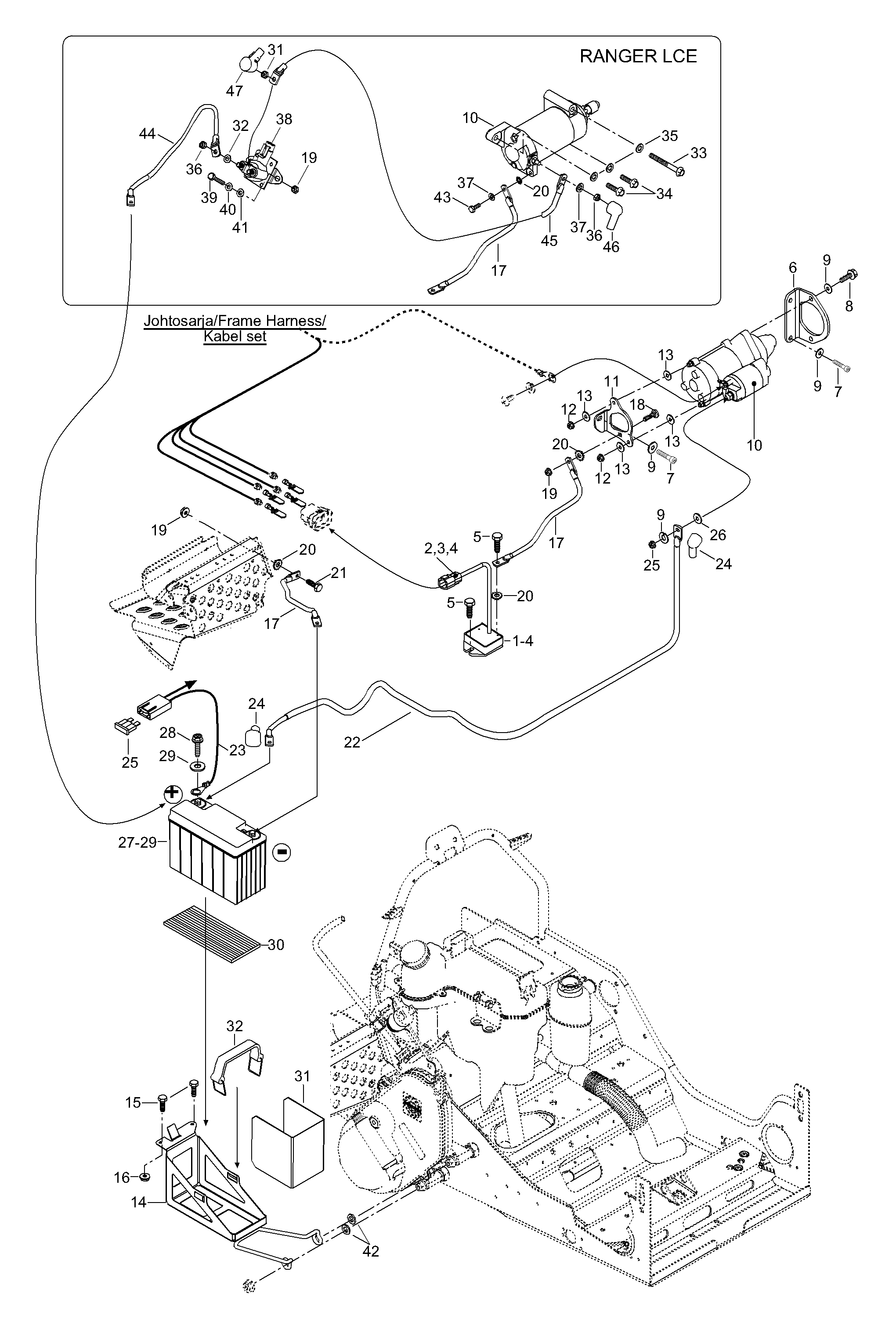

10- Electric Starter для BRP Lynx Ranger 600 - 2004
-
№АртикулНазвание
-
1515175656 Voltage regulator. Includes items 1 thru 4Voltage regulator. Includes items 1 thru 4
-
2278001477 Male housingMale housing
-
3515175568 Male terminalMale terminal
-
4278001478 WedgeWedge
-
540322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
10515176003 StarterStarter
-
14515175848 Battery supportBattery support
-
1540247 Screw M5 x 16Screw M5 x 16
-
1633062 Elastic flanged nut M5Elastic flanged nut M5
-
17515175483 Ground wireGround wire
-
1933200 Elastic flanged nut M6Elastic flanged nut M6
-
2020017 WasherWasher
-
2140029 Screw M6 x 16Screw M6 x 16
-
235446894 Wire, fuse-batteryWire, fuse-battery
-
24570151000 Cap protectionCap protection
-
27515175642 Battery. Includes items 27 thru 29Battery. Includes items 27 thru 29
-
28207161644 Screw M6 x 16Screw M6 x 16
-
29391302100 WasherWasher
-
305347314 Rubber blanketRubber blanket
-
31515175643 ProtectorProtector
-
32515175475 Battery strapBattery strap
-
33207587544 ScrewScrew
-
34207583044 Screw M8 x 30Screw M8 x 30
-
35250200008 WasherWasher
-
3633010 Nut elastic M6Nut elastic M6
-
3720003 WasherWasher
-
38278001766 Relay-starterRelay-starter
-
3940030 Screw M6 x 20Screw M6 x 20
-
4020052 Spring washerSpring washer
-
4120009 WasherWasher
-
4220005 WasherWasher
-
43207361644 Screw M6 x 16Screw M6 x 16
-
44515175555 Battery wireBattery wire
-
455448151 Battery wire, relay->starterBattery wire, relay->starter
-
46278000020 Cap protection, redCap protection, red
-
47570064200 Cap protectionCap protection
