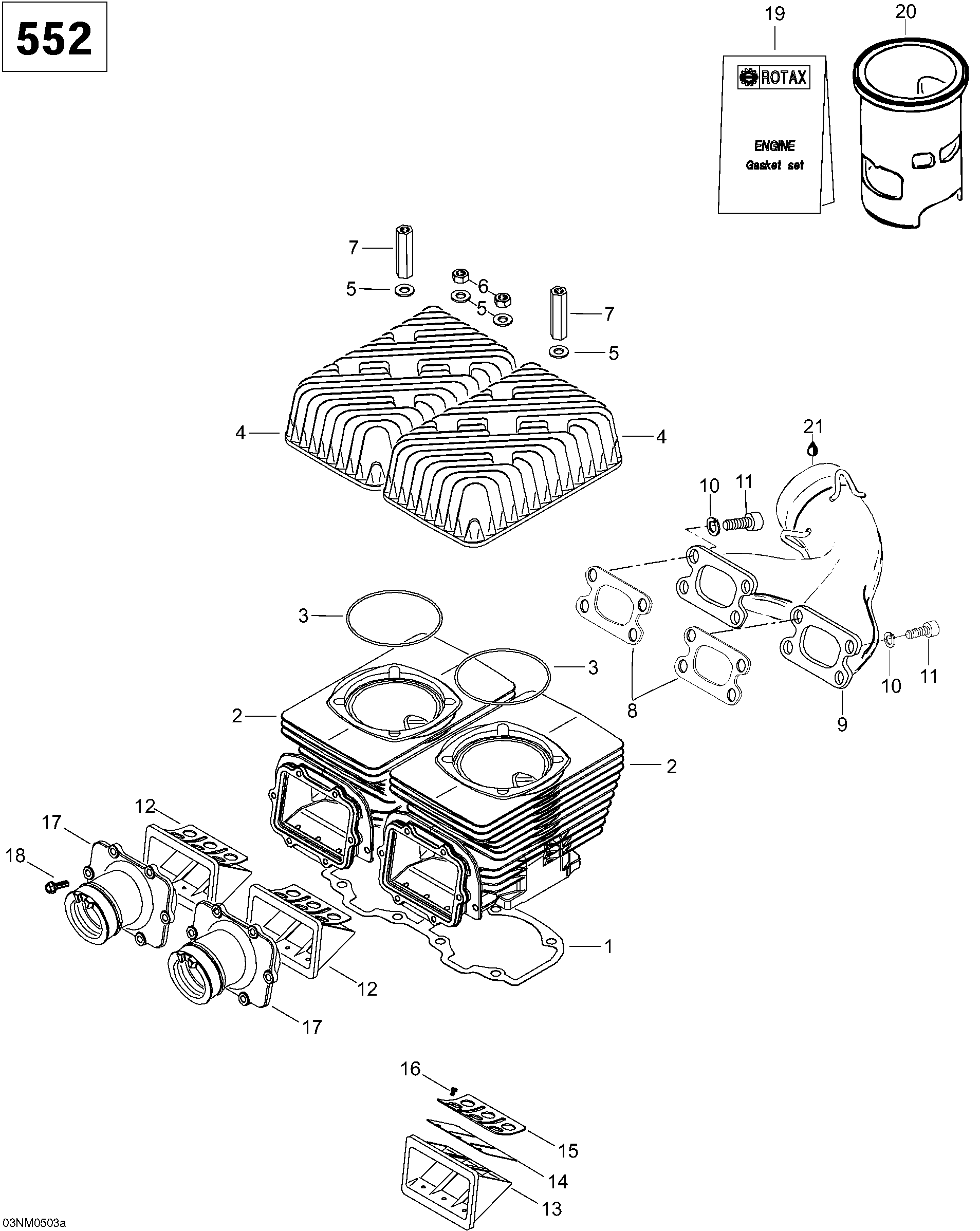

01- Cylinder And Exhaust Manifold, 552 для BRP Lynx Lynx 6900 - 2005
-
№АртикулНазвание
-
1420950910 Gasket 0.3 mmGasket 0.3 mm
-
1420950911 Gasket 0.4 mmGasket 0.4 mm
-
1420950912 Gasket 0.6 mmGasket 0.6 mm
-
2420923978 Cylinder with sleeveCylinder with sleeve
-
3420293300 O-ring 83 mmO-ring 83 mm
-
4420923595 Cylinder headCylinder head
-
5420250311 Washer 8.4 mmWasher 8.4 mm
-
6420242206 Nut M8Nut M8
-
7420842203 Distance nut M8 x 47Distance nut M8 x 47
-
8420831849 GasketGasket
-
9420973512 Branch-YBranch-Y
-
1020014 Lock washer 8 mmLock washer 8 mm
-
1140135 Socket head screw M8 x 30Socket head screw M8 x 30
-
12420924519 Reed valve ass'y. Includes 12 to 16Reed valve ass'y. Includes 12 to 16
-
14420924532 Reed pedalReed pedal
-
15420924539 Reed pedal stopReed pedal stop
-
16420941215 Oval-head screw M3 x 5Oval-head screw M3 x 5
-
17420867105 Carburetor socketCarburetor socket
-
18420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
19420889911 Engine gasket setEngine gasket set
-
20420923981 Spare cylinder sleeveSpare cylinder sleeve
-
21413701000 Silikoni Loctite Ultra BlackSilikoni Loctite Ultra Black
