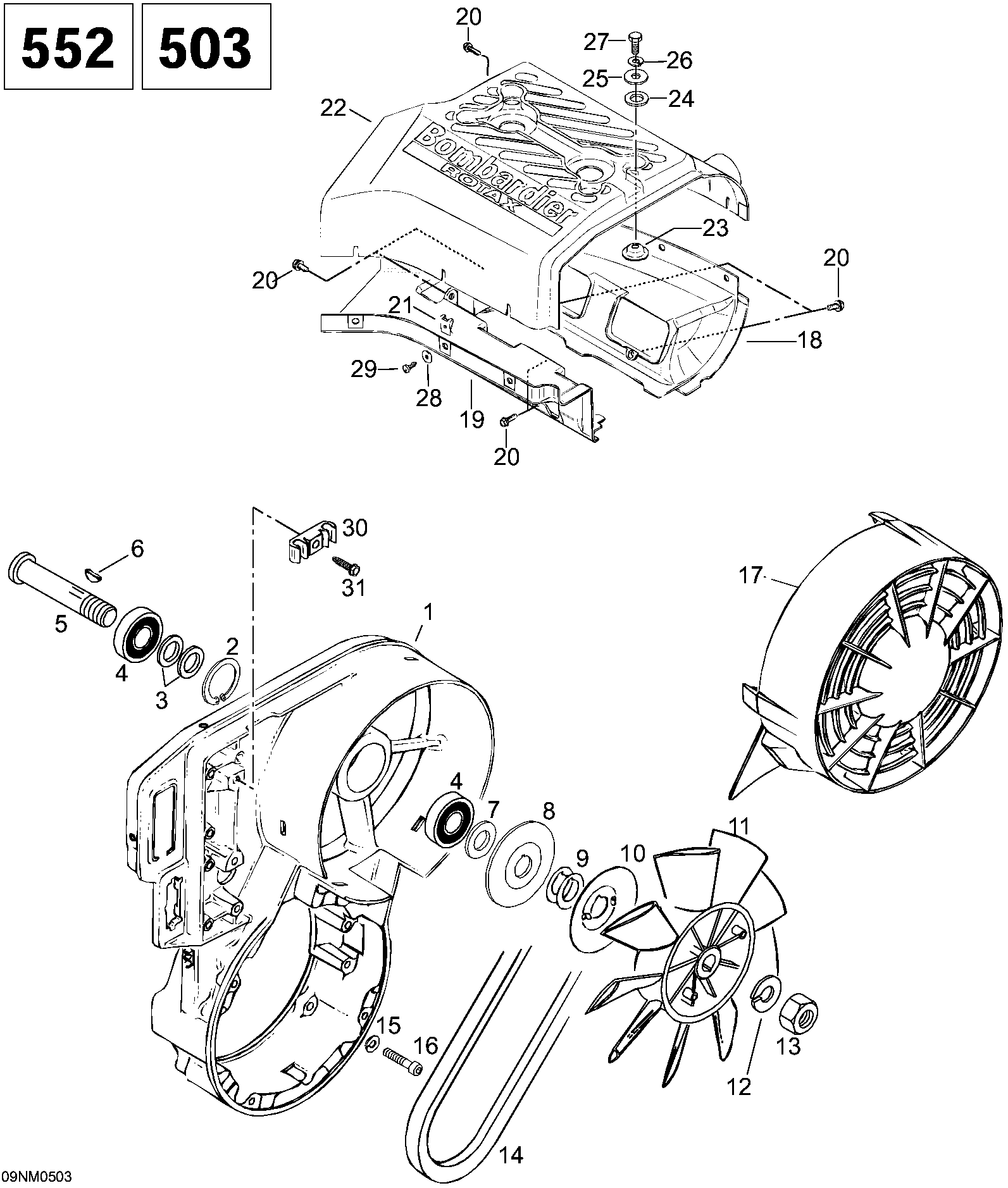

01- Fan, 6900 для BRP Lynx Lynx 6900 - 2005
-
№АртикулНазвание
-
1420912203 Fan housingFan housing
-
2420945880 Retaining ringRetaining ring
-
3420244585 ShimShim
-
4420832161 Ball bearing 6203Ball bearing 6203
-
5420937940 Fan shaftFan shaft
-
6420246015 Woodruff keyWoodruff key
-
7420827650 Distance sleeveDistance sleeve
-
8420980496 Helf pulleyHelf pulley
-
9420827080 Shim 0.5 mmShim 0.5 mm
-
9420827082 Shim 0.2 mmShim 0.2 mm
-
10420980523 Washer-protectorWasher-protector
-
11420866294 FanFan
-
11420866292 FanFan
-
12420945756 Lock washer 16 mmLock washer 16 mm
-
13420942285 Nut M16Nut M16
-
14414630800 V-beltV-belt
-
15420945751 Lock washer 6 mmLock washer 6 mm
-
16420440642 Torx-flange screw M6 x 30Torx-flange screw M6 x 30
-
16420840880 Socket head screw M6 x 30Socket head screw M6 x 30
-
17420975695 Fan coverFan cover
-
18420811392 Cylinder cowl (exhaust side)Cylinder cowl (exhaust side)
-
18420810543 Cylinder cowl (exhaust side)Cylinder cowl (exhaust side)
-
19420811835 Cylinder cowl (carburetor side)Cylinder cowl (carburetor side)
-
19420810546 Cylinder cowl (carburetor side)Cylinder cowl (carburetor side)
-
20420640321 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
21417300005 Nut-spring V 4.8Nut-spring V 4.8
-
22420811295 Cylinder cowlCylinder cowl
-
23420827817 Cup washerCup washer
-
24420960865 Rubber washerRubber washer
-
25420227935 Washer 8.4 mmWasher 8.4 mm
-
26420945752 Lock washer 8 mmLock washer 8 mm
-
27420440852 Torx flange screw M8 x 16Torx flange screw M8 x 16
-
27420940581 Screw M8 x 16Screw M8 x 16
-
28420926180 WasherWasher
-
29417300006 Self tapping screw M 4.8 x 16Self tapping screw M 4.8 x 16
-
30420860945 ClampClamp
-
30420860940 ClampClamp
-
31420841555 Self tapping screw M6 x 20Self tapping screw M6 x 20
-
31420941250 Screw M6 x 20Screw M6 x 20
