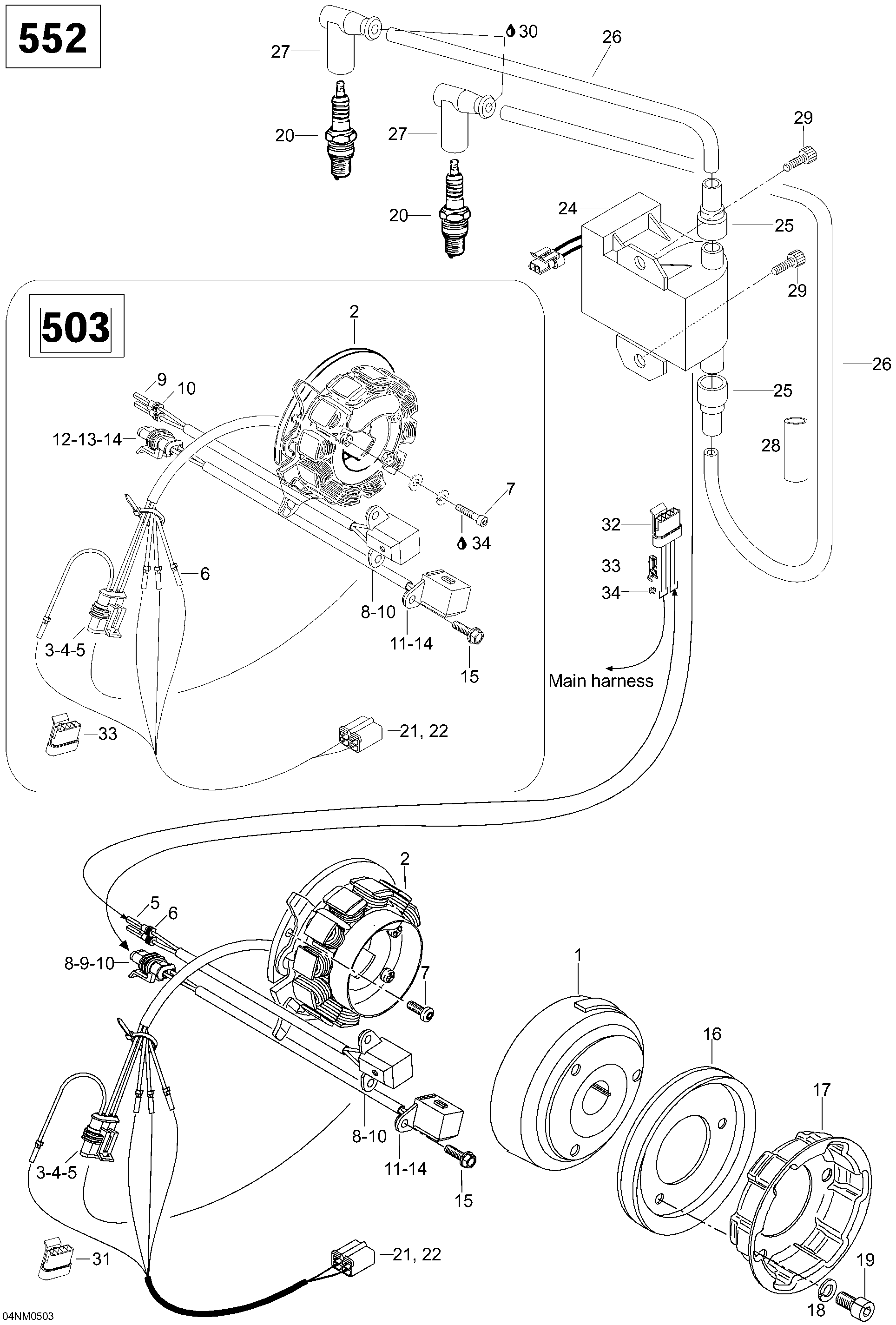

03- Magneto, 6900 для BRP Lynx Lynx 6900 - 2005
-
№АртикулНазвание
-
-420888970 Magneto 12V/340W. 6900, Includes 1 to 6Magneto 12V/340W. 6900, Includes 1 to 6
-
1420889375 Magneto flywheel. 6900Magneto flywheel. 6900
-
2420889365 Stator plate ass'y. 6900, Includes 2 to 6Stator plate ass'y. 6900, Includes 2 to 6
-
3409209600 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
4278001014 Female terminalFemale terminal
-
5278001013 SealSeal
-
6515175567 Female terminalFemale terminal
-
7420641521 Torx, allen screw M5 x 16. 6900Torx, allen screw M5 x 16. 6900
-
8420966548 Pick up ass'y for reverse. Includes 8 to 10Pick up ass'y for reverse. Includes 8 to 10
-
9278001014 Female terminalFemale terminal
-
10278001013 SealSeal
-
11420966546 Pick up assy. Includes 11 to 14Pick up assy. Includes 11 to 14
-
12409209500 Female terminal housingFemale terminal housing
-
13278001014 Female terminalFemale terminal
-
14278001013 SealSeal
-
15420941925 Taptite Screw M5 x 16Taptite Screw M5 x 16
-
16420980486 V-belt pulleyV-belt pulley
-
17420852414 Starting pulleyStarting pulley
-
18420845311 Lock washer 8 mmLock washer 8 mm
-
19420440852 Torx flange screw M8 x 16. 6900Torx flange screw M8 x 16. 6900
-
20414961100 Sytytystulppa NGK BR9 ESSytytystulppa NGK BR9 ES
-
21278001473 Liitin kotelo, urosLiitin kotelo, uros
-
22278001474 Kiila, uros liitinkoteloonKiila, uros liitinkoteloon
-
23512059626 Sytytysyksikko, kalibroitu (552, -0. 6900, Includes 23 to 28Sytytysyksikko, kalibroitu (552, -0. 6900, Includes 23 to 28
-
25278001268 Protection capProtection cap
-
26420830962 Ignition cable, l=690 mmIgnition cable, l=690 mm
-
27278000237 Spark plug connectorSpark plug connector
-
28293550004 TubingTubing
-
2940322 Screw M6 x 20Screw M6 x 20
-
30293550004 Dielectric grease, 150gDielectric grease, 150g
-
3142618 Male connector housingMale connector housing
-
32409209700 Itsekiert.r.M6 x16 DIN7500DZneItsekiert.r.M6 x16 DIN7500DZne
-
33278001014 Female terminalFemale terminal
-
34278001013 SealSeal
-
35409209700 Loctite 243Loctite 243
