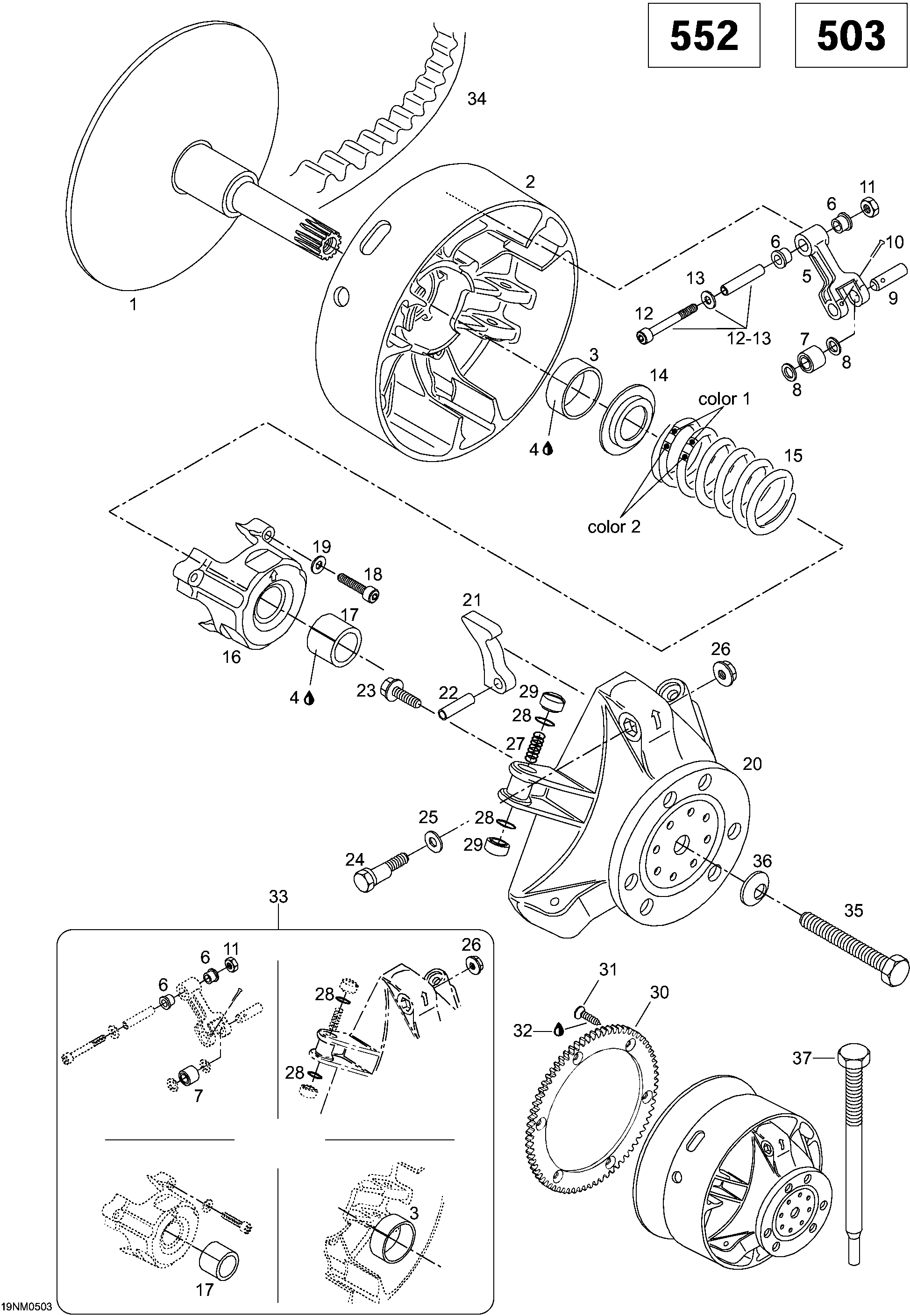

05- Drive Pulley, 6900 для BRP Lynx Lynx 6900 - 2005
-
№АртикулНазвание
-
1417222412 Fix flangeFix flange
-
2417222241 Sliding flange. Includes 2 to 3Sliding flange. Includes 2 to 3
-
3417004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609, 10ccLoctite 609, 10cc
-
5417222383 Lever assy. Includes 5 to 6Lever assy. Includes 5 to 6
-
6417004305 Flange bushingFlange bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417004308 Pin. 6900Pin. 6900
-
10732958001 Cotter pinCotter pin
-
1133010 Nut elastic M6Nut elastic M6
-
-417004800 Fitting screw assy. Includes 12 to 13Fitting screw assy. Includes 12 to 13
-
12222965065 Allen screw M6 x 50Allen screw M6 x 50
-
1320003 Flat washer 6mmFlat washer 6mm
-
14417222044 Spring seatSpring seat
-
15415034900 Spring purple/blue. 6900Spring purple/blue. 6900
-
16417222304 Spring cover assy. Includes 16 to 17Spring cover assy. Includes 16 to 17
-
17417004501 Spring cover bushingSpring cover bushing
-
18250000038 Allen screw M6 x 40Allen screw M6 x 40
-
19420245370 Friction washerFriction washer
-
20417222081 Gouvernor cup assyGouvernor cup assy
-
21417005290 Ramp 290Ramp 290
-
22732804009 Dowl tubeDowl tube
-
23210361890 Screw M6 x 18Screw M6 x 18
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26233061414 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-RingO-Ring
-
29417005800 Shoe sliderShoe slider
-
30415043100 Ring gearRing gear
-
31236281684 ScrewScrew
-
32293800005 Loctite 271, 10mlLoctite 271, 10ml
-
33417006100 Clutch repair kitClutch repair kit
-
34414633800 Drive beltDrive belt
-
35417113800 ScrewScrew
-
3620090 Conical washer M12Conical washer M12
-
37529007900 Puller inner halfPuller inner half
