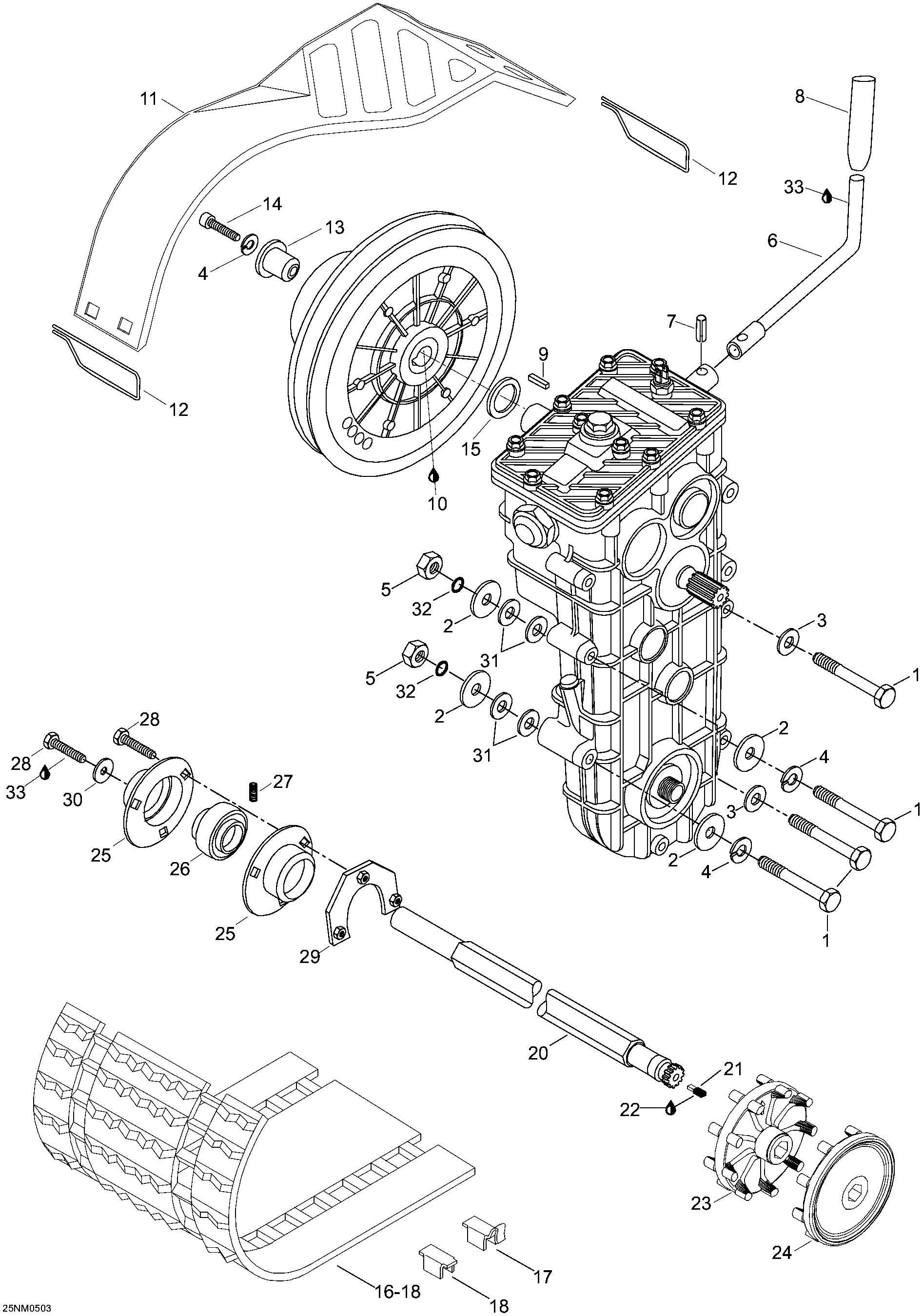

05- Drive System, 6900 для BRP Lynx Lynx 6900 - 2005
-
№АртикулНазвание
-
140012 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
220010 Washer 8mmWasher 8mm
-
320004 Washer 8mmWasher 8mm
-
420014 Lock washer 8mmLock washer 8mm
-
533011 Elastic stop nut M8Elastic stop nut M8
-
65340902 Shift handleShift handle
-
741008 Spring keySpring key
-
828247 ButtonButton
-
9418763 KeyKey
-
10293800070 Loctite 767, 8 ozLoctite 767, 8 oz
-
115142660 Belt guardBelt guard
-
125442726 PinPin
-
135443765 Spacer. 6900Spacer. 6900
-
1440290 Socket head screw M8 x 55. 6900Socket head screw M8 x 55. 6900
-
153125351 Shim. 6900Shim. 6900
-
1613056 Track. 6900Track. 6900
-
175318323 Cleat guideCleat guide
-
185318322 Slide guideSlide guide
-
195346405 Drive axle assy. 6900, Includes 19 to 24Drive axle assy. 6900, Includes 19 to 24
-
205344243 Drive axle. 6900Drive axle. 6900
-
21542013 Speedometer drive insertSpeedometer drive insert
-
22293800005 Loctite 271, 10mlLoctite 271, 10ml
-
23414931800 Sprocket. 6900Sprocket. 6900
-
24415067400 Sprocket. 6900Sprocket. 6900
-
25534430 Bearing housing setBearing housing set
-
2631UC205 Bearing. Includes 26 to 27Bearing. Includes 26 to 27
-
2710531 Lock screwLock screw
-
2840336 Hex. screw M8 x 20Hex. screw M8 x 20
-
29546421 Thrust ringThrust ring
-
30546336 WasherWasher
-
3120077 Washer 8mmWasher 8mm
-
32506151140 O-ringO-ring
-
33293800060 Loctite 243Loctite 243
