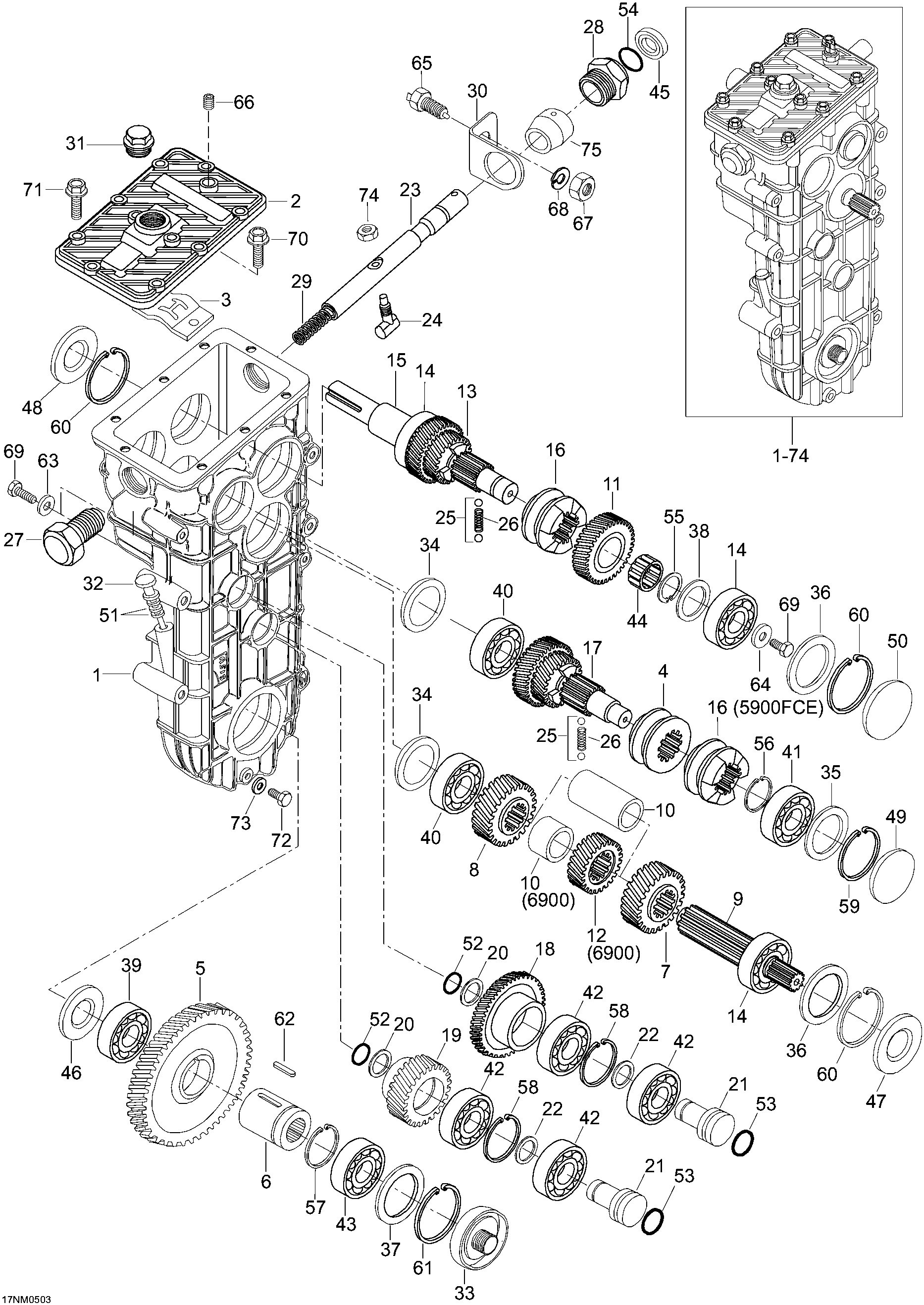

05- Transmission, 6900 для BRP Lynx Lynx 6900 - 2005
-
№АртикулНазвание
-
-870156245 Transmission assy. 6900Transmission assy. 6900
-
1875156138 HousingHousing
-
2875156043 CoverCover
-
3875156111 H-schemeH-scheme
-
4875156131 Clutch wheel. 6900Clutch wheel. 6900
-
5875156057 Gear Z=59. 6900Gear Z=59. 6900
-
6875136962 ShaftShaft
-
7875156136 Gear Z=27. 6900Gear Z=27. 6900
-
8875156054 Gear Z=34Gear Z=34
-
9875156069 ShaftShaft
-
10875156088 Sleeve. 6900Sleeve. 6900
-
11875156135 Gear Z=29. 6900Gear Z=29. 6900
-
12875156060 Gear Z=24Gear Z=24
-
13875156155 Variator shaft assy. 6900, Includes 13 to 15Variator shaft assy. 6900, Includes 13 to 15
-
14610063050 BearingBearing
-
15875156153 Sleeve. 6900Sleeve. 6900
-
16875156005 Clutch wheel. 6900Clutch wheel. 6900
-
17875156068 Reverse shaftReverse shaft
-
18875156059 Gear Z=33. 6900Gear Z=33. 6900
-
19875156058 Gear Z=26. 6900Gear Z=26. 6900
-
20875156094 RingRing
-
21875147204 ShaftShaft
-
22875147205 ShimShim
-
23875156072 ShaftShaft
-
24875156073 PinPin
-
25616810064 BallBall
-
26875156105 SpringSpring
-
27875156076 PluggPlugg
-
28875156077 SleeveSleeve
-
29875156078 SpringSpring
-
30875156242 BracketBracket
-
31875156098 PlugPlug
-
32875156097 DipstickDipstick
-
33875156104 PlugPlug
-
34875152953 PlugPlug
-
35617394252 Shim 0.3 mmShim 0.3 mm
-
36617395065 Adjustment shimAdjustment shim
-
37617395568 Adjustment shimAdjustment shim
-
38616092542 Axial washerAxial washer
-
396008 BearingBearing
-
40610063044G BearingBearing
-
41610063040 BearingBearing
-
42610063036 Bearing. 6900Bearing. 6900
-
43610060084 BearingBearing
-
44611002529 Needle bearingNeedle bearing
-
45614102031 Shaft sealShaft seal
-
46614102852 Shaft seal. 6900Shaft seal. 6900
-
46614102652 Shaft sealShaft seal
-
47614102562 Shaft sealShaft seal
-
48614103562 Shaft sealShaft seal
-
49614100052 PlugPlug
-
50614100062 PlugPlug
-
51614600725 O-ringO-ring
-
52614601224 O-ringO-ring
-
53614602431 O-ringO-ring
-
54614601523 O-ringO-ring
-
55617450025 Lock ringLock ring
-
56617450028 Lock ringLock ring
-
57617300040 Lock ringLock ring
-
58617330047 Lock ringLock ring
-
59617330052G Lock ringLock ring
-
60617330062 Lock ringLock ring
-
61617330068 Lock ringLock ring
-
62603345070 KeyKey
-
63501150902 Washer. 6900Washer. 6900
-
64875156112 WasherWasher
-
65654100225 SwitchSwitch
-
66640025012S ScrewScrew
-
6733021 Nut M12Nut M12
-
6820016 Spring washerSpring washer
-
6940036 Screw M8 x 20Screw M8 x 20
-
7040337 Screw M8 x 16Screw M8 x 16
-
71537001402 ScrewScrew
-
72528801342 PlugPlug
-
73615580812 Seal ringSeal ring
-
74510611002 NutNut
-
755446699 SleeveSleeve
