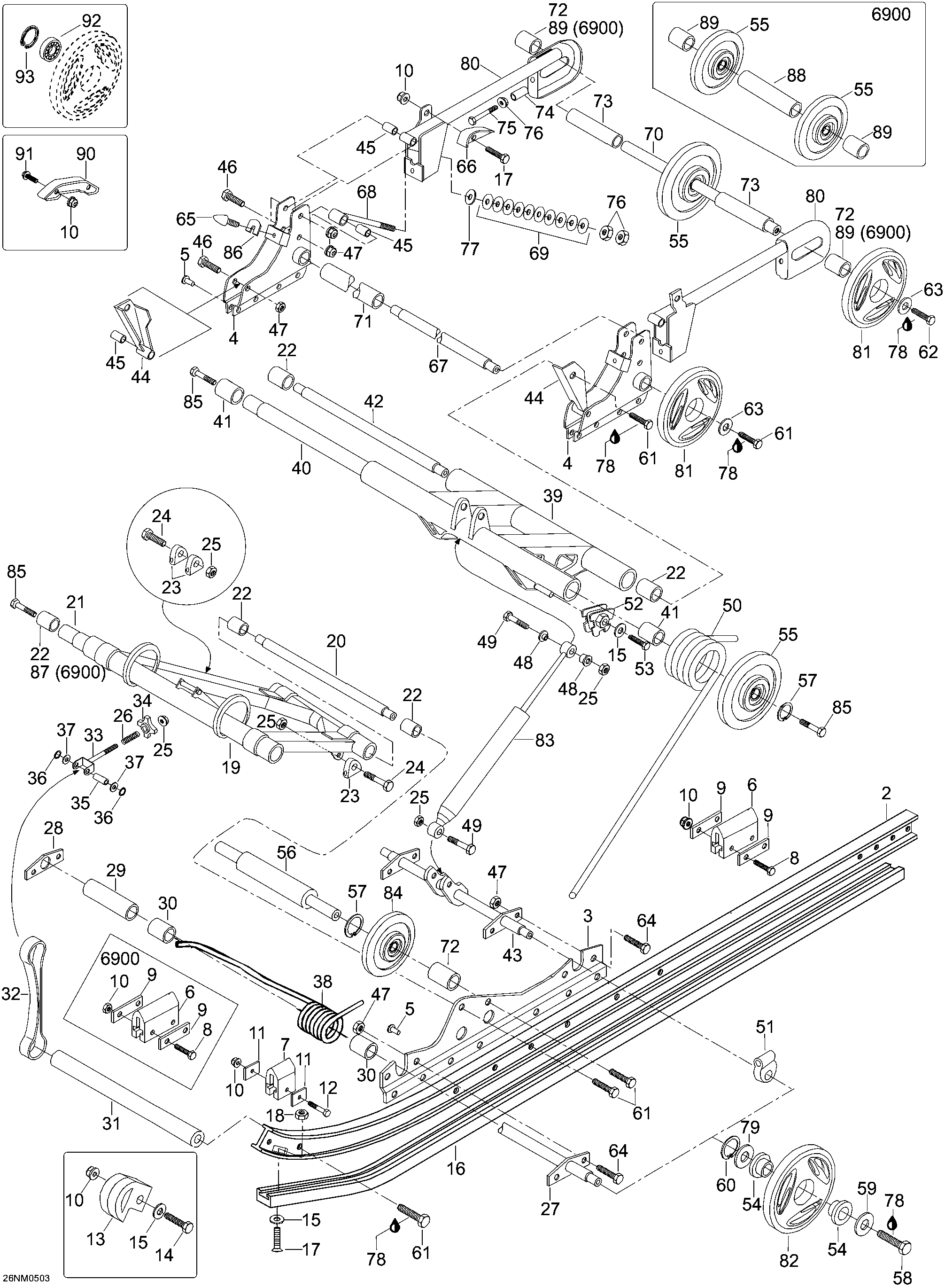

08- Rear Suspension, 6900 для BRP Lynx Lynx 6900 - 2005
-
№АртикулНазвание
-
15142866 R.H. Runner ass'y. Includes 1 to 4R.H. Runner ass'y. Includes 1 to 4
-
15142865 L.H. Runner ass'yL.H. Runner ass'y
-
25142864 RunnerRunner
-
35344811 R.H. SupportR.H. Support
-
35344810 L.H. SupportL.H. Support
-
4539673 R.H. SupportR.H. Support
-
4539672 L.H. SupportL.H. Support
-
5544212 RivetRivet
-
6570023100 Rubber stopper. 6900Rubber stopper. 6900
-
840002 Hex. screw M6 x 40. 6900Hex. screw M6 x 40. 6900
-
9548387 Plate. 6900Plate. 6900
-
1033200 Elastic flanged nut M6. 6900Elastic flanged nut M6. 6900
-
13605348954 Runner protectorRunner protector
-
1440031 Hex. screw M6 x 25Hex. screw M6 x 25
-
1520003 Washer 6 mmWasher 6 mm
-
16549582 Shoe runnerShoe runner
-
1740030 Hex. screw M6 x 20Hex. screw M6 x 20
-
1833010 Elastic stop nut M6Elastic stop nut M6
-
195242808 Front arm welded. 6900Front arm welded. 6900
-
20549695 AxleAxle
-
21542794 Axle. 6900Axle. 6900
-
22542770 Sleeve. 6900Sleeve. 6900
-
23548799 Spring supportSpring support
-
2440014 Hex. screw M10 x 40Hex. screw M10 x 40
-
2533012 Elastic stop nut M10Elastic stop nut M10
-
26414460600 SpringSpring
-
27539653 AxleAxle
-
28548469 Support plateSupport plate
-
295440313 SleeveSleeve
-
30548841 SleeveSleeve
-
31549718 Cross shaftCross shaft
-
325442604 Stopper strapStopper strap
-
335441643 Eye bolt adjusterEye bolt adjuster
-
34572034000 Adjuster knobAdjuster knob
-
355441645 PinPin
-
3641035 CirclipCirclip
-
3720005 WasherWasher
-
38538798 R.H. Spring. 6900R.H. Spring. 6900
-
38538797 L.H. Spring. 6900L.H. Spring. 6900
-
395343096 Rear arm welded. 6900Rear arm welded. 6900
-
405340577 Rear cross shaft. 6900Rear cross shaft. 6900
-
4131046 Slide BearingSlide Bearing
-
42549656 ShaftShaft
-
43539655 ShaftShaft
-
445440350 Lever, R.H.Lever, R.H.
-
445440349 Lever, L.H.Lever, L.H.
-
45545758 SleeveSleeve
-
4640008 Hex. screw M8 x 45Hex. screw M8 x 45
-
4733011 Elastic stop nut M8 DIN985 m8 ZneElastic stop nut M8 DIN985 m8 Zne
-
48544417 CushionCushion
-
4940017 Hex. screw M10 x 50Hex. screw M10 x 50
-
50538806 R.H. SpringR.H. Spring
-
50538805 L.H. SpringL.H. Spring
-
515442112 Spring support. 6900Spring support. 6900
-
52572030800 L.H. Cam adjusterL.H. Cam adjuster
-
52572030900 R.H. Cam adjusterR.H. Cam adjuster
-
5340114 Hex. screw M6 x 10Hex. screw M6 x 10
-
54503189534 CushionCushion
-
55503189568 Idler wheel 165. 6900Idler wheel 165. 6900
-
56549680 Shaft supportShaft support
-
5731001 CirclipCirclip
-
5840336 Hex. screw M8 x 20Hex. screw M8 x 20
-
59503183100 Washer, hardenedWasher, hardened
-
6031007 CirclipCirclip
-
6140335 Hex. screw M10 x 30Hex. screw M10 x 30
-
6240050 Hex. screw with cap M10 x 35Hex. screw with cap M10 x 35
-
63503183300 Washer, hardenedWasher, hardened
-
6440035 Hex. screw M8 x 16Hex. screw M8 x 16
-
65535455 Rubber stopperRubber stopper
-
66548262 ProtectorProtector
-
67541816 ShaftShaft
-
685440377 Bolt-eye adjusterBolt-eye adjuster
-
6925004 PlatePlate
-
705341979 Shaft. 6900Shaft. 6900
-
71541815 SleeveSleeve
-
72546577 Sleeve. 6900Sleeve. 6900
-
74605452332 SleeveSleeve
-
7540239 Hex. screw M10 x 100Hex. screw M10 x 100
-
7633004 Nut M10Nut M10
-
7720011 Washer 10 mmWasher 10 mm
-
78293800060 Loctite 243, 10ml blueLoctite 243, 10ml blue
-
7931091 ShimShim
-
80605252505 jatkon putki hits oikeajatkon putki hits oikea
-
80605252504 jatkon putki hits vasenjatkon putki hits vasen
-
81503190856 Idler wheel 165mm/Full MoonIdler wheel 165mm/Full Moon
-
82503190797 Idler wheel 135mm/Full MoonIdler wheel 135mm/Full Moon
-
83503189996 Shock. 6900Shock. 6900
-
84503191029 Sisatukipyora 135mm, mustaSisatukipyora 135mm, musta
-
8540314 Hex. screw M10 x 30Hex. screw M10 x 30
-
865440645 Shim plateShim plate
-
87541528 Sleeve. 6900Sleeve. 6900
-
885441980 Sleeve. 6900Sleeve. 6900
-
895440422 Sleeve. 6900Sleeve. 6900
-
905343191 Protector. 6900Protector. 6900
-
9140064 Lock screw M6 x 40. 6900Lock screw M6 x 40. 6900
-
92503190795 LaakeriLaakeri
-
9331002 CirclipCirclip
