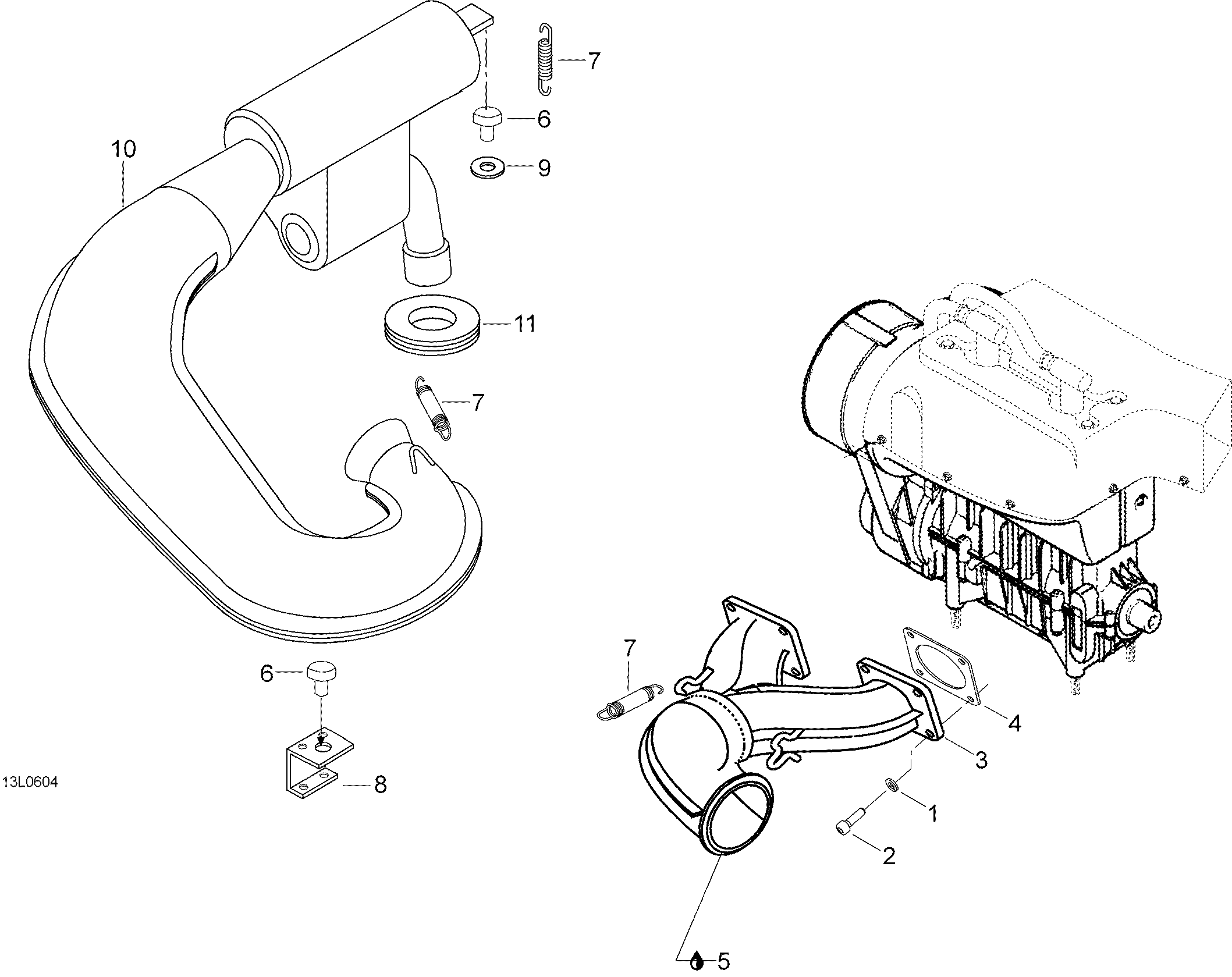

01- Exhaust System для BRP Lynx 5900 FCE - 2006
-
№АртикулНазвание
-
120014 Lock washer A8Lock washer A8
-
240135 Socket head screw M8 x 30Socket head screw M8 x 30
-
3420973512 Branch-YBranch-Y
-
4420831849 SealSeal
-
5293800090 Loctite, 80mlLoctite, 80ml
-
6514053654 Rubber damperRubber damper
-
7420938795 SpringSpring
-
85442681 SupportSupport
-
920087 Washer M14Washer M14
-
10420979853 Tuned pipeTuned pipe
-
11570039000 GrommetGrommet
