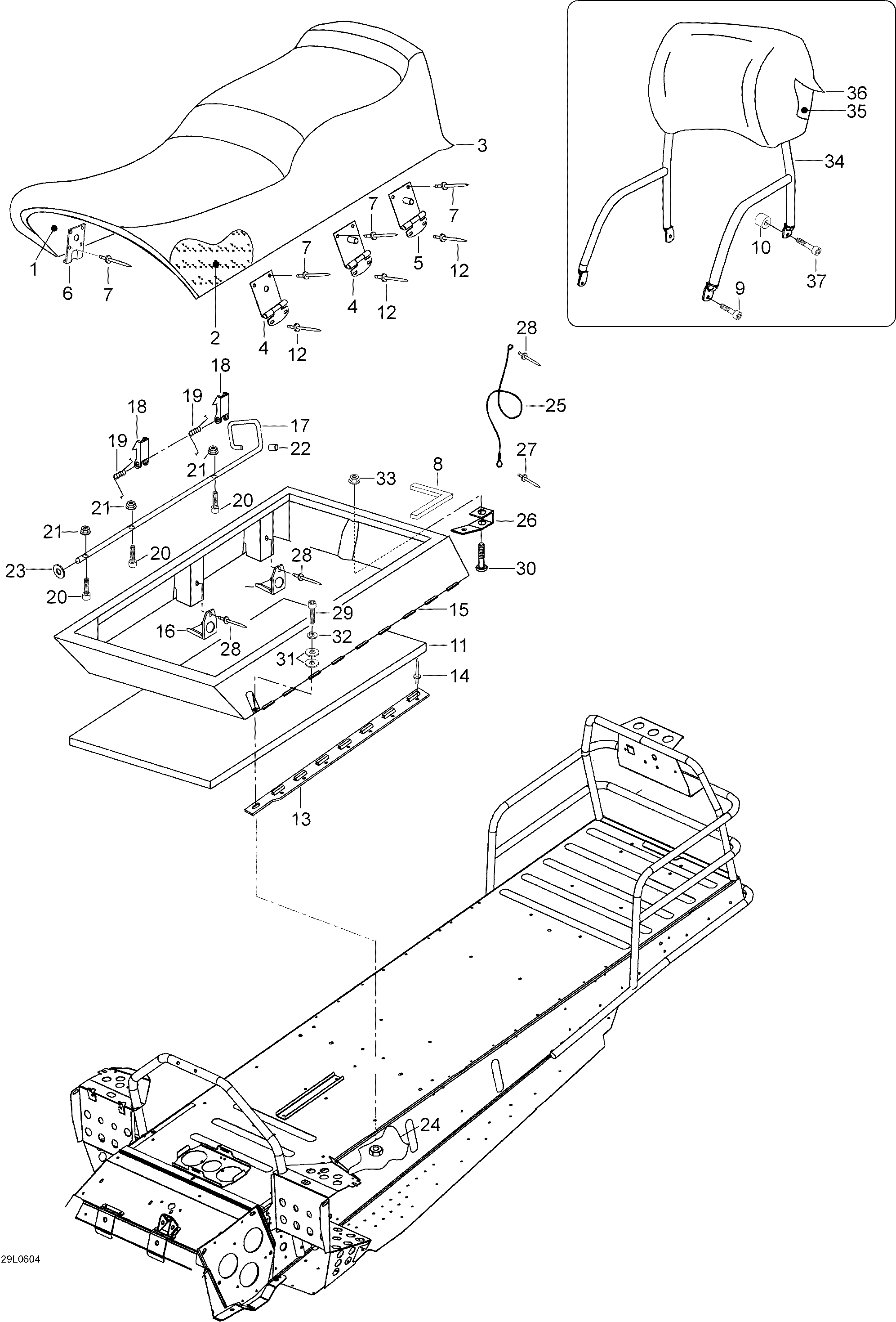

09- Seat для BRP Lynx 5900 FCE - 2006
-
№АртикулНазвание
-
1519394 Bottom of seatBottom of seat
-
2605148623 FoamFoam
-
3605153063 Seat coverSeat cover
-
4549874 Hinge for set ass'yHinge for set ass'y
-
55440581 Hinge for set ass'yHinge for set ass'y
-
6549732 Lock plate weld.Lock plate weld.
-
736071 RivetRivet
-
85440059 SealSeal
-
940388 Socket head screw M8 x 20Socket head screw M8 x 20
-
105440665 SpacerSpacer
-
115344621 FoamFoam
-
1236489 RivetRivet
-
135144029 Clip plate R.H.Clip plate R.H.
-
135144028 Clip plate L.H.Clip plate L.H.
-
1436083 RivetRivet
-
155142066 Seat boxSeat box
-
165443661 SupportSupport
-
175344987 Locking rodLocking rod
-
18605451589 Lock camLock cam
-
195444439 SpringSpring
-
2040144 Allen screw M4 x 20Allen screw M4 x 20
-
2133008 Elastic stop nut M4Elastic stop nut M4
-
2228019 PlugPlug
-
2331081 Washer 8mmWasher 8mm
-
2433066 Nut M6Nut M6
-
25546777 Retainer cableRetainer cable
-
265444464 Cable keeperCable keeper
-
2736038 RivetRivet
-
2836009 RivetRivet
-
2940052 Socket head screw M6 x 20Socket head screw M6 x 20
-
3040149 Locking screw M6 x 30Locking screw M6 x 30
-
3120009 Washer A6,4Washer A6,4
-
3220052 Lock washer 6mmLock washer 6mm
-
3333200 Elastic flanged nut M6Elastic flanged nut M6
-
345245664 BackrestBackrest
-
35539399 Backrest foamBackrest foam
-
365340917 Backrest coverBackrest cover
-
3740389 Socket head screw M8 x 30Socket head screw M8 x 30
