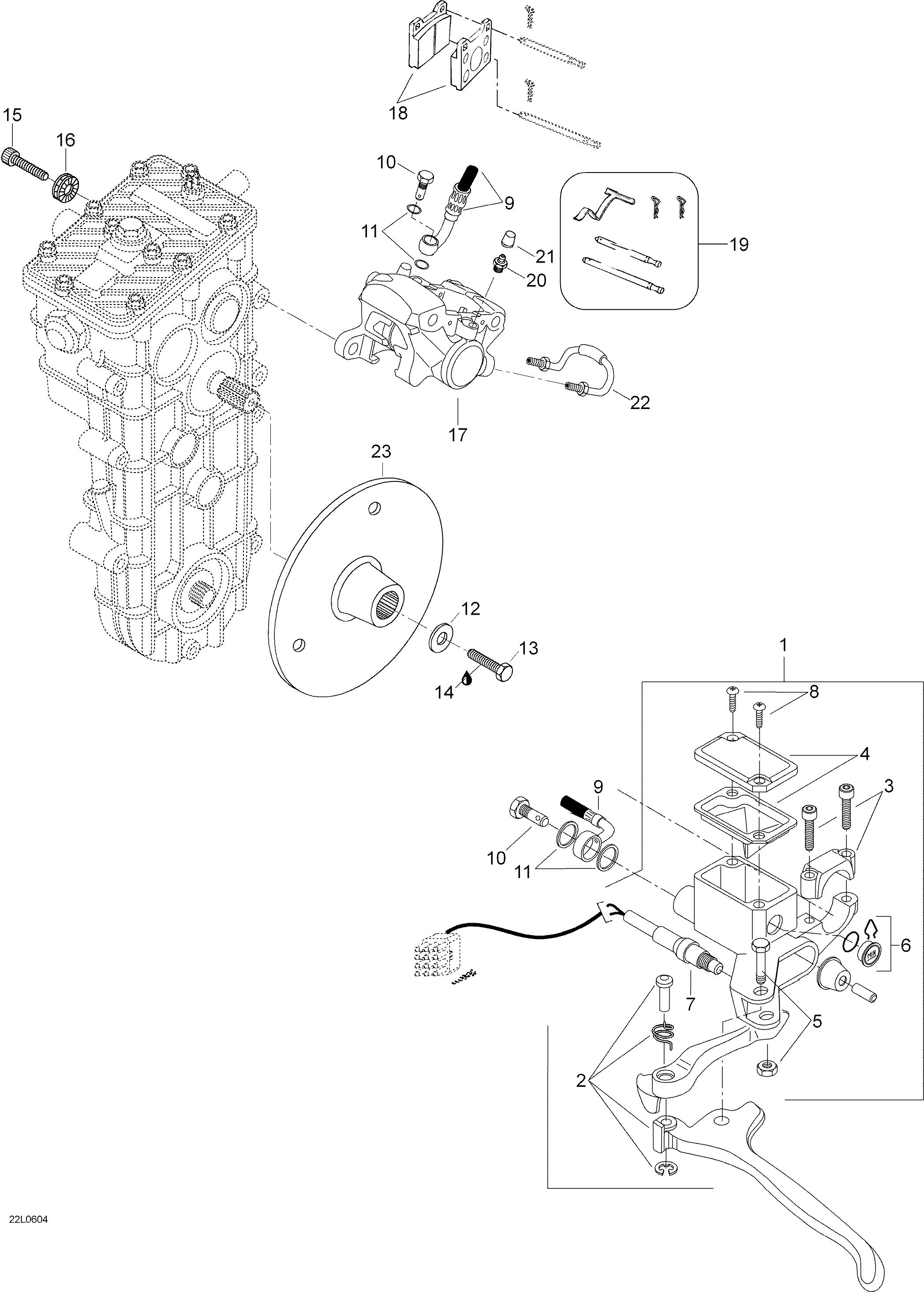

06- Brake для BRP Lynx 5900 FCE - 2006
-
№АртикулНазвание
-
1605352693 Master cylinder. Includes 1 to 8Master cylinder. Includes 1 to 8
-
2507032423 Short brake leverShort brake lever
-
3415029800 Clamp assyClamp assy
-
4415029900 CoverCover
-
5415030000 Pin assyPin assy
-
6414990600 WindowWindow
-
7507032366 Microswitch assyMicroswitch assy
-
8216141260 ScrewScrew
-
9507032219 Brake lineBrake line
-
10414920500 BoltBolt
-
11414920600 WasherWasher
-
12546336 WasherWasher
-
1340336 Hex. screw M8 x 20Hex. screw M8 x 20
-
14293800060 Loctite 243, 10mlLoctite 243, 10ml
-
1540277 Socket head screw M10 x 65Socket head screw M10 x 65
-
1620068 Lock washerLock washer
-
17507032412 Jarrukaliberi Brembo 20.3500.12. Includes 24 to 28Jarrukaliberi Brembo 20.3500.12. Includes 24 to 28
-
18415084600 Brake lining kitBrake lining kit
-
19414990700 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
20414989800 Screw-bleederScrew-bleeder
-
21414989700 BootBoot
-
22414989900 TubeTube
-
23605350507 Brake disk assyBrake disk assy
