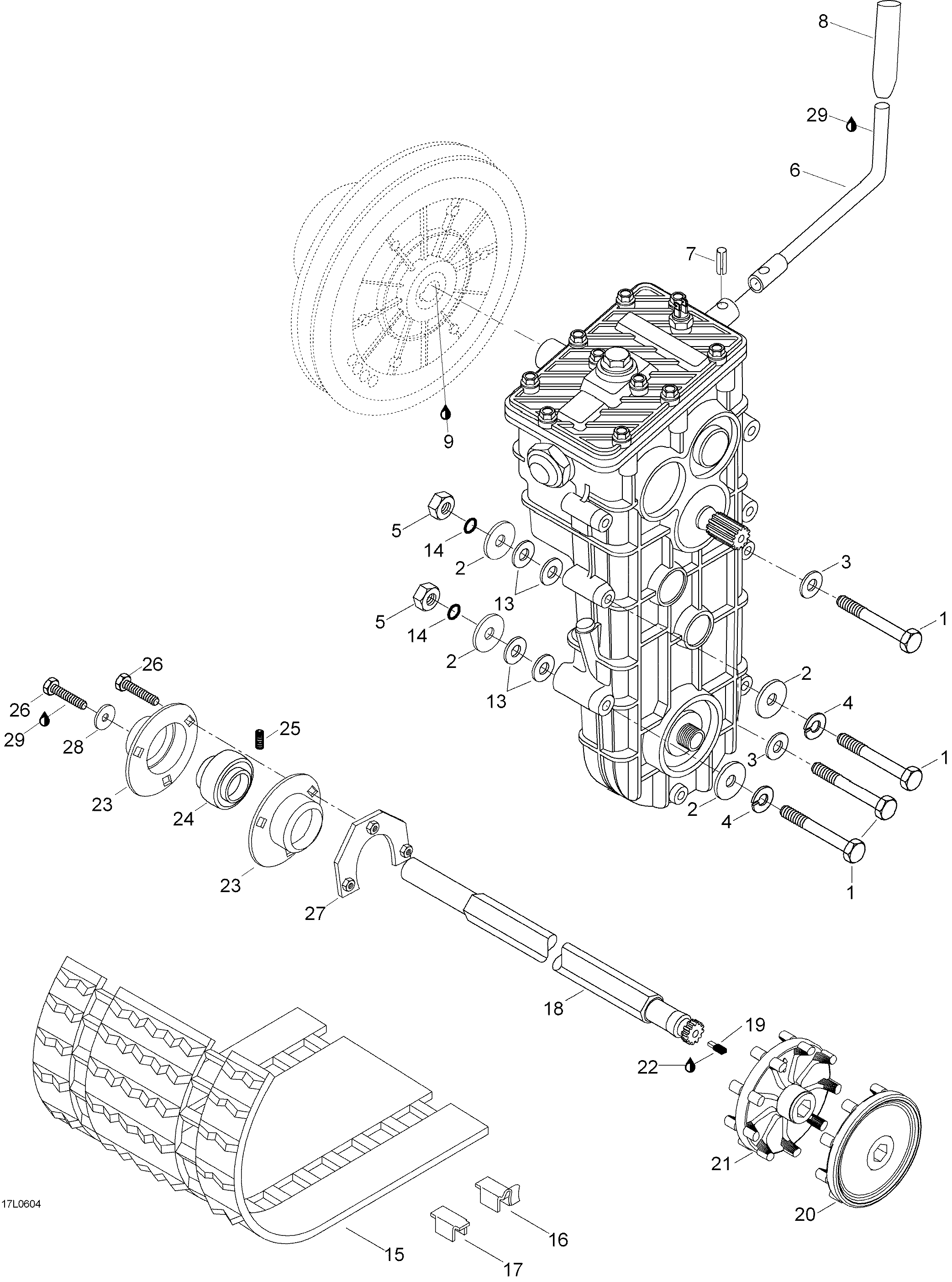

05- Track And drive Axle для BRP Lynx 5900 FCE - 2006
-
№АртикулНазвание
-
140012 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
220010 Washer 8mmWasher 8mm
-
320004 Washer 8mmWasher 8mm
-
420014 Lock washer 8mmLock washer 8mm
-
533011 Elastic stop nut M8Elastic stop nut M8
-
65340902 Shift handleShift handle
-
741008 Spring keySpring key
-
828247 ButtonButton
-
9293800070 Loctite 767, 8 ozLoctite 767, 8 oz
-
115142660 Belt guardBelt guard
-
125442726 PinPin
-
1320077 Washer A8,4Washer A8,4
-
14506151140 O-ringO-ring
-
1513055 Track. Includes 15 to 17Track. Includes 15 to 17
-
165318323 Cleat guideCleat guide
-
175318322 Slide guideSlide guide
-
-5344384 Drive axle assy. Includes 18 to 22Drive axle assy. Includes 18 to 22
-
185341662 Drive axleDrive axle
-
19542013 Speedometer drive insertSpeedometer drive insert
-
205342920 SprocketSprocket
-
21539750 SprocketSprocket
-
22293800005 Loctite 271, 10mlLoctite 271, 10ml
-
23534430 Bearing housing setBearing housing set
-
2431UC205 Bearing. Includes 24 to 25Bearing. Includes 24 to 25
-
2510531 Lock screwLock screw
-
2640336 Hex. screw M8 x 20Hex. screw M8 x 20
-
27546421 Thrust ringThrust ring
-
28546336 WasherWasher
-
29293800060 Loctite 243, 10mlLoctite 243, 10ml
