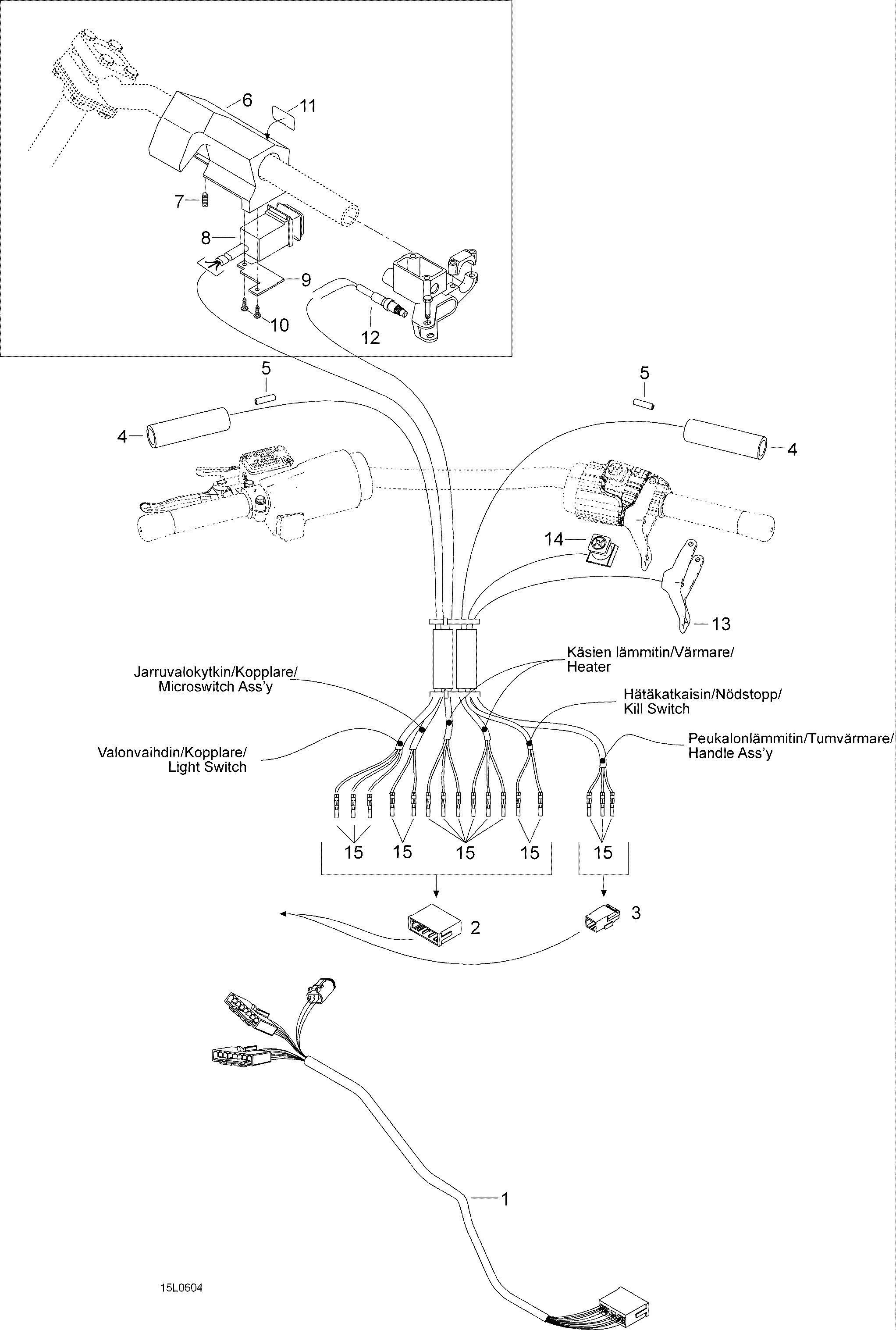

10- Steering Harness для BRP Lynx 5900 FCE - 2006
-
№АртикулНазвание
-
15248351 Wiring harnessWiring harness
-
242617 Male connector housing (15 circuit)Male connector housing (15 circuit)
-
342271 Male connector housing (3 circuit)Male connector housing (3 circuit)
-
4515175664 HeaterHeater
-
539023 TubingTubing
-
-515175492 Light switch housing ass'y. Includes 6 to 11Light switch housing ass'y. Includes 6 to 11
-
6572079500 HousingHousing
-
7414440800 Set screwSet screw
-
8515175371 SwitchSwitch
-
9517283800 Housing-plateHousing-plate
-
10414473200 ScrewScrew
-
11415025500 Switch decalSwitch decal
-
12507032334 Microswitch ass'yMicroswitch ass'y
-
13512059144 Throttle handleThrottle handle
-
14515175410 Switch killSwitch kill
-
1542603 ConnectorConnector
