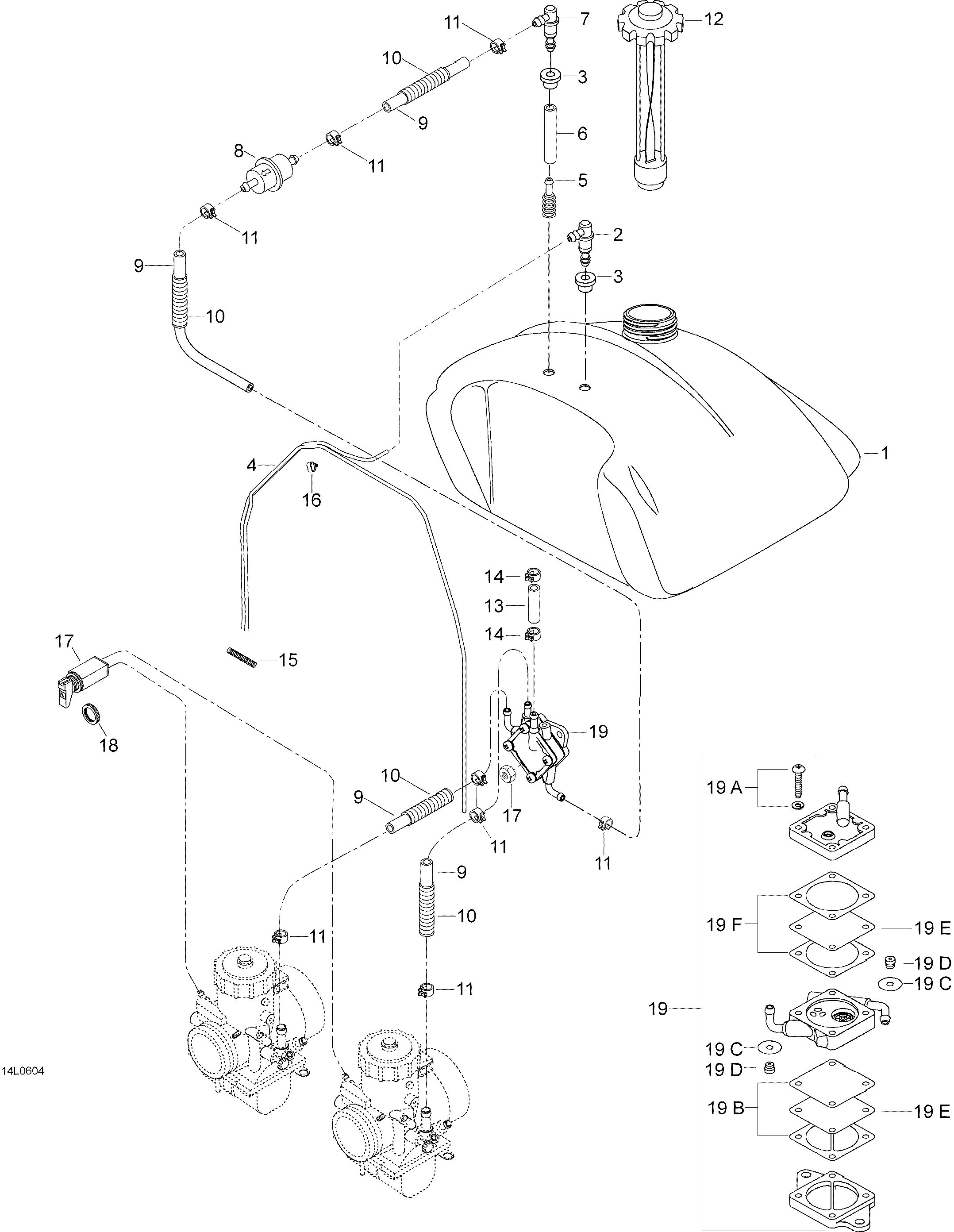

02- Fuel System для BRP Lynx 5900 FCE - 2006
-
№АртикулНазвание
-
1519393 Fuel tankFuel tank
-
2533535 Connector-maleConnector-male
-
328037 GrommetGrommet
-
439035 AirpipeAirpipe
-
5414872100 Fuel FilterFuel Filter
-
639048 Fuel hoseFuel hose
-
75341709 Connector-maleConnector-male
-
8605352516 Fuel filterFuel filter
-
939004 Fuel hoseFuel hose
-
1028012 Spiral tubeSpiral tube
-
11414554800 ClampClamp
-
12605349994 CapCap
-
1339001 Fuel hoseFuel hose
-
14414420700 ClampClamp
-
1525003 SpringSpring
-
16513032923 Clamp tubeClamp tube
-
1733010 Elastic stop nut M6. Includes 17 to 18Elastic stop nut M6. Includes 17 to 18
-
18512059094 Plastic nutPlastic nut
-
1919058 Fuel pumpFuel pump
-
19b404902300 GasketGasket
-
19c404902100 GrommetGrommet
-
19d275500042 ValveValve
-
19e404902200 DiaphragmDiaphragm
-
19f404902400 GasketGasket
-
2033010 Elastic stop nut M6Elastic stop nut M6
