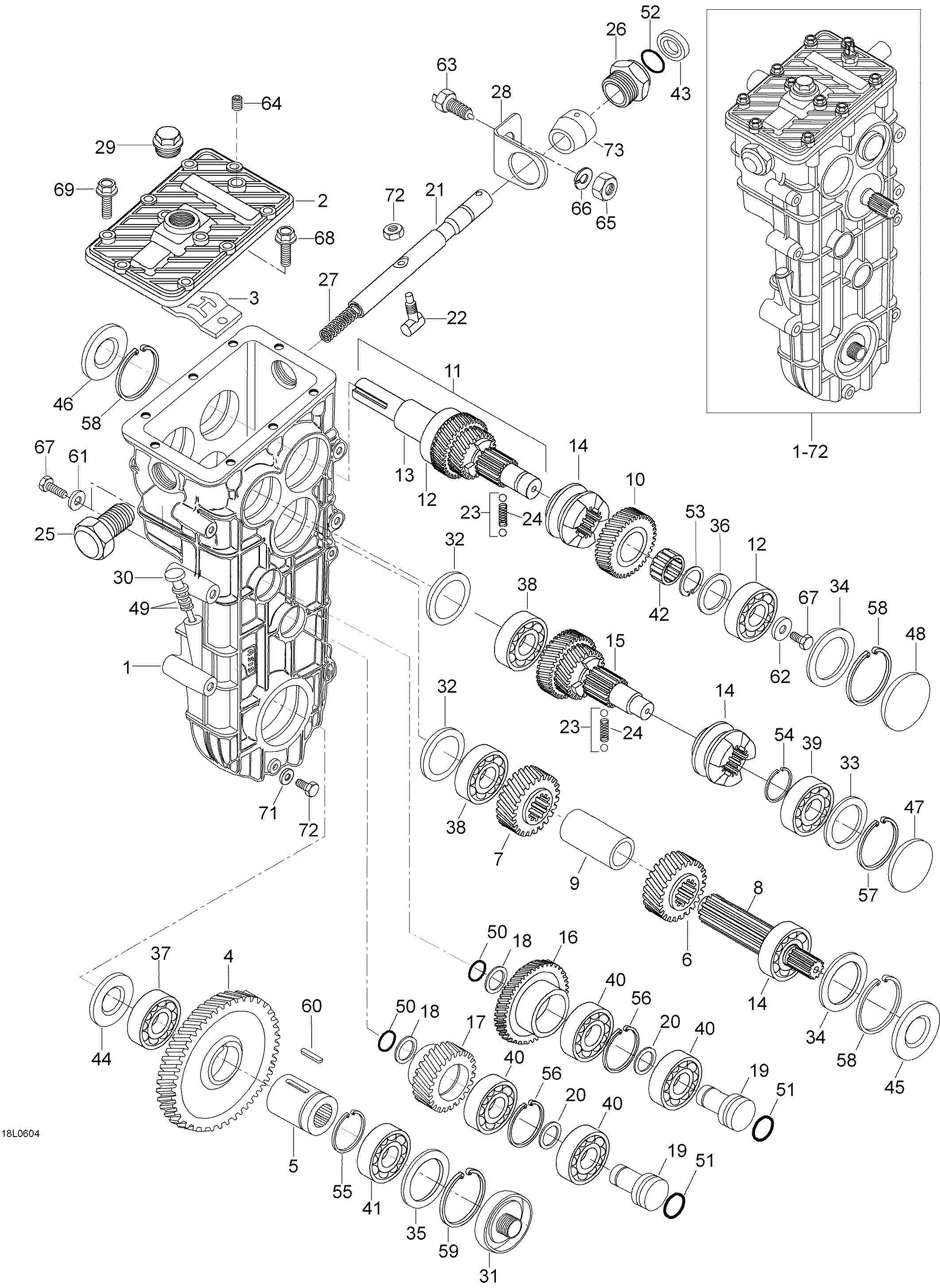

05- Transmission для BRP Lynx 5900 FCE - 2006
-
№АртикулНазвание
-
-870156214 Transmission assyTransmission assy
-
1875156138 HousingHousing
-
2875156043 CoverCover
-
3875156111 H-schemeH-scheme
-
4875156048 Gear Z=55Gear Z=55
-
5875136962 ShaftShaft
-
6875156051 Gear Z=29Gear Z=29
-
7875156054 Gear Z=34Gear Z=34
-
8875156069 ShaftShaft
-
9875156087 SleeveSleeve
-
10875156052 Gear Z=27Gear Z=27
-
11875156063 Variator shaft assy. Includes 11 to 13Variator shaft assy. Includes 11 to 13
-
12610063050 BearingBearing
-
13875156089 SleeveSleeve
-
14875156005 Clutch wheelClutch wheel
-
15875156068 Reverse shaftReverse shaft
-
16875156050 Gear Z=28Gear Z=28
-
17875156049 Gear Z=31Gear Z=31
-
18875156094 RingRing
-
19875147204 ShaftShaft
-
20875147205 ShimShim
-
21875156072 ShaftShaft
-
22875156073 PinPin
-
23616810064 BallBall
-
24875156105 SpringSpring
-
25875156076 PluggPlugg
-
26875156077 SleeveSleeve
-
27875156078 SpringSpring
-
28875156242 BracketBracket
-
29875156098 PlugPlug
-
30875156097 DipstickDipstick
-
31875156104 PlugPlug
-
32875152953 PlugPlug
-
33617394252 Shim 0.3 mmShim 0.3 mm
-
34617395065 Adjustment shimAdjustment shim
-
35617395568 Adjustment shimAdjustment shim
-
36616092542 Axial washerAxial washer
-
376008 BearingBearing
-
38610063044G BearingBearing
-
39610063040 BearingBearing
-
40610063035 BearingBearing
-
41610060084 BearingBearing
-
42611002529 Needle bearingNeedle bearing
-
43614102031 Shaft sealShaft seal
-
44614102652 Shaft sealShaft seal
-
45614102562 Shaft sealShaft seal
-
46614103562 Shaft sealShaft seal
-
47614100052 PlugPlug
-
48614100062 PlugPlug
-
49614600725 O-ringO-ring
-
50614601224 O-ringO-ring
-
51614602431 O-ringO-ring
-
52614601523 O-ringO-ring
-
53617450025 Lock ringLock ring
-
54617450028 Lock ringLock ring
-
55617300040 Lock ringLock ring
-
56617330047 Lock ringLock ring
-
57617330052G Lock ringLock ring
-
58617330062 Lock ringLock ring
-
59617330068 Lock ringLock ring
-
60603345070 KeyKey
-
61875156099 WasherWasher
-
62875156112 WasherWasher
-
63654100225 SwitchSwitch
-
64640025012S ScrewScrew
-
6533021 Nut M12Nut M12
-
6620016 Spring washerSpring washer
-
6740036 Screw M8 x 20Screw M8 x 20
-
6840337 Screw M8 x 16Screw M8 x 16
-
69537001402 ScrewScrew
-
70528801342 PlugPlug
-
71615580812 Seal ringSeal ring
-
72510611002 NutNut
-
735446699 SleeveSleeve
