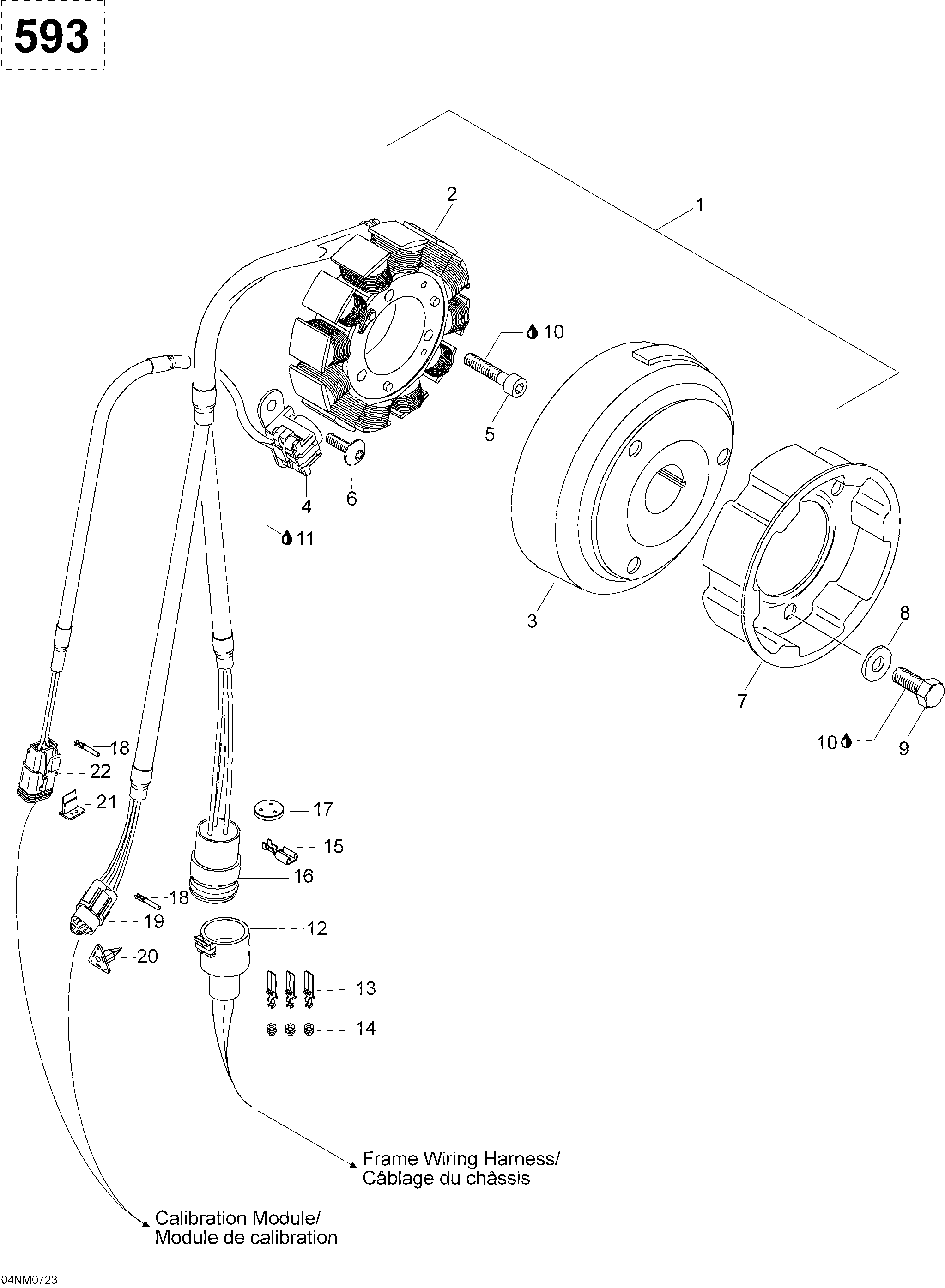

01- Ignition для BRP Lynx ST 600 - 2007
-
№АртикулНазвание
-
1420888195 Magnetto ass'y 12V7290W. Includes 1 to 4Magnetto ass'y 12V7290W. Includes 1 to 4
-
2420888619 Stator ass'yStator ass'y
-
3420889344 FlywheelFlywheel
-
4420966836 Pick up ass'yPick up ass'y
-
5420840880 Socket head screw M6 x 30Socket head screw M6 x 30
-
6420640321 Taptite screw M6 x 16Taptite screw M6 x 16
-
7420852590 Starting pulleyStarting pulley
-
8420827405 Lock washer 8 mmLock washer 8 mm
-
9420841520 Socket head screw M8 x 12Socket head screw M8 x 12
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12409207900 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
13409011100 Male terminalMale terminal
-
14409208500 SealSeal
-
15409011900 Female terminalFemale terminal
-
16409208200 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
18278000632 Female terminalFemale terminal
-
19409207400 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
20409207200 Female lock (3 circuits)Female lock (3 circuits)
-
21409207100 Female lock (2 circuits)Female lock (2 circuits)
-
22409207300 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
