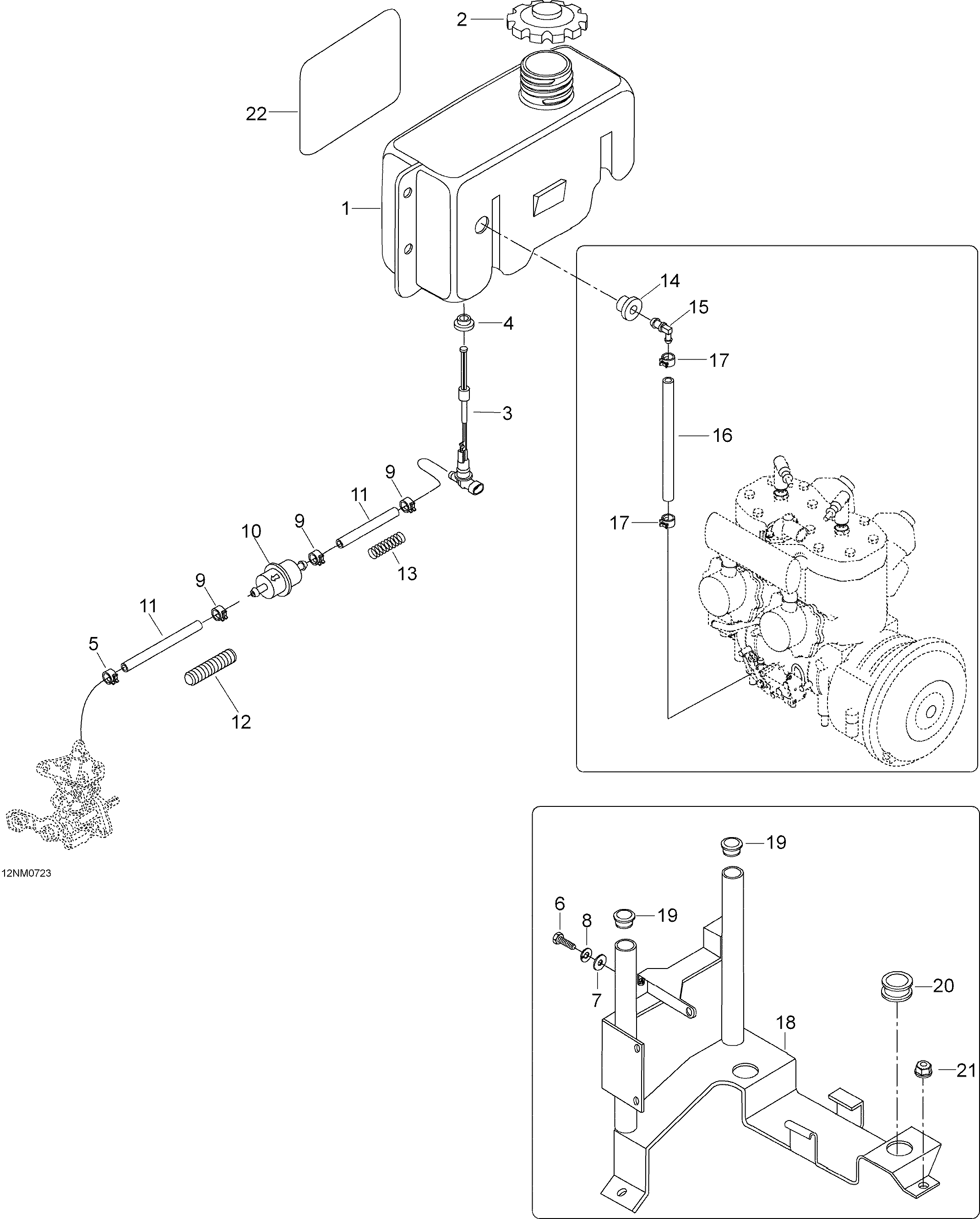

02- Oil System для BRP Lynx ST 600 - 2007
-
№АртикулНазвание
-
15146370 Oil tankOil tank
-
2519000044 Oil tank capOil tank cap
-
3605452095 Oil level senderOil level sender
-
4570023000 GrommetGrommet
-
5414420700 ClampClamp
-
640322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
720009 Washer A6,4Washer A6,4
-
820052 Lock washer A6Lock washer A6
-
9414415200 ClampClamp
-
10414536500 Oil filterOil filter
-
1139046 Oil lineOil line
-
1228015 TubingTubing
-
1325005 SpringSpring
-
14570135100 GrommetGrommet
-
15414580700 FittingFitting
-
1639004 HoseHose
-
17414554800 ClampClamp
-
185246593 SupportSupport
-
1928136 PlugPlug
-
205446766 GrommetGrommet
-
2133200 Elastic flanged nut M6Elastic flanged nut M6
-
225443578 Heat-protectorHeat-protector
