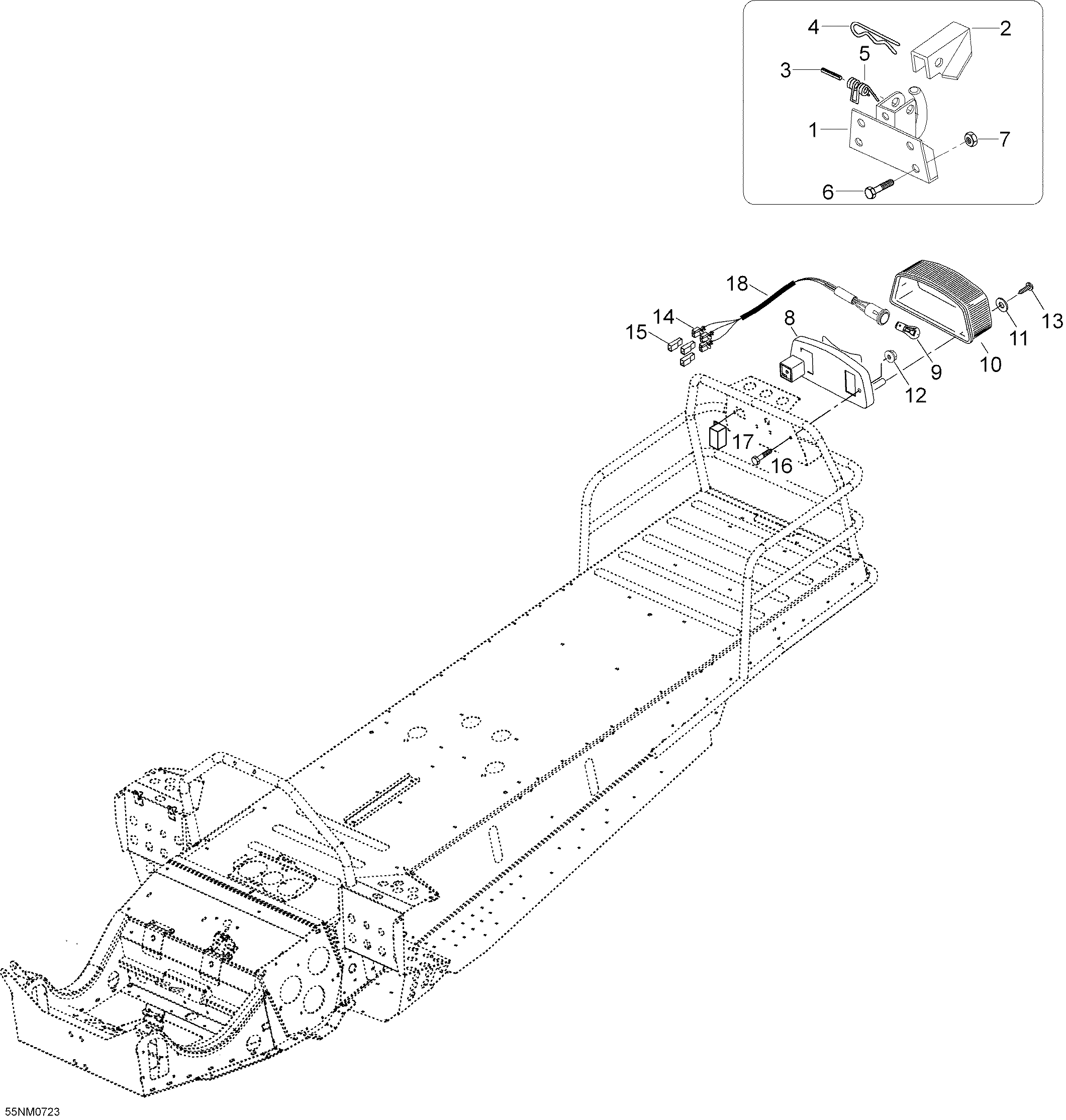

09- Rack для BRP Lynx ST 600 - 2007
-
№АртикулНазвание
-
-5344156 Hitch Assy. Includes 1 to 5Hitch Assy. Includes 1 to 5
-
15344208 Hitch WeldHitch Weld
-
25440767 LockLock
-
341012 Spring PinSpring Pin
-
441029 Needle PinNeedle Pin
-
5545693 SpringSpring
-
640336 Hex. screw M8 x 20Hex. screw M8 x 20
-
733011 Elastic stop nut M8Elastic stop nut M8
-
8510004061 Taillamp housingTaillamp housing
-
9410504000 BulbBulb
-
10414513700 LensLens
-
11414516400 WasherWasher
-
1233200 Elastic flanged nut M6Elastic flanged nut M6
-
13414516300 ScrewScrew
-
1442178 ConnectorConnector
-
1542179 Connector housingConnector housing
-
1640032 Hex. screw M6 x 30Hex. screw M6 x 30
-
175345713 CoverCover
-
1839023 TubingTubing
