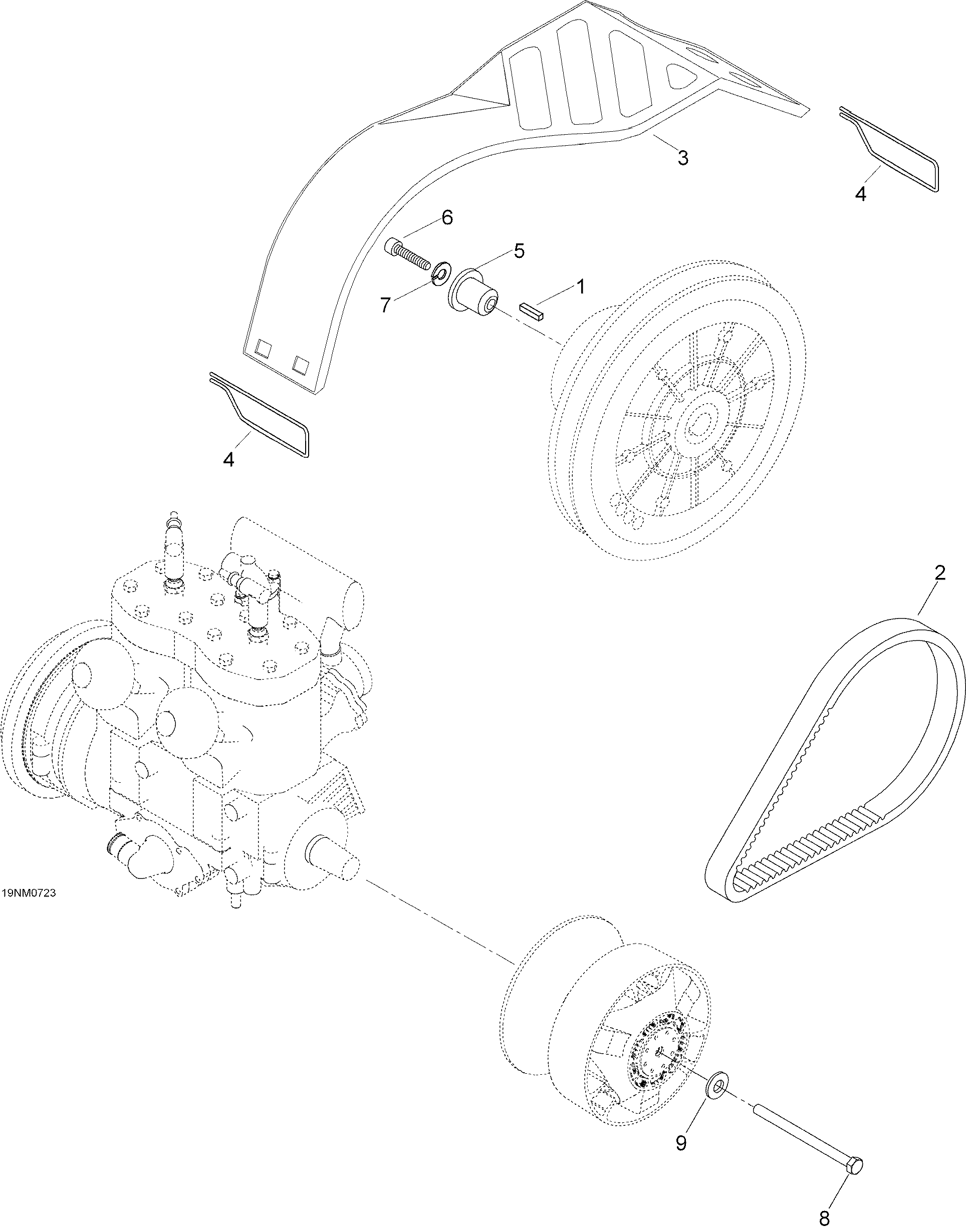

05- Pulley System для BRP Lynx ST 600 - 2007
-
№АртикулНазвание
-
1418763 KeyKey
-
2417300155 Drive belt. ST 600Drive belt. ST 600
-
35146001 Belt quard. ST 600Belt quard. ST 600
-
45442726 PinPin
-
55443201 SleeveSleeve
-
640286 Socket head screw M8 x 45Socket head screw M8 x 45
-
720014 Lock washer A8Lock washer A8
-
8417120000 Screw. ST 600Screw. ST 600
-
920110 Lock washer. ST 600Lock washer. ST 600
