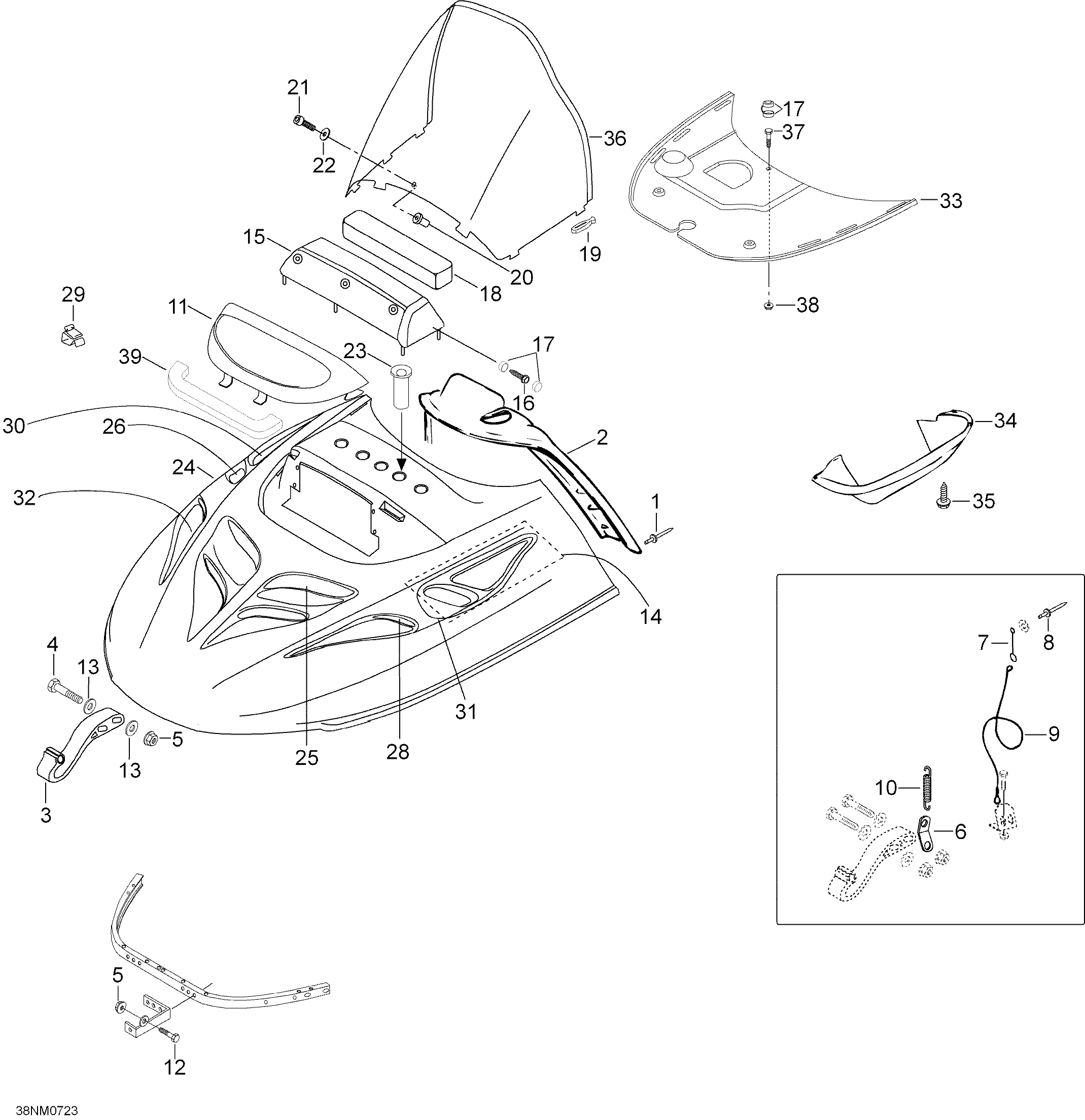

09- Hood для BRP Lynx ST 600 - 2007
-
№АртикулНазвание
-
136036 RivetRivet
-
2605148419 ConsoleConsole
-
35343075 HingeHinge
-
440193 Hex. screw M6 x 50Hex. screw M6 x 50
-
533200 Elastic flanged nut M6Elastic flanged nut M6
-
65443123 Spring plateSpring plate
-
7605449395 Cable keeperCable keeper
-
836005 RivetRivet
-
95346947 Retainer cableRetainer cable
-
105442675 SpringSpring
-
11605252351 Lamp moldingLamp molding
-
1240084 Hex. screw M6 x 45Hex. screw M6 x 45
-
1320009 Washer A6,4Washer A6,4
-
1444001 Reflective sheet (1000mm x 1000mm)Reflective sheet (1000mm x 1000mm)
-
15605149010 CoverCover
-
1640901 Plastofast-screw 5 x 20Plastofast-screw 5 x 20
-
17282000 Nut protectorNut protector
-
18605349056 FilterFilter
-
19570023800 LatchLatch
-
2028055 Well-nutWell-nut
-
2140156 Screw M5 x 20Screw M5 x 20
-
2220008 Washer A5,3Washer A5,3
-
23605449084 PipePipe
-
24605354437 Hood, pre ass'y. Includes 24-32Hood, pre ass'y. Includes 24-32
-
255142669 Grill, middleGrill, middle
-
265242671 R.H. GrillR.H. Grill
-
265242899 L.H. GrillL.H. Grill
-
285242672 R.H. GrillR.H. Grill
-
285342673 L.H. GrillL.H. Grill
-
29414227300 ClipClip
-
305342990 R.H. deckR.H. deck
-
315343408 L.H. deckL.H. deck
-
325343409 Fan deckFan deck
-
335246742 Tween-deckTween-deck
-
345146986 Outlet ductOutlet duct
-
35414644300 DartDart
-
365147892 WindscreenWindscreen
-
3740179 Screw M5 x 25Screw M5 x 25
-
3833062 Elastic flanged nut M5Elastic flanged nut M5
-
39605349151 SealSeal
