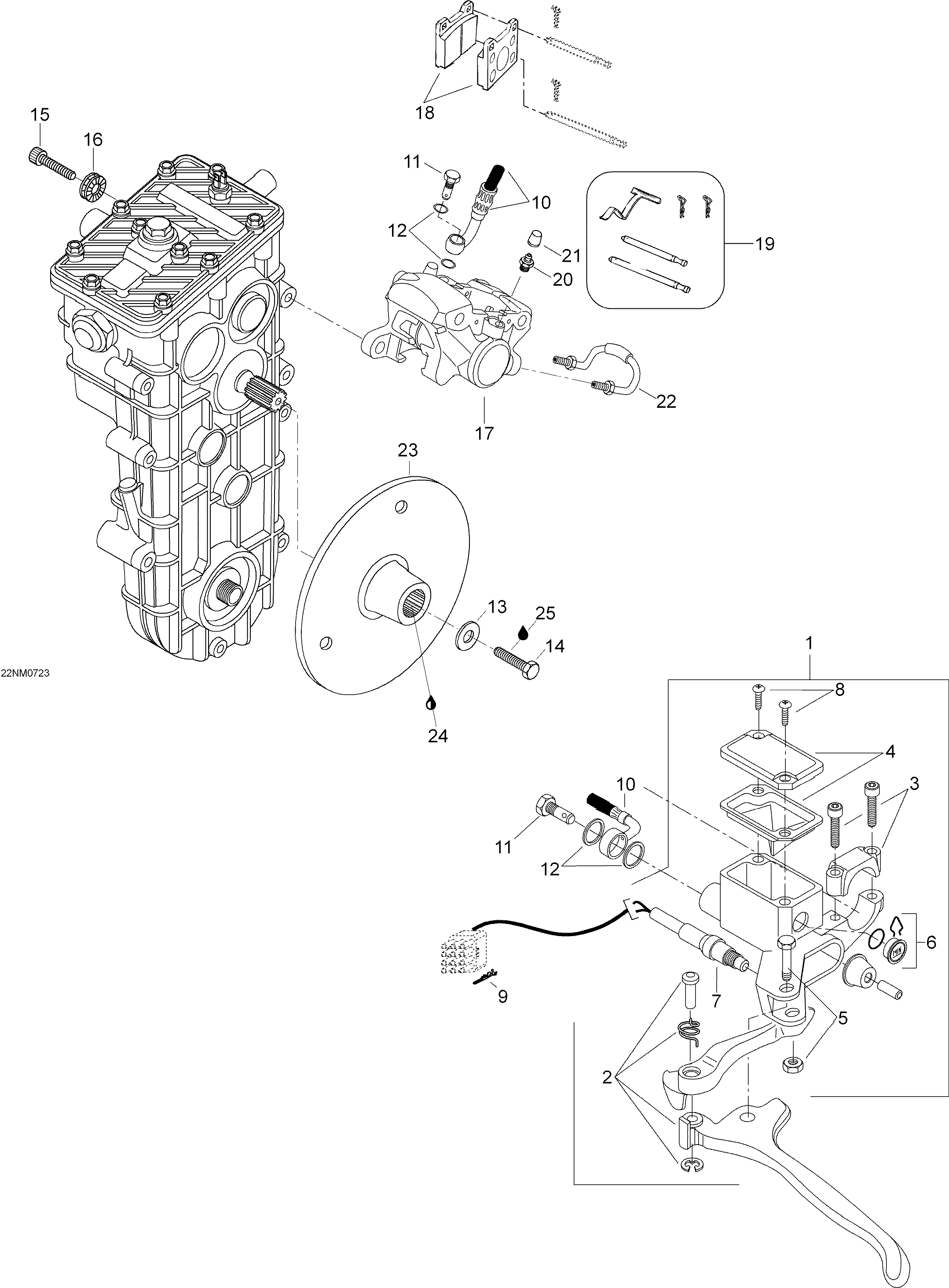

06- Brake для BRP Lynx ST 600 - 2007
-
№АртикулНазвание
-
1605352693 Master cylinder. Imcludes 1 to 8Master cylinder. Imcludes 1 to 8
-
2507032423 Short brake leverShort brake lever
-
3415029800 Clamp assyClamp assy
-
4415029900 CoverCover
-
5415030000 Pin ass'yPin ass'y
-
6414990600 WindowWindow
-
7507032366 Microswitch ass'yMicroswitch ass'y
-
8216141260 ScrewScrew
-
9
-
10507032219 HoseHose
-
11414920500 Banjo boltBanjo bolt
-
12414920600 WasherWasher
-
13546336 WasherWasher
-
1440336 Hex. screw M8 x 20Hex. screw M8 x 20
-
1540277 Socket head screw M10 x 65Socket head screw M10 x 65
-
1620068 Lock washer D10Lock washer D10
-
17507032412 Caliper. Imcludes 17 to 22Caliper. Imcludes 17 to 22
-
18415084600 Brake lining kitBrake lining kit
-
19414990700 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
20414989800 Bleeder screwBleeder screw
-
21414989700 BootBoot
-
22414989900 TubeTube
-
23605354606 Brake diskBrake disk
-
24293800070 Loctite 767, Antiseize lubricant, 8ozLoctite 767, Antiseize lubricant, 8oz
-
2532028 Loctite 243 50ml blueLoctite 243 50ml blue
