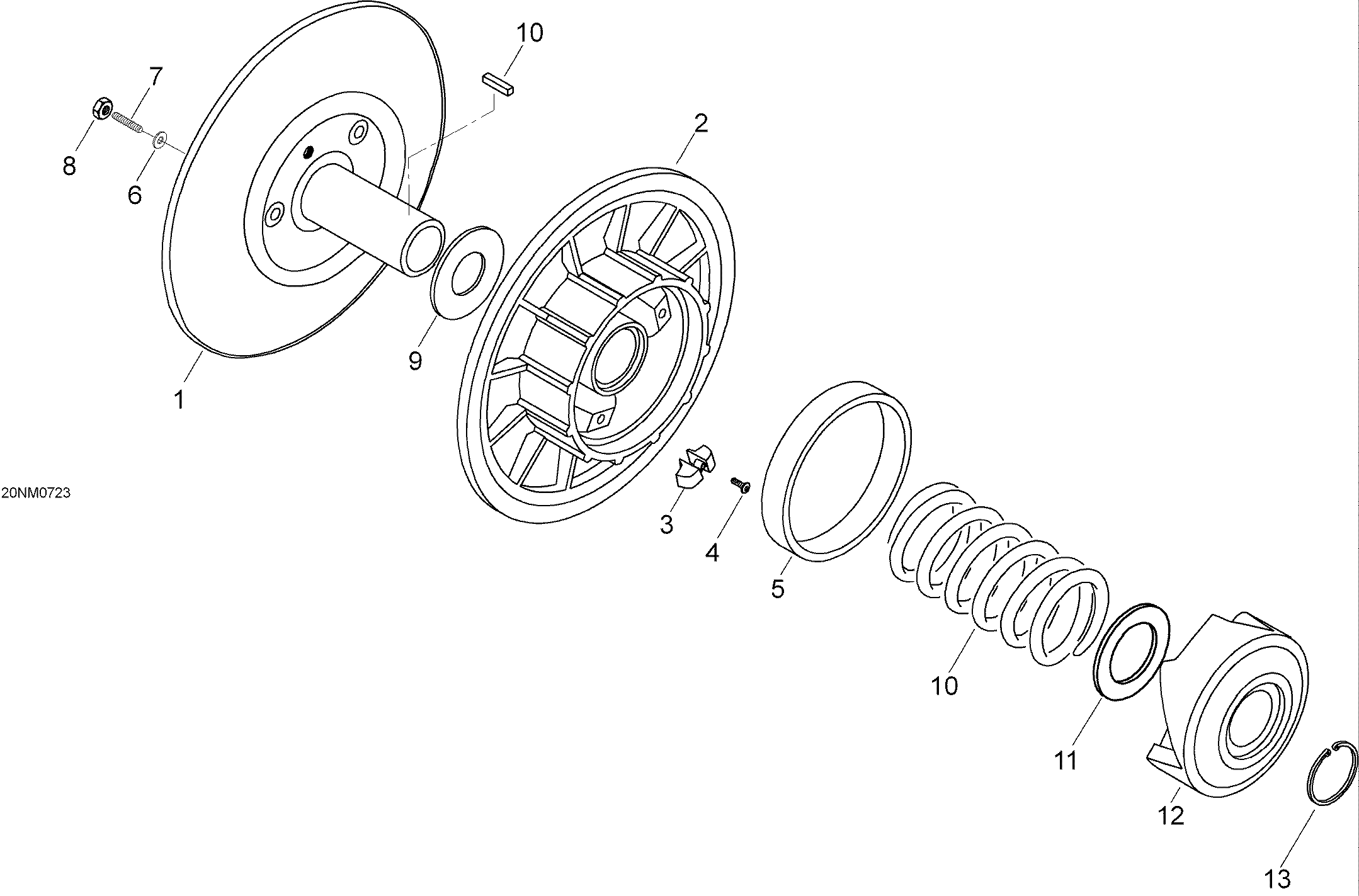

05- Driven pulley для BRP Lynx ST 600 - 2007
-
№АртикулНазвание
-
1140065 Fixed half pulleyFixed half pulley
-
2140066 Sliding half pulley. Includes 2 to 5Sliding half pulley. Includes 2 to 5
-
3140068 Cam shoeCam shoe
-
4619100006 ScrewScrew
-
5140053 Cam bushingCam bushing
-
6420245370 WasherWasher
-
7619100003 Hexagonal head screwHexagonal head screw
-
8232061414 NutNut
-
9504099600 WasherWasher
-
10417119100 Spring blueSpring blue
-
11619100007 Stop washerStop washer
-
12140070 Fix cam 40Fix cam 40
-
13371903100 Snap ringSnap ring
