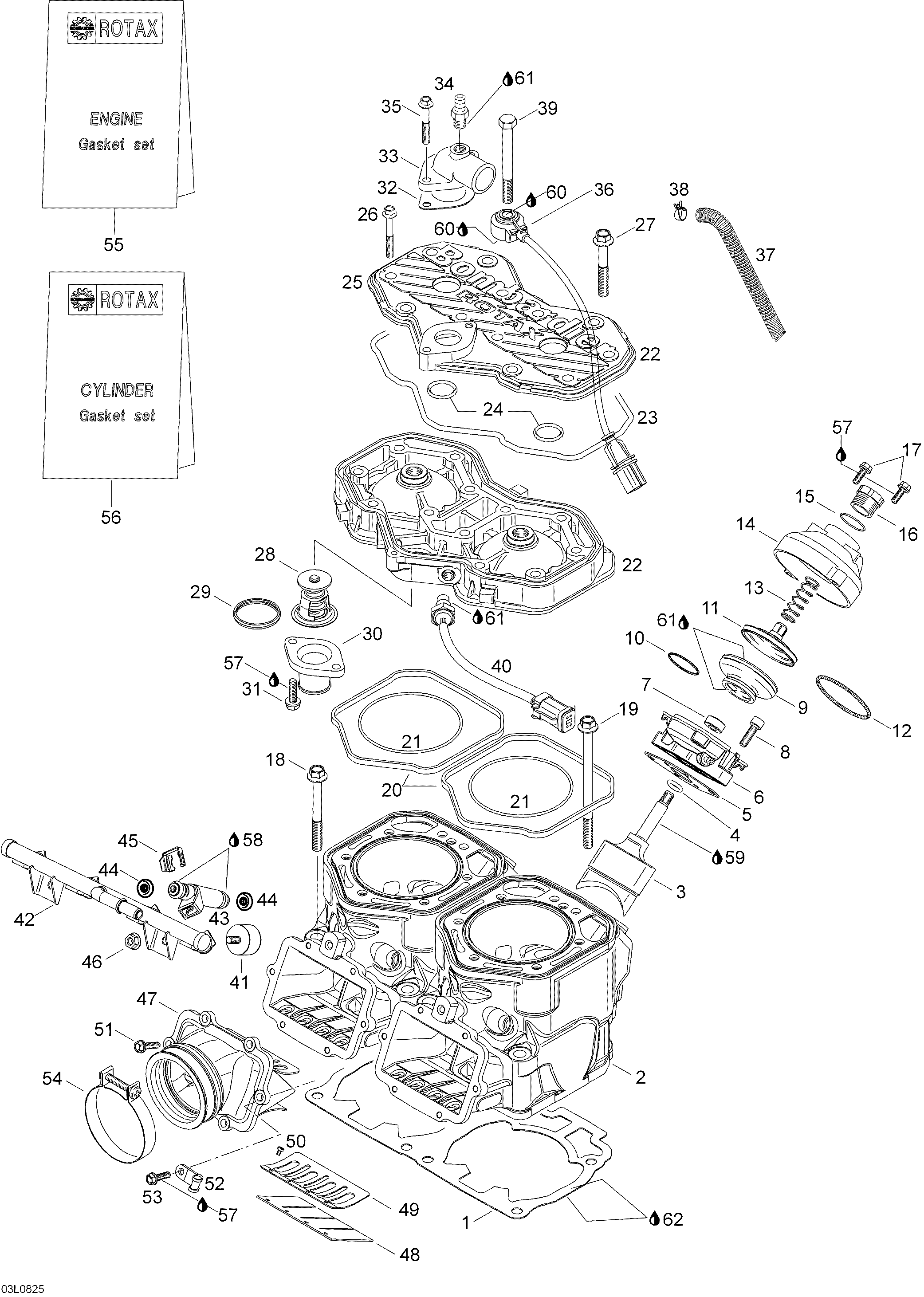

01- Cylinder And Cylinder Head для BRP Lynx Rave 600 HO SDI - 2008
-
№АртикулНазвание
-
1420931893 Base gasket 0.5 mmBase gasket 0.5 mm
-
1420931892 Base gasket 0.6 mmBase gasket 0.6 mm
-
1420931894 Base gasket 0.7 mmBase gasket 0.7 mm
-
1420931895 Base gasket 0.8 mmBase gasket 0.8 mm
-
2420613944 Cylinder with sleeveCylinder with sleeve
-
3420854650 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420931542 GasketGasket
-
6420854454 Valve rod housingValve rod housing
-
7420950730 Oil sealOil seal
-
8420840861 Socket head screw M6 x 25Socket head screw M6 x 25
-
9420260729 BellowsBellows
-
10420838255 Spring clampSpring clamp
-
11420854449 Exhaust valveExhaust valve
-
12420939280 Hose springHose spring
-
13420239942 Spring, blackSpring, black
-
14420911558 Valve coverValve cover
-
15420430220 O-ringO-ring
-
16420241221 Adjuster screwAdjuster screw
-
17420241270 Taptite screw M5 x 25Taptite screw M5 x 25
-
18420640524 Hex. screw M10 x 80Hex. screw M10 x 80
-
19420640534 Hex. screw M10 x 120Hex. screw M10 x 120
-
20420931590 Rubber ringRubber ring
-
21420850540 O-ringO-ring
-
22420613704 Cylinder head (silver)Cylinder head (silver)
-
23420950320 O-ringO-ring
-
24420430782 O-ringO-ring
-
25270000484 Cylinderhead cover (silver)Cylinderhead cover (silver)
-
26420841306 Hex. collar screw M8 x 65Hex. collar screw M8 x 65
-
27420941621 Hex. collar screw M8 x 56.5Hex. collar screw M8 x 56.5
-
28420922519 ThermostatThermostat
-
29420931272 Sealing ringSealing ring
-
30420922025 Bent outlet socketBent outlet socket
-
31420941250 Taptite screw M6 x 20Taptite screw M6 x 20
-
32420850338 GasketGasket
-
33420922062 Bent outlet socketBent outlet socket
-
34420822340 Hose nippleHose nipple
-
35420941451 Hex. Collar screw M6 x 40Hex. Collar screw M6 x 40
-
36420664035 Knock sensorKnock sensor
-
37420460010 Corrugated tubeCorrugated tube
-
38420960890 ClipClip
-
39420941221 Hex. screw M8 x 80Hex. screw M8 x 80
-
40420664500 Temperature sensorTemperature sensor
-
41420960065 Rubber bufferRubber buffer
-
42420874490 Fuel railFuel rail
-
43420874485 Fuel injectorFuel injector
-
44420631220 O-ringO-ring
-
45420851800 ClipClip
-
46420442172 Elastic stop nut M6Elastic stop nut M6
-
47420867260 Reed vale ass'y. Includes 47 to 50Reed vale ass'y. Includes 47 to 50
-
48420924680 Pedal reedPedal reed
-
49420924695 Reed pedal stopReed pedal stop
-
50420941215 Screw M3 x 5Screw M3 x 5
-
51420941925 Screw M5 x 16Screw M5 x 16
-
52420851115 ClampClamp
-
53420841550 Taptite screw M5 x 22Taptite screw M5 x 22
-
54420851065 ClampClamp
-
55420889922 Engine gasket setEngine gasket set
-
56420889926 Cylinder gasket setCylinder gasket set
-
57293800060 Loctite 243, 10mlLoctite 243, 10ml
-
59413802900 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
-
60293800081 Loctite 5910, 300mlLoctite 5910, 300ml
-
61420297906 Sealing compound, 30mlSealing compound, 30ml
-
62293800038 Loctite 518, 50mlLoctite 518, 50ml
