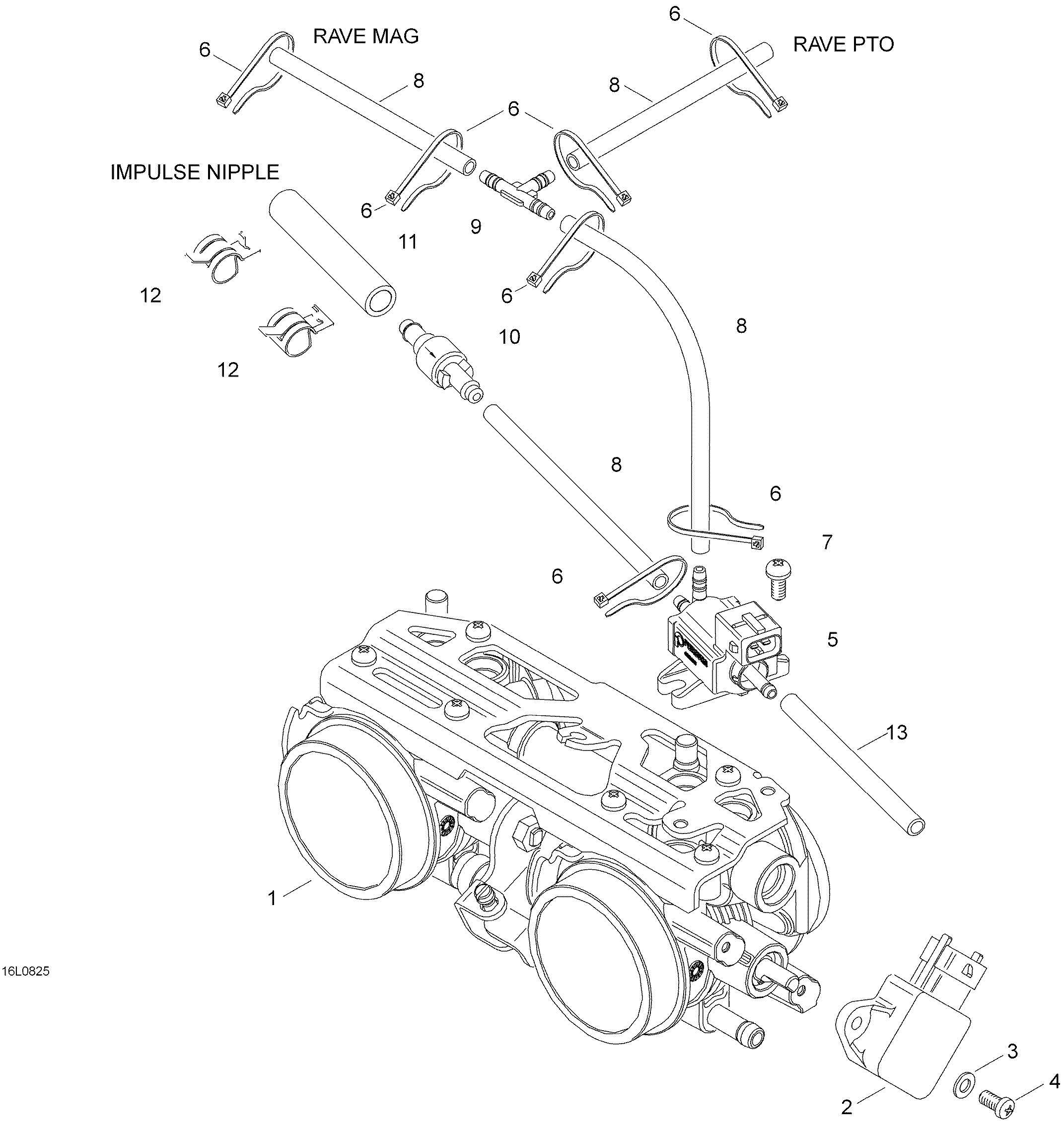

02- Throttle Body для BRP Lynx Rave 600 HO SDI - 2008
-
№АртикулНазвание
-
1420889196 Throttle bodyThrottle body
-
2270000251 Throttle sensorThrottle sensor
-
3234041600 WasherWasher
-
4208641660 Screw M4 x 16Screw M4 x 16
-
5420664630 Solenoid valveSolenoid valve
-
6420866718 Tie rapTie rap
-
7420940011 Screw M5 x 10Screw M5 x 10
-
8420660571 Air hose, 180 mmAir hose, 180 mm
-
9420660550 T-fittingT-fitting
-
10420660540 Check valveCheck valve
-
11420660562 Pressure line 160mmPressure line 160mm
-
12420853510 ClampClamp
-
13420660571 Pressure line 180mmPressure line 180mm
