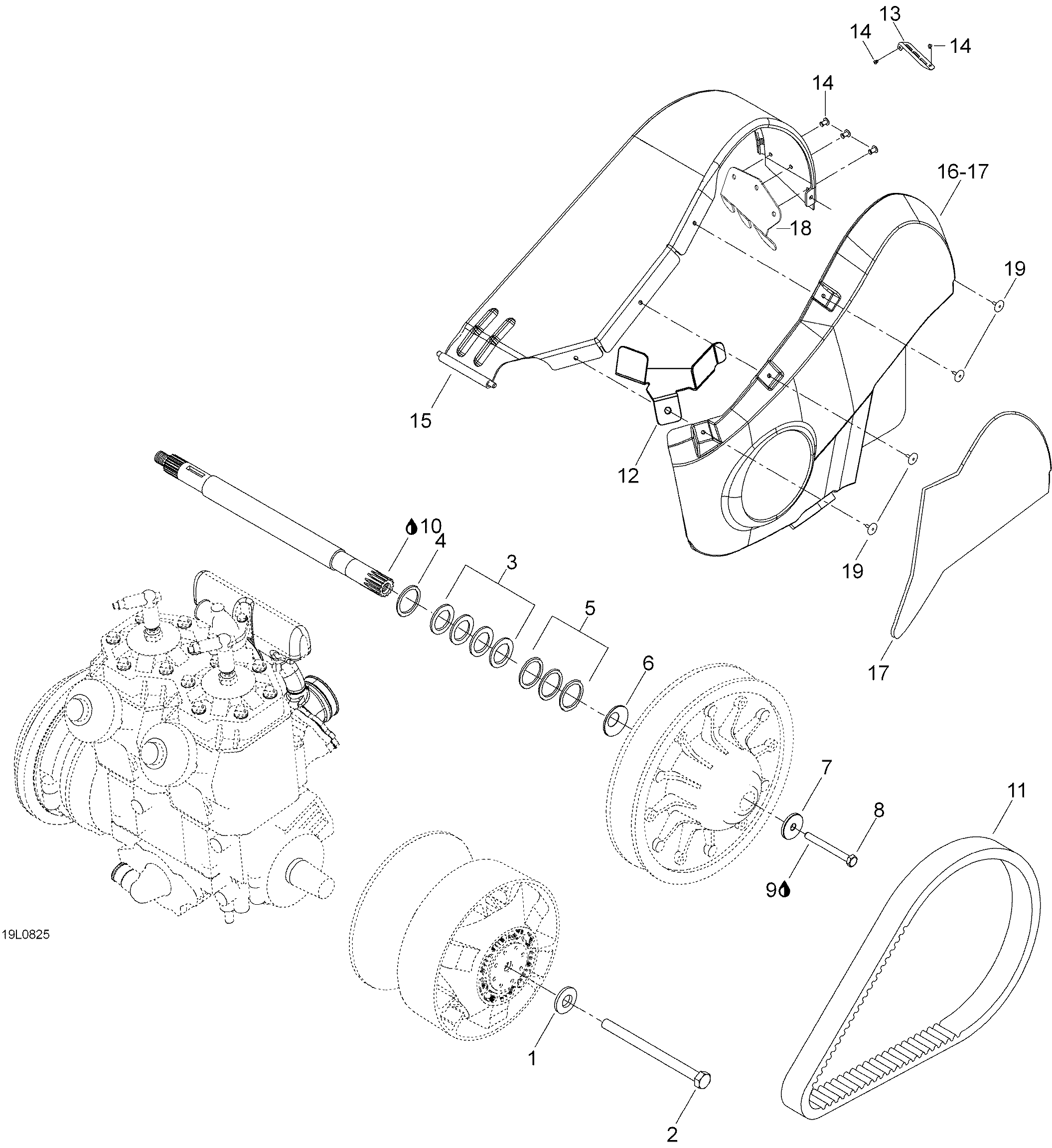

05- Pulley System для BRP Lynx Rave 600 HO SDI - 2008
-
№АртикулНазвание
-
120110 Strenght washerStrenght washer
-
2417120000 Drive pulley boltDrive pulley bolt
-
3417300252 SpacerSpacer
-
4417300265 ShimShim
-
5504112000 ShimShim
-
6417300238 ProtectorProtector
-
7517302322 Strenght washerStrenght washer
-
840264 Hex. screw M8 x 90Hex. screw M8 x 90
-
9293800060 Loctite 243, 10mlLoctite 243, 10ml
-
10293800070 Loctite 767, 8ozLoctite 767, 8oz
-
11417300197 Drive beltDrive belt
-
12605352707 Support, air intake silencerSupport, air intake silencer
-
13518323105 PlatePlate
-
1436108 RivetRivet
-
15417300213 Belt quardBelt quard
-
16417300301 Side protector ass'y. Includes 16 to 17Side protector ass'y. Includes 16 to 17
-
17417300246 FoamFoam
-
18605453799 BracketBracket
-
1936036 RivetRivet
