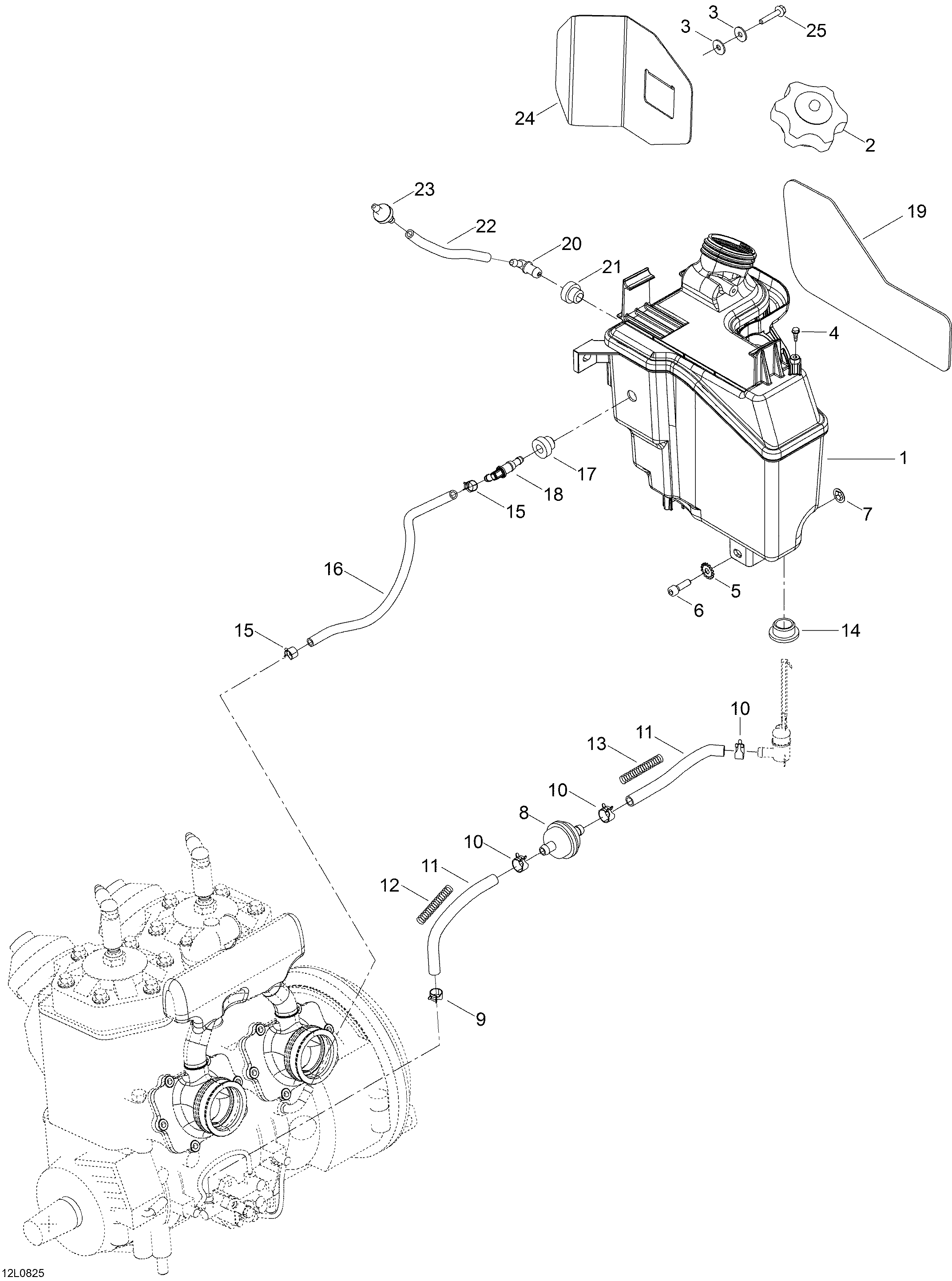

02- Oil Tank And Support для BRP Lynx Rave 600 HO SDI - 2008
-
№АртикулНазвание
-
1519000111 Oil tankOil tank
-
2519000033 CaoCao
-
320009 Washer A6,4Washer A6,4
-
440870 Self tapping screwSelf tapping screw
-
520017 Serrated lock washer 6mmSerrated lock washer 6mm
-
640052 Socket head screw M6 x 20Socket head screw M6 x 20
-
7732610072 Nut PushNut Push
-
8414536500 Oil filterOil filter
-
9414420700 ClampClamp
-
10414415200 ClampClamp
-
1139046 HoseHose
-
12519000064 SpringSpring
-
13519000065 SpringSpring
-
14570023000 Insulated ringInsulated ring
-
15414554800 ClampClamp
-
16415080200 HoseHose
-
17570135100 GrommetGrommet
-
18414580700 Male connectorMale connector
-
19519000054 Reflective sheetReflective sheet
-
20414580700 Male connectorMale connector
-
21513032908 GrommetGrommet
-
22415080200 HoseHose
-
23275500398 Check valveCheck valve
-
24605352865 Heat shieldHeat shield
-
2540029 Hex. screw M6 x 16Hex. screw M6 x 16
