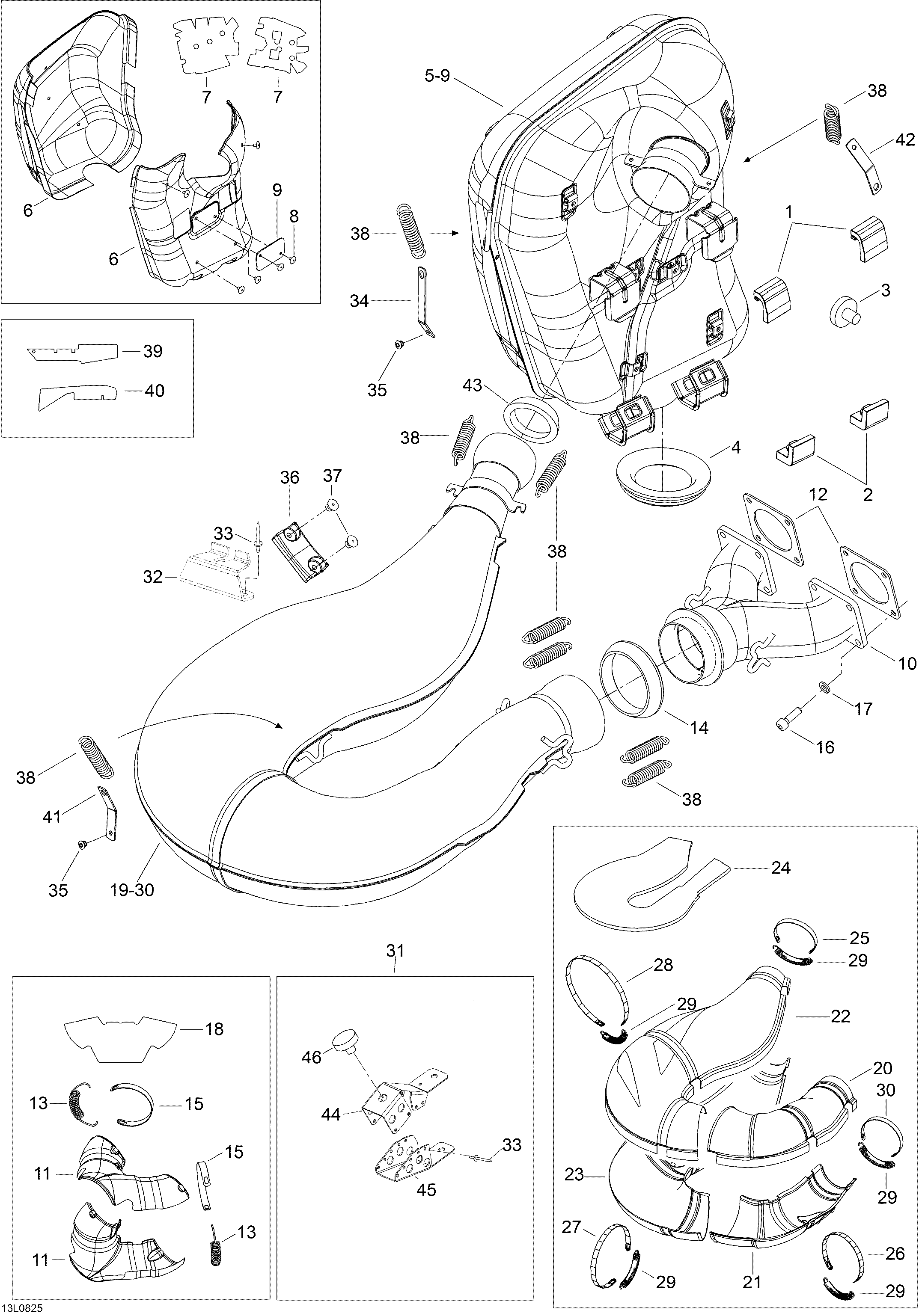

01- Exhaust System для BRP Lynx Rave 600 HO SDI - 2008
-
№АртикулНазвание
-
1514053372 Upper stopperUpper stopper
-
2514054223 Lower stopperLower stopper
-
3514053654 Rubber bumperRubber bumper
-
4514053394 Exhaust grommetExhaust grommet
-
5514054125 Muffler ass'y. Includes 5 to 9Muffler ass'y. Includes 5 to 9
-
6514054126 R.H. Heat shieldR.H. Heat shield
-
6514053585 L.H. Heat shieldL.H. Heat shield
-
7514053590 L.H. insulating woolL.H. insulating wool
-
7514053589 R.H. insulating woolR.H. insulating wool
-
8390910000 Pop RivetPop Rivet
-
9514053429 ReinforcementReinforcement
-
10420673072 Exhaust manifoldExhaust manifold
-
11514053593 EnveloppeEnveloppe
-
12420850552 GasketGasket
-
13514053643 SpringSpring
-
14514053487 GasketGasket
-
15514053603 Retaining strapRetaining strap
-
1640052 Socket head screw M6 x 20Socket head screw M6 x 20
-
17605620001 Lock washer 8mmLock washer 8mm
-
18514053588 Insulating woolInsulating wool
-
19514053971 Tuned pipe ass'y. Includes 19 to 30Tuned pipe ass'y. Includes 19 to 30
-
20514053609 Upper front half enveloppeUpper front half enveloppe
-
21514053610 Lower front half enveloppeLower front half enveloppe
-
22514053951 Upper rear half enveloppeUpper rear half enveloppe
-
23514053996 Lower rear half enveloppeLower rear half enveloppe
-
24514053584 Insulating woolInsulating wool
-
25514053437 Retaining strapRetaining strap
-
26514053500 Retaining strapRetaining strap
-
27514053534 Retaining strapRetaining strap
-
28514053535 Retaining strapRetaining strap
-
29514053643 SpringSpring
-
30514053536 Retaining strapRetaining strap
-
31605355517 BracketBracket
-
32605454111 BracketBracket
-
3336108 RivetRivet
-
34605451629 Spring supportSpring support
-
3536489 RivetRivet
-
36514053352 BumperBumper
-
3736037 RivetRivet
-
38415107100 SpringSpring
-
39514053560 Reflection sheetReflection sheet
-
40514053622 Reflection sheetReflection sheet
-
41514053725 Spring bracketSpring bracket
-
42514053393 Spring bracketSpring bracket
-
43514053812 Exhaust gasketExhaust gasket
-
44605354926 Lower bracketLower bracket
-
45605255394 Upper bracketUpper bracket
-
46514053352 Rubber bumperRubber bumper
