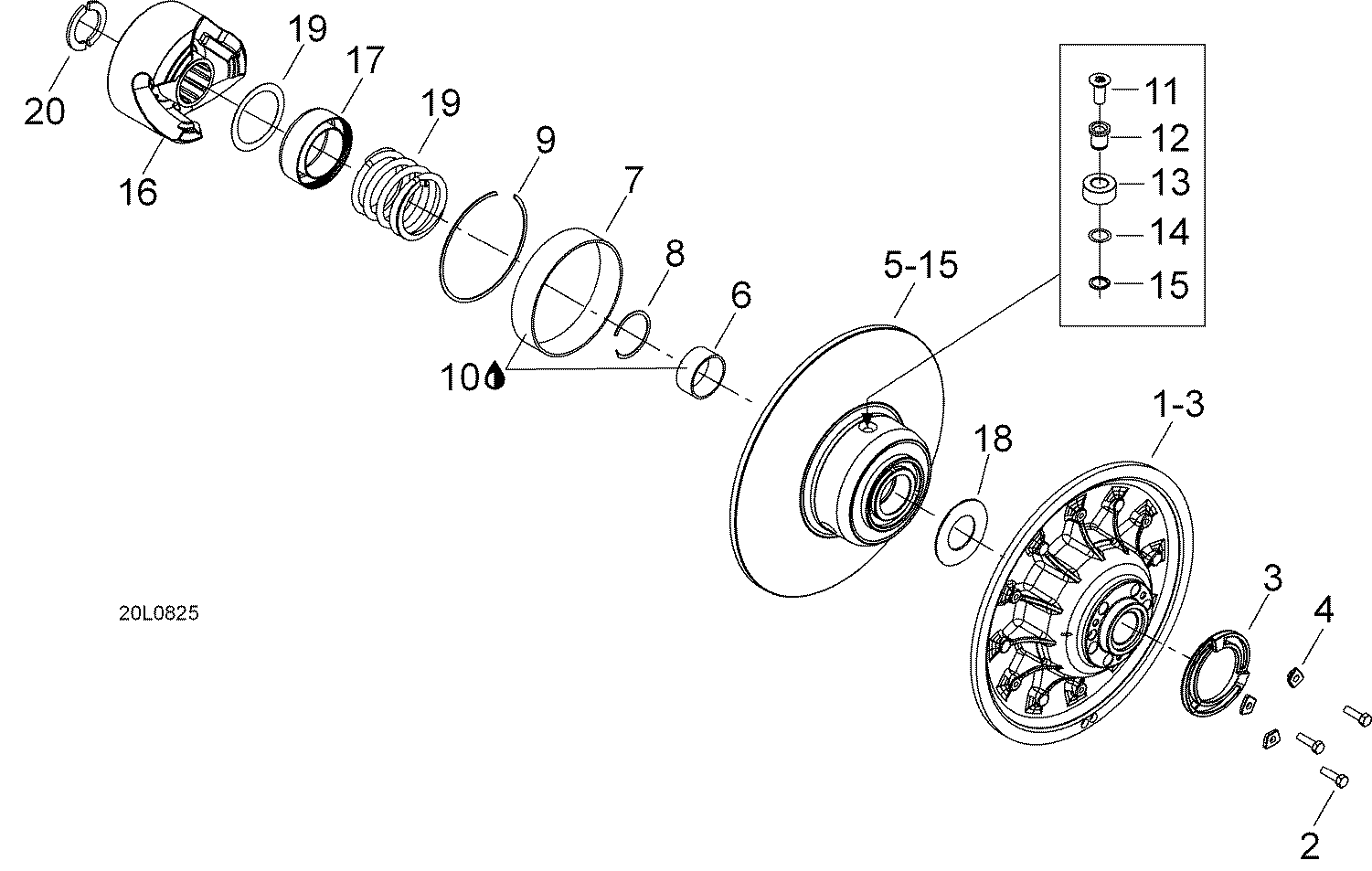

05- Driven pulley для BRP Lynx Rave 600 HO SDI - 2008
-
№АртикулНазвание
-
1417126807 Fixed half pulley assy. Innehaller delar 1-3Fixed half pulley assy. Innehaller delar 1-3
-
2207162544 Screw M6x25Screw M6x25
-
2207162244 Screw M6x22Screw M6x22
-
3415005800 Ring-adjustmentRing-adjustment
-
4415005900 Shim-adjustmentShim-adjustment
-
5417127014 Sliding pulley ass'y. Innehaller delar 5-15Sliding pulley ass'y. Innehaller delar 5-15
-
6417126901 BushingBushing
-
7417126902 BushingBushing
-
8371911200 CirclipCirclip
-
9417126878 CirclipCirclip
-
10413408300 Loctite, black Max, 3 mlLoctite, black Max, 3 ml
-
11235382046 Torx-screw M8 x 20Torx-screw M8 x 20
-
12417127015 StudStud
-
13417126892 RollerRoller
-
14417126823 CirclipCirclip
-
15417126797 WasherWasher
-
16417126967 Cam (44)Cam (44)
-
17417126381 ProtectorProtector
-
18504099600 Stopper washerStopper washer
-
19417126687 Spring, svartSpring, svart
-
20417126734 Half keyHalf key
-
19417126322 SwivelSwivel
