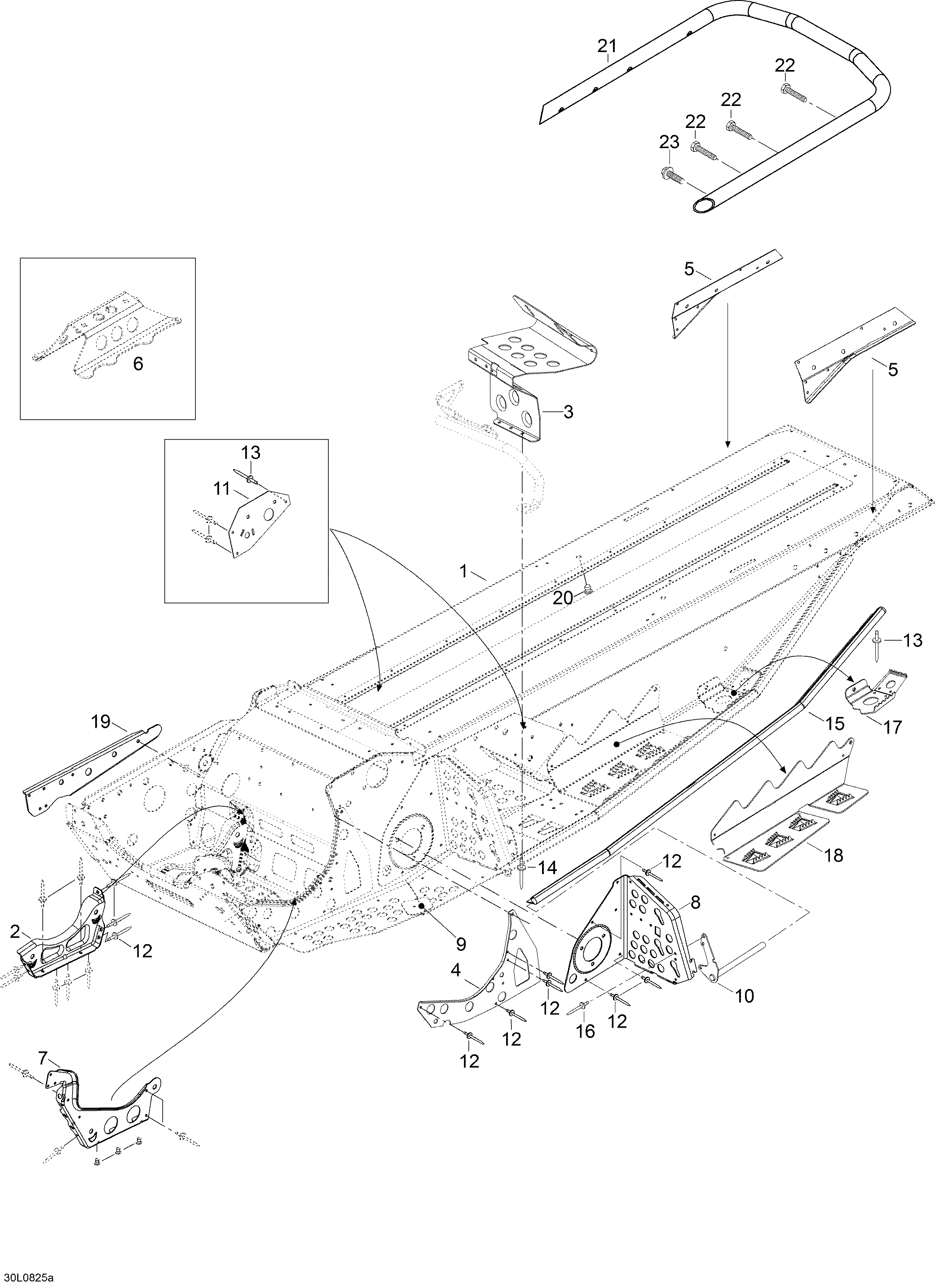

09- Frame для BRP Lynx Rave 600 HO SDI - 2008
-
№АртикулНазвание
-
1605155714 Frame ass'y. Includes 1 to 23Frame ass'y. Includes 1 to 23
-
2518323346 StiffenerStiffener
-
3605353980 R.H. Toe holdR.H. Toe hold
-
3605353981 L.H. Toe holdL.H. Toe hold
-
4605350345 Inner reinforcementInner reinforcement
-
5605353848 L.H. reinforcement, rearL.H. reinforcement, rear
-
5605353849 R.H. reinforcement, rearR.H. reinforcement, rear
-
6518324093 Cross linkCross link
-
7605451826 Engine supportEngine support
-
8518323805 R.H. footrest reinforcementR.H. footrest reinforcement
-
8518324527 L.H. footrest reinforcementL.H. footrest reinforcement
-
9605451590 Rivet plateRivet plate
-
10605453453 L.H. Support plateL.H. Support plate
-
10605453454 R.H. Support plateR.H. Support plate
-
1236007 RivetRivet
-
1336108 RivetRivet
-
1436489 RivetRivet
-
15605353983 L.H. RollerL.H. Roller
-
15605353982 R.H. RollerR.H. Roller
-
1636006 RivetRivet
-
17605353945 L.H. SupportL.H. Support
-
17605353946 R.H. SupportR.H. Support
-
18605254123 L.H. footrest reinforcementL.H. footrest reinforcement
-
18605254124 R.H. footrest reinforcementR.H. footrest reinforcement
-
19605353544 StiffenerStiffener
-
20520000272 PlugPlug
-
21605353643 Rear bumperRear bumper
-
2240336 Screw M8 x 20Screw M8 x 20
-
23605640013 Screw M8 x 25, wulockScrew M8 x 25, wulock
