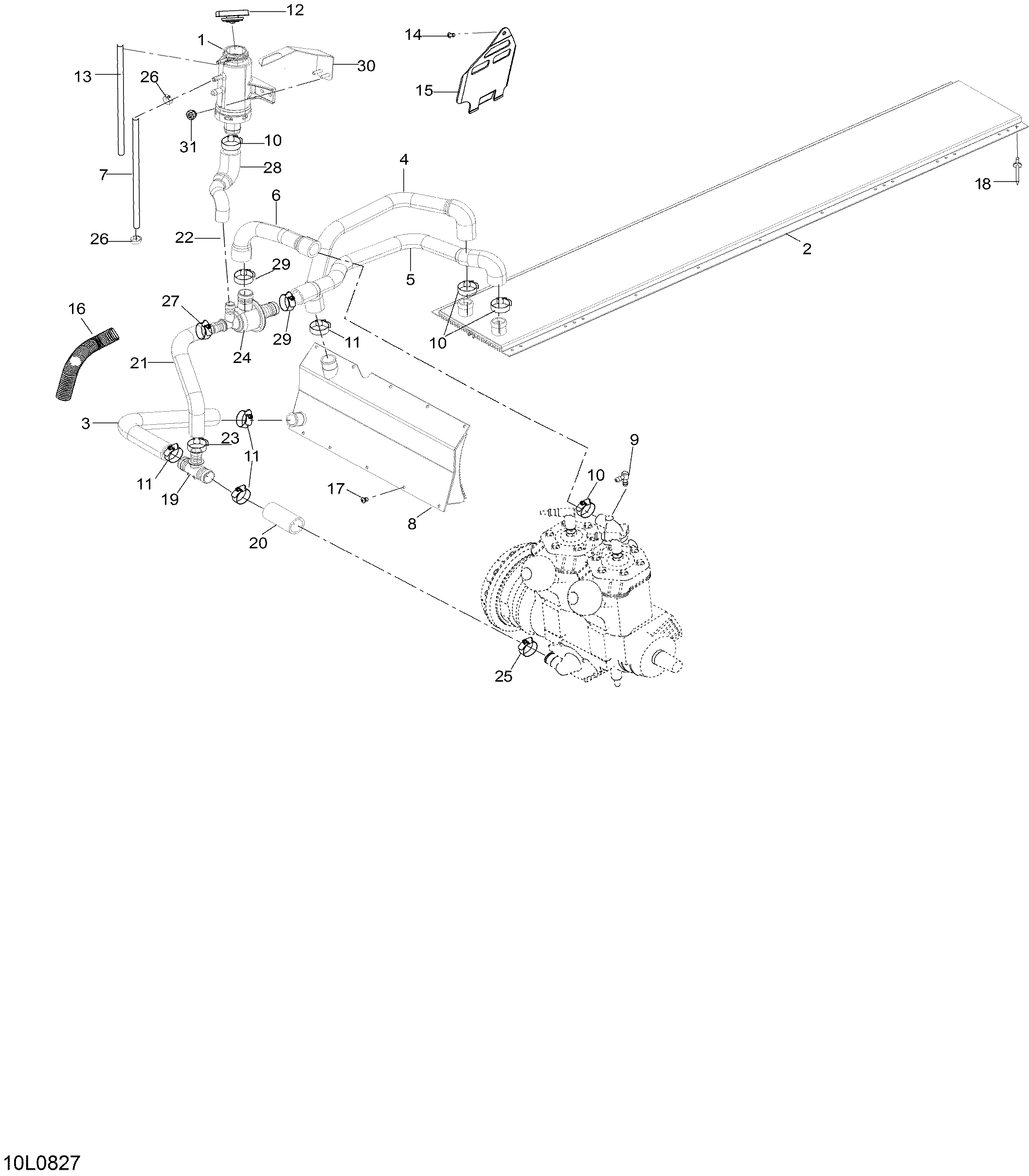

01- Cooling System для BRP Lynx Rave 800R PowerTEK - 2008
-
№АртикулНазвание
-
1509000176 Coolant tankCoolant tank
-
25246130 RadiatorRadiator
-
3605355794 HoseHose
-
4605355792 HoseHose
-
5605155811 HoseHose
-
6509000492 HoseHose
-
7509000093 HoseHose
-
8518323903 Radiator, frontRadiator, front
-
9293700045 FIitting-elbowFIitting-elbow
-
10408800400 ClampClamp
-
11509000181 ClampClamp
-
12509000187 Pressure capPressure cap
-
1339038 HoseHose
-
14241151640 Hex. flanged screw K50 x 16Hex. flanged screw K50 x 16
-
15509000257 DeflectorDeflector
-
1628036 TubingTubing
-
1736489 RivetRivet
-
1836088 RivetRivet
-
19509000372 T-fittingT-fitting
-
20605253695 HoseHose
-
21605355824 HoseHose
-
22509000442 ClampClamp
-
23509000443 ClampClamp
-
24509000499 Term.housingTerm.housing
-
25509000352 ClampClamp
-
26293650170 ClampClamp
-
27605627002 ClampClamp
-
28605355793 HoseHose
-
29509000045 ClampClamp
-
30605355825 Bottle support plateBottle support plate
-
3133200 NutNut
