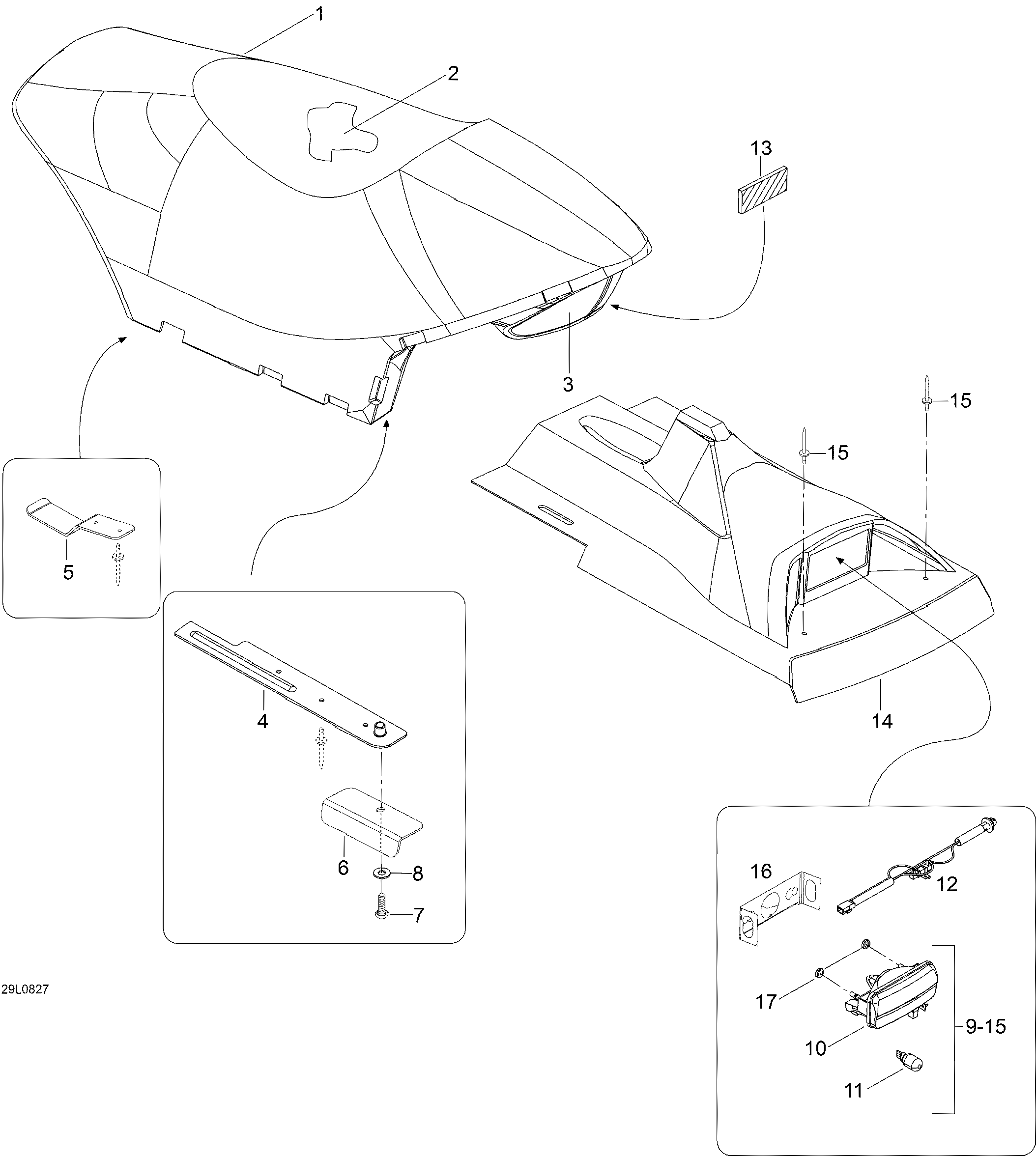

09- Seat для BRP Lynx Rave 800R PowerTEK - 2008
-
№АртикулНазвание
-
1605254894 CoverCover
-
2605253728 FoamFoam
-
3605253941 Seat baseSeat base
-
4605355222 R.H. BracketR.H. Bracket
-
4605355223 L.H. BracketL.H. Bracket
-
5605354979 SupportSupport
-
6605452935 Support plateSupport plate
-
740386 Screw M8 x 30Screw M8 x 30
-
820014 Lock washer A8Lock washer A8
-
9511000446 Tail lamp ass'y. Includes 9 to 12Tail lamp ass'y. Includes 9 to 12
-
10710000652 Lens boxLens box
-
11710000653 Tail lamp bulpTail lamp bulp
-
12605353264 Wiring harnessWiring harness
-
1321126 ReflectorReflector
-
14605253996 Cover, tunnelCover, tunnel
-
1536036 RivetRivet
-
16605353801 BracketBracket
-
17705001119 WasherWasher
