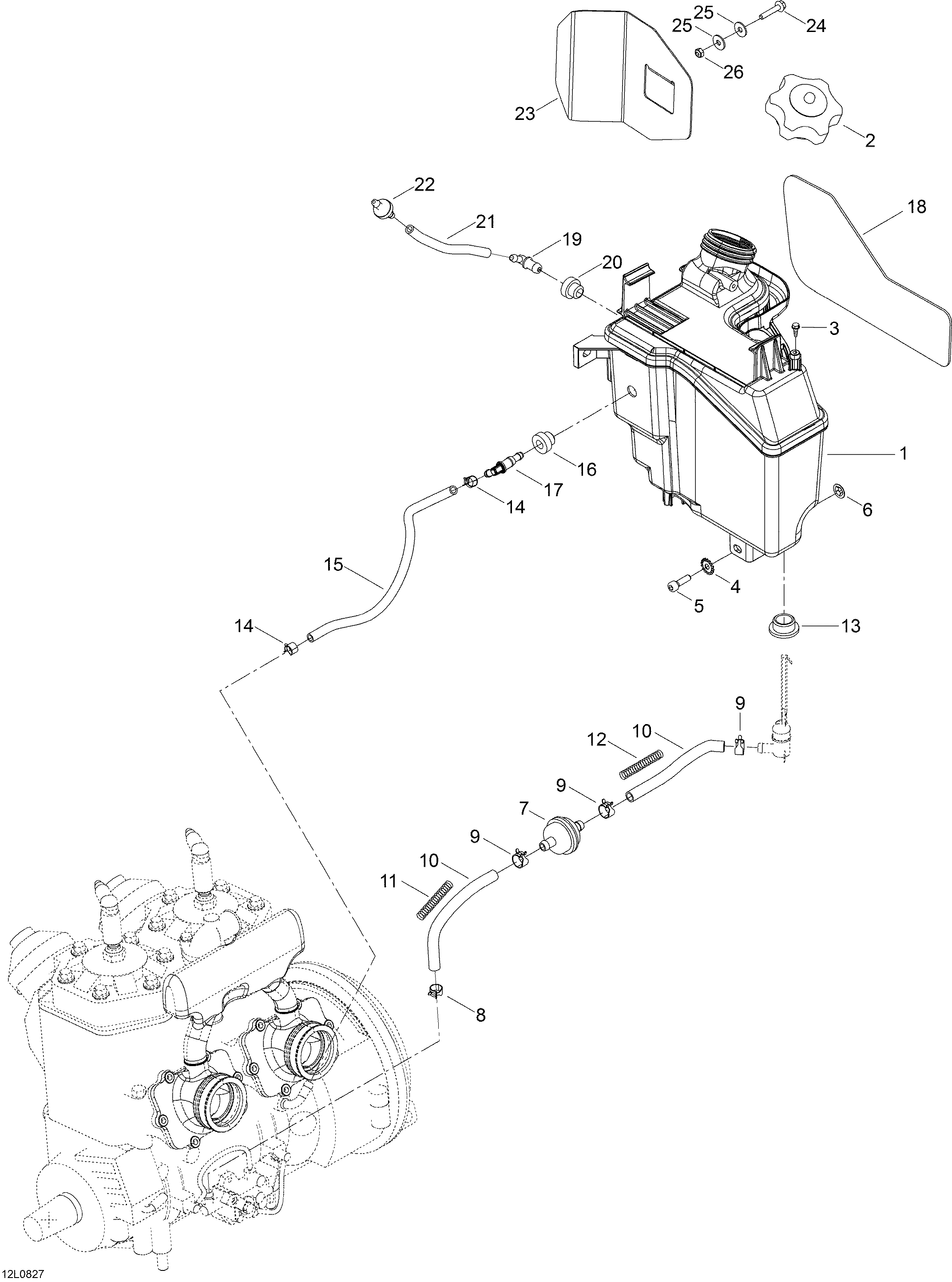

02- Oil Tank And Support для BRP Lynx Rave 800R PowerTEK - 2008
-
№АртикулНазвание
-
1519000111 Oil tankOil tank
-
2519000033 CapCap
-
340870 Self tapping screwSelf tapping screw
-
420017 Serrated lock washer 6mmSerrated lock washer 6mm
-
540052 Socket head screw M6 x 20Socket head screw M6 x 20
-
6732610072 Nut PushNut Push
-
7414536500 Oil filterOil filter
-
8414420700 ClampClamp
-
9414415200 ClampClamp
-
1039046 HoseHose
-
11519000064 SpringSpring
-
12519000065 SpringSpring
-
13570023000 Insulated ringInsulated ring
-
14414554800 ClampClamp
-
15415080200 HoseHose
-
16570135100 GrommetGrommet
-
17414580700 Male connectorMale connector
-
18519000054 Reflective sheetReflective sheet
-
19414580700 Male connectorMale connector
-
20513032908 GrommetGrommet
-
21415080200 HoseHose
-
22275500398 Check valveCheck valve
-
23605352865 Heat shieldHeat shield
-
2440029 Hex. screw M6 x 16Hex. screw M6 x 16
-
2520009 Washer A6,4Washer A6,4
-
2633010 Elastic stop nut M6Elastic stop nut M6
