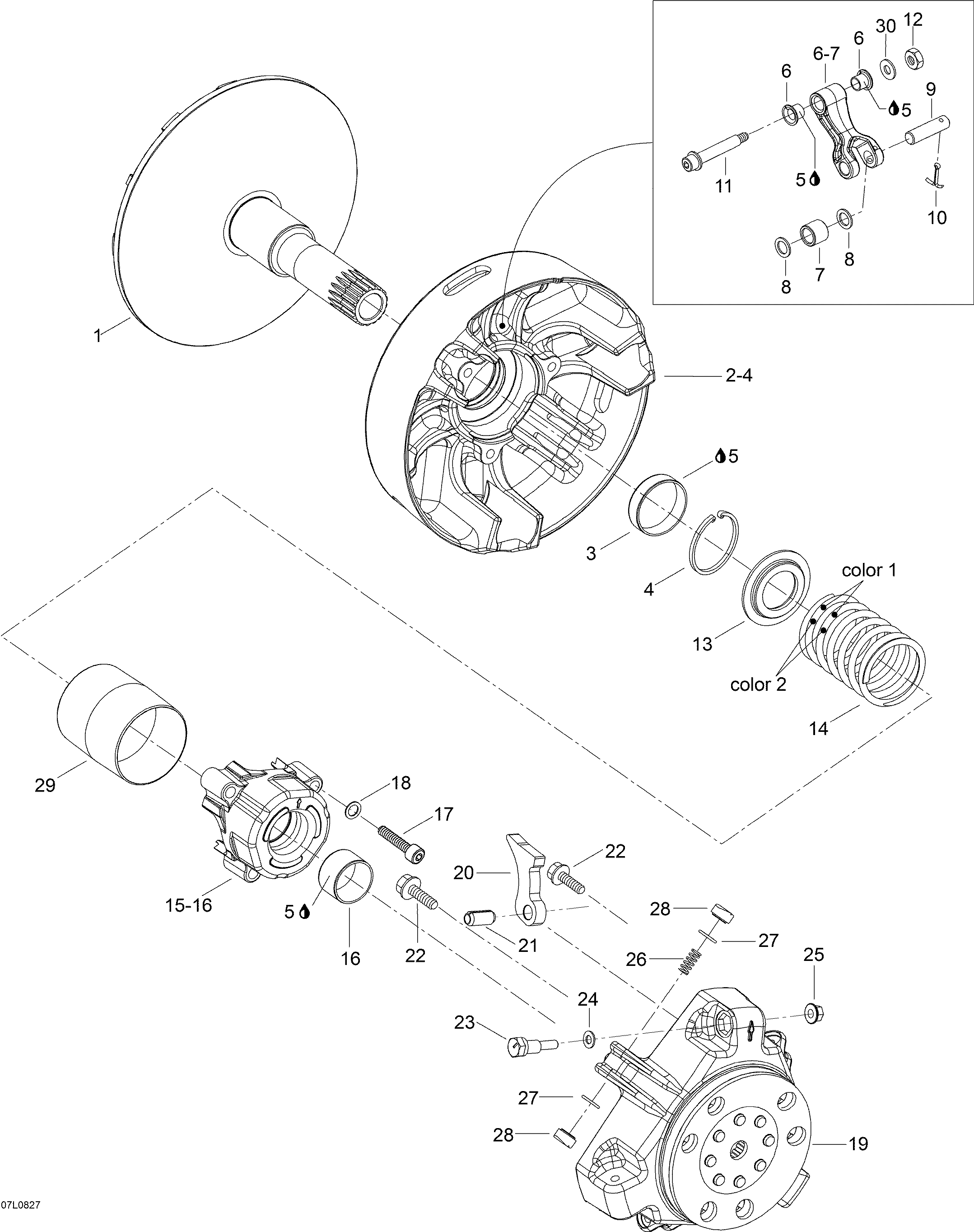

05- Drive Pulley для BRP Lynx Rave 800R PowerTEK - 2008
-
№АртикулНазвание
-
1417222970 Fixe flangeFixe flange
-
2417223093 Sliding flange. Includes 2 to 4Sliding flange. Includes 2 to 4
-
3417006900 Bushing outer halfBushing outer half
-
4293370037 CirclipCirclip
-
5413703100 Loctite 609Loctite 609
-
-417222671 Lever assy. Includes 6 to 7Lever assy. Includes 6 to 7
-
6417222633 Flange bushingFlange bushing
-
7417003900 Roller ass'yRoller ass'y
-
8417004302 Thrust washerThrust washer
-
9417222594 PinPin
-
10732958001 Cotter pinCotter pin
-
11417222028 ScrewScrew
-
12232561414 Nut M6Nut M6
-
13417222312 Spring seatSpring seat
-
14414817900 Spring, Purple/purpleSpring, Purple/purple
-
15417222759 Spring cover ass'y. Includes 15 to 16Spring cover ass'y. Includes 15 to 16
-
16417009204 Spring cover bushingSpring cover bushing
-
17205084044 Socket head screw M6 x 40Socket head screw M6 x 40
-
18250200009 WasherWasher
-
19417222634 Gouvernor cup ass'yGouvernor cup ass'y
-
20417222548 Ramp 415Ramp 415
-
21250400009 Dowel tube M8x24Dowel tube M8x24
-
22250000059 Hex. locking screw M6 x 18Hex. locking screw M6 x 18
-
23417222955 Calibration screwCalibration screw
-
24417005600 WasherWasher
-
25233061414 Locking nut M6Locking nut M6
-
26417005700 SpringSpring
-
27732401030 O-RingO-Ring
-
28417222362 Shoe sliderShoe slider
-
29417009205 ProtectorProtector
-
30234061410 WasherWasher
