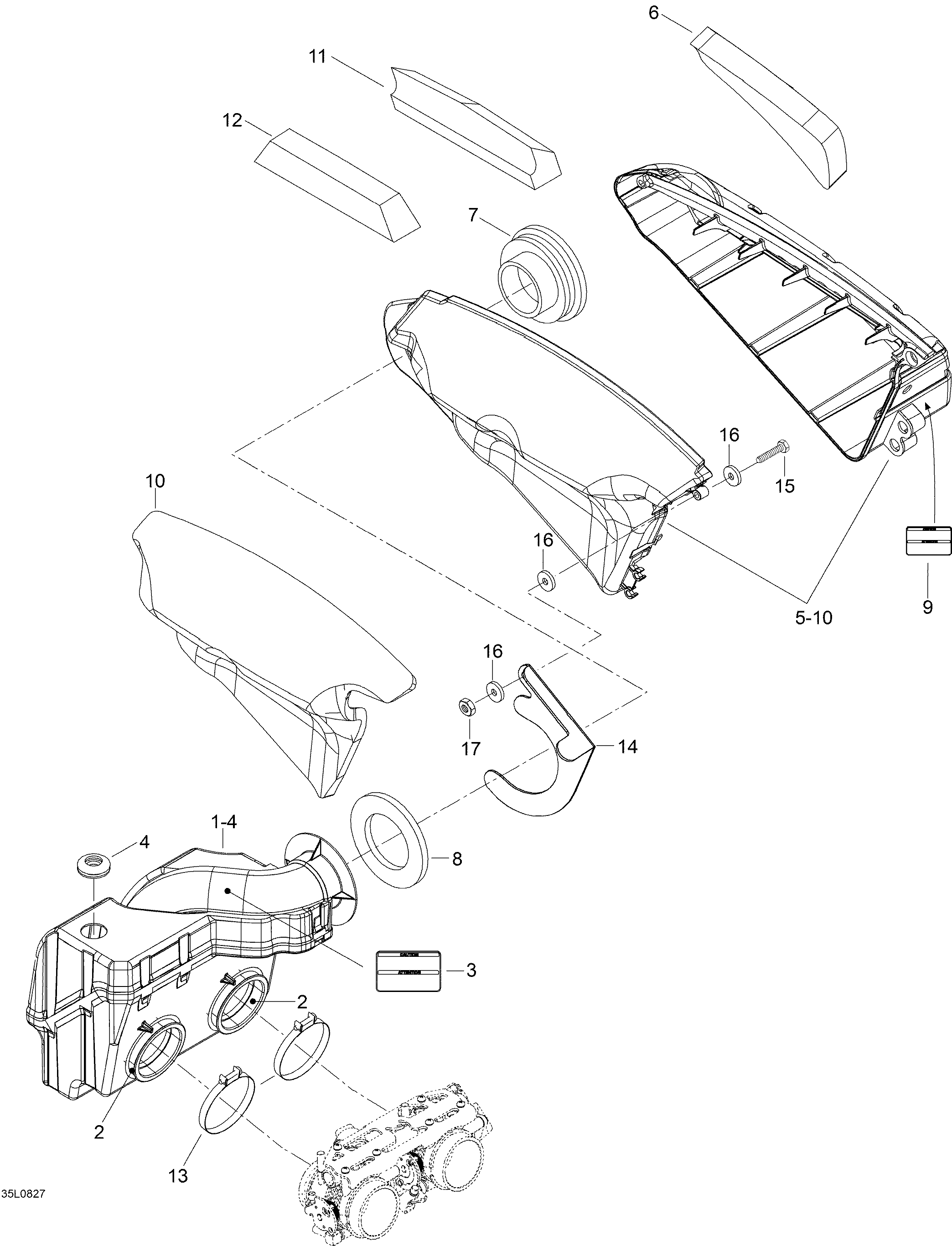

02- Air Silencer для BRP Lynx Rave 800R PowerTEK - 2008
-
№АртикулНазвание
-
1508000511 Primary chamber ass'y. Includes 1 to 4Primary chamber ass'y. Includes 1 to 4
-
2508000132 Air intake adaptorAir intake adaptor
-
3516002715 Caution labelCaution label
-
4570065500 GrommetGrommet
-
5508000512 Secondary chamber ass'y. Includes 5 to 10Secondary chamber ass'y. Includes 5 to 10
-
6508000145 Inner foamInner foam
-
7508000240 GuideGuide
-
8508000199 Outer foamOuter foam
-
9516001191 Caution labelCaution label
-
10508000310 Outer foamOuter foam
-
11508000394 Air filterAir filter
-
12605354029 Air filterAir filter
-
13508000346 ClampClamp
-
14605351817 BracketBracket
-
1540083 Hex. screw M6 x 30Hex. screw M6 x 30
-
1620003 Washer A6,4Washer A6,4
-
1733010 Elastic stop nut M6Elastic stop nut M6
