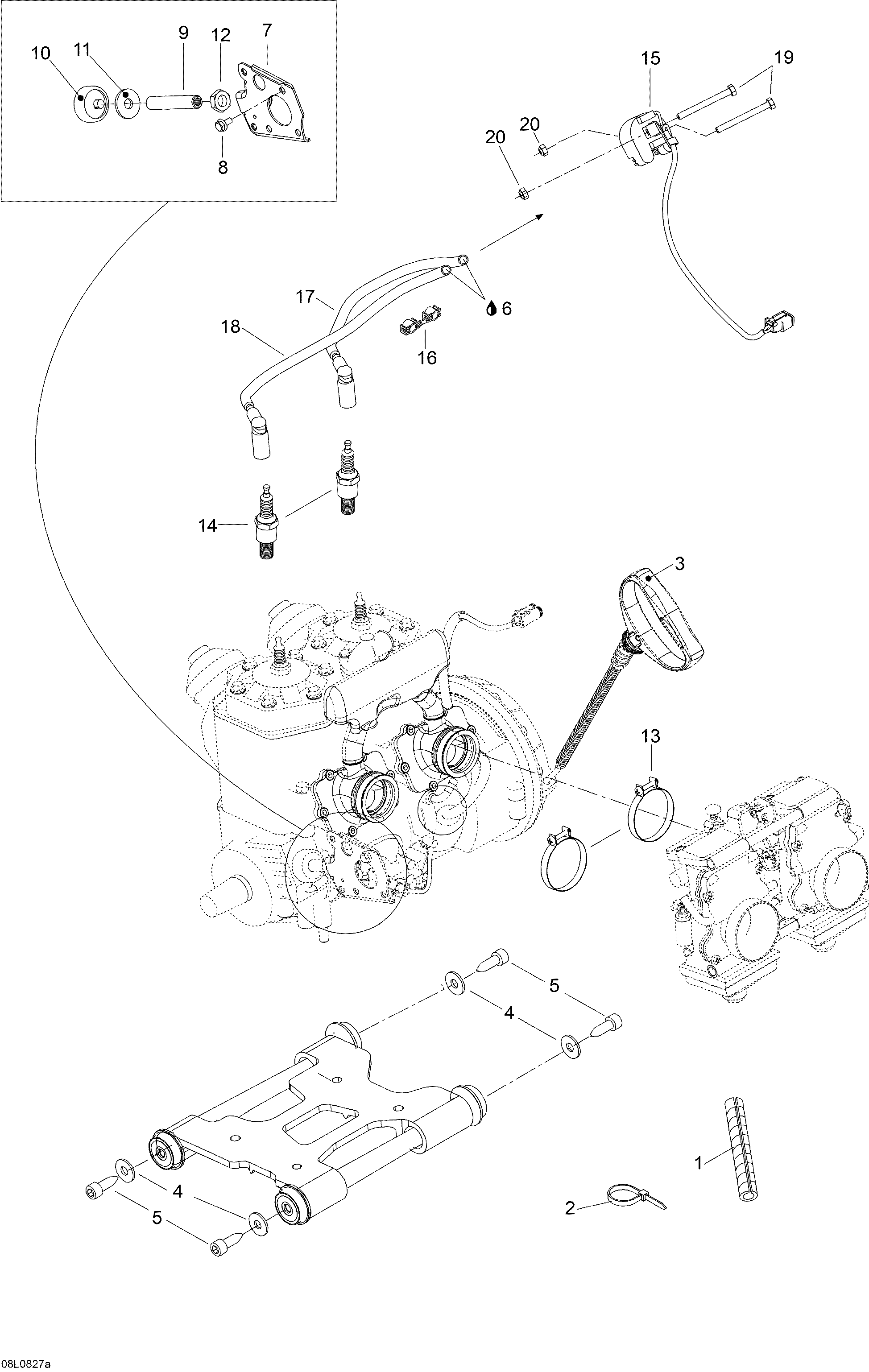

01- Engine And Engine Support для BRP Lynx Rave 800R PowerTEK - 2008
-
№АртикулНазвание
-
127127 TubeTube
-
227026 TierapTierap
-
4506151251 WasherWasher
-
5250000252 Screw M10 x 50Screw M10 x 50
-
7512059840 PlatePlate
-
840327 Hex. screw M6 x 12Hex. screw M6 x 12
-
9250500007 Stopper screwStopper screw
-
10512059610 StopperStopper
-
11512059057 WasherWasher
-
12232170411 Nut M14Nut M14
-
13605639003 HoseHose
-
13512059835 ClampClamp
-
14415128524 Spark plug BR9 ECSSpark plug BR9 ECS
-
15512059968 Ignition coilIgnition coil
-
16410914600 Plastic clipPlastic clip
-
17512059695 Ignition cable, 300 mmIgnition cable, 300 mm
-
18512059696 Ignition cable, 375 mmIgnition cable, 375 mm
-
1940084 Screw M6 x 45Screw M6 x 45
-
2033200 Elastic stop nut M6Elastic stop nut M6
-
3572084400 GripGrip
-
6293550004 GreaseGrease
