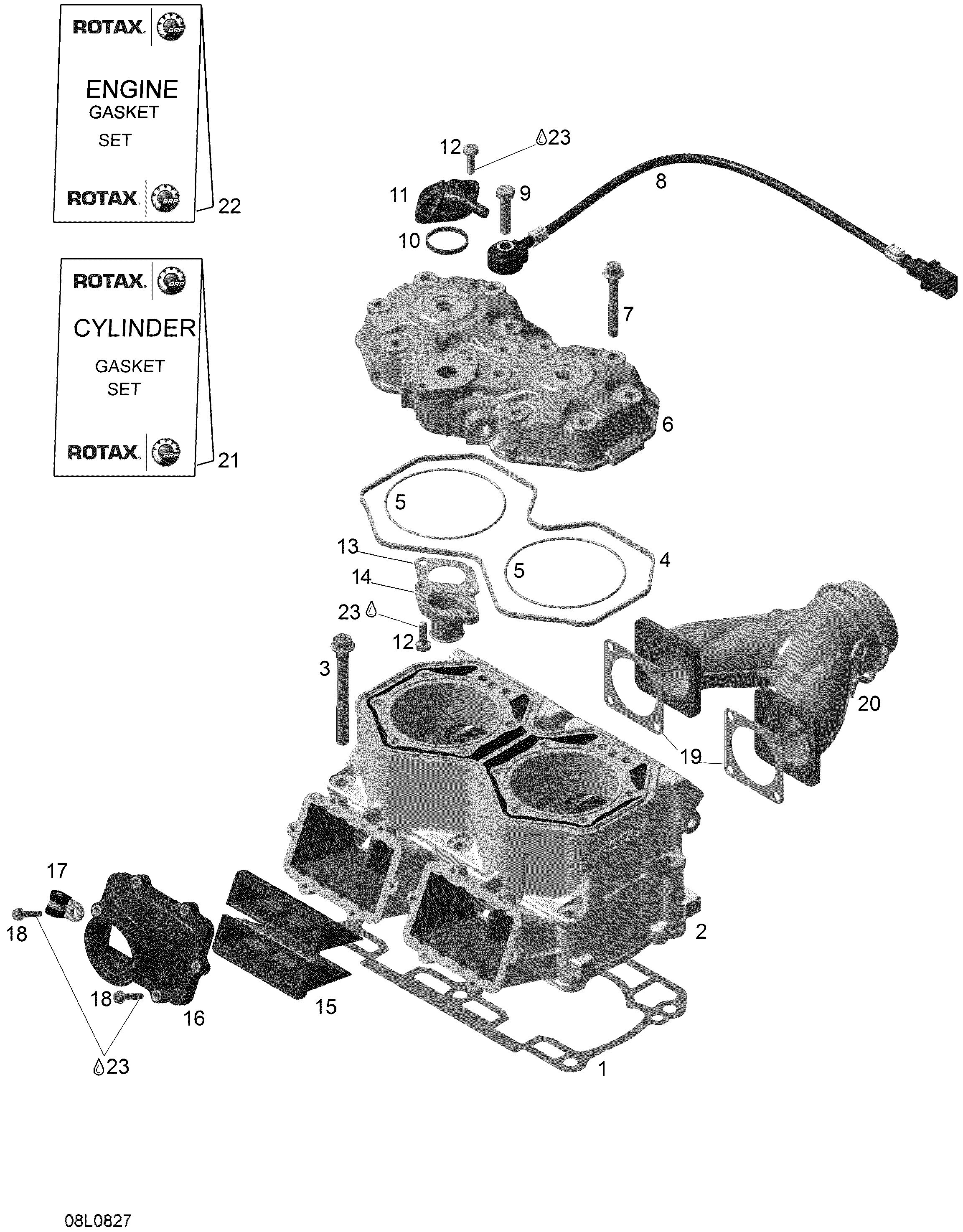

01- Cylinder And Cylinder Head для BRP Lynx Rave 800R PowerTEK - 2008
-
№АртикулНазвание
-
1420430080 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420430081 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420430082 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420430083 Gasket, double 0.8 mmGasket, double 0.8 mm
-
2420623240 Cylinder, nicasilCylinder, nicasil
-
3420441187 Screw M10x90 Sw 13/T50Screw M10x90 Sw 13/T50
-
4420430040 O-ringO-ring
-
5420931410 O-ringO-ring
-
6420613925 CylinderheadCylinderhead
-
7420941627 Screw M8 x 56,5Screw M8 x 56,5
-
8420664035 Knock sensorKnock sensor
-
9420940491 Hex. Screw M8 x 35Hex. Screw M8 x 35
-
10420630780 Thermostat gasketThermostat gasket
-
11420822370 Bent outlet socketBent outlet socket
-
12420941256 Screw M6 x 20Screw M6 x 20
-
13420850338 GasketGasket
-
14420922025 Bent outlet socketBent outlet socket
-
15420924792 Reed valve assyReed valve assy
-
16420667109 Intake SocketIntake Socket
-
17420853412 ClampClamp
-
18420241270 Screw M5 x 25Screw M5 x 25
-
19420430480 GasketGasket
-
20420673370 Exhaust manifold assyExhaust manifold assy
-
21420892475 Gasket set, cylinderGasket set, cylinder
-
22420892470 Gasket set, engineGasket set, engine
-
23293800060 Loctite 243Loctite 243
